22ton Hydraulic Single Drum Road Roller Xs223 for Sale

Evangel Industrial (Shanghai) Co., Ltd.

Type：Road Roller
Working Method：Vibration
Axle：Biaxial Dual-Drum
Grinding Wheel Type：Slot Grind
Compaction Depth：35cm
Engine Type：Diesel Engine

Base Info

Model NO.：XS223
Travel Speed：35cm,s
Centrifugal Force：30.5KN
Certification：ISO 9001:2000, ISO 9001:2008
Condition：New
Color：Yellow
Operating Weight：22000kgs
Load Applied on Front Drum：15000kgs
Load Applied on Rear Wheels：7000kgs
Compacting Width：2130mm
Min. External Turning Radius：6500mm
Engine：Deutz Bf6m2012c
Transport Package：Nude Packing
Trademark：EVANGEL
Origin：China
Production Capacity：200units,Month

Description

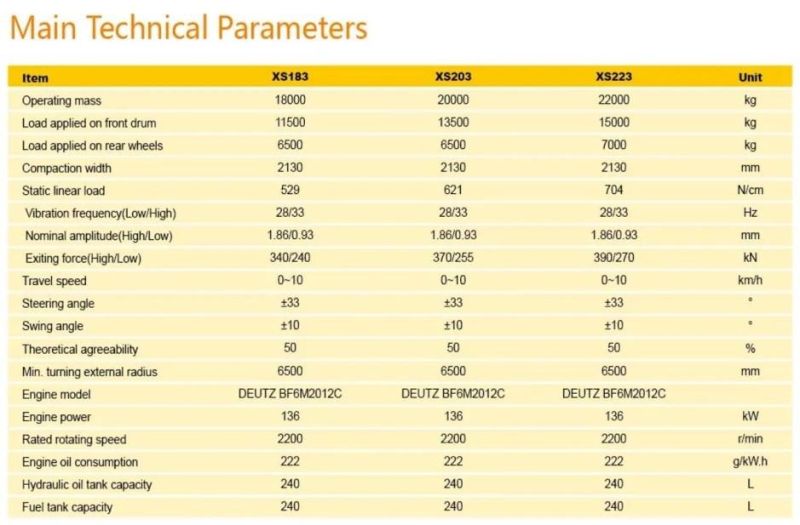

TypeUnitXS223Operating weightkg22000Load applied on front drumkg15000Load applied on rear wheelskg7000Compacting widthmm2130Static linear loadN/cm704Vibration frequency(Low/High)Hz28/33Nominal amplitude(High/Low)mm1.86/0.93Exiting force(High/Low)KN390/270Travel speedkm/h0~10Steering angle°±33Swing angle°±10Theoretical gradeability%50Min. external turning radiusmm6500Engine model DEUTZ BF6M2012CEngine powerkw136Rated engine speedr/min2200Engine oil consumptiong/kW.h222Hydraulic oil tank capacityL240Fuel tank capacityL240 22ton Hydraulic Single Drum Road Roller Xs223 for Sale

22ton Hydraulic Single Drum Road Roller Xs223 for Sale

22ton Hydraulic Single Drum Road Roller Xs223 for Sale

22ton Hydraulic Single Drum Road Roller Xs223 for Sale

22ton Hydraulic Single Drum Road Roller Xs223 for Sale

22ton Hydraulic Single Drum Road Roller Xs223 for Sale

22ton Hydraulic Single Drum Road Roller Xs223 for Sale

22ton Hydraulic Single Drum Road Roller Xs223 for Sale

22ton Hydraulic Single Drum Road Roller Xs223 for Sale
