• Model NO.：Xd123
• Travel Speed：30cm,s
• Certification：CS, ISO 9001:2000, ISO 9001:2008
• Condition：New
• Power：98kw
• Weight：12300kg
• Vibration Frequency：55,45Hz
• Rated Speed：2300r,Min
• Transport Package：Suitable for Ocean Shipment
• Origin：China
• HS Code：84294011
• Production Capacity：1000 Set Per Month

Basic Info.

Model NO. Xd123 Travel Speed 30cm/s Certification CS, ISO 9001:2000, ISO 9001:2008 Condition New Power 98kw Weight 12300kg Vibration Frequency 55/45Hz Rated Speed 2300r/Min Transport Package Suitable for Ocean Shipment Origin China HS Code 84294011 Production Capacity 1000 Set Per Month

Product Description

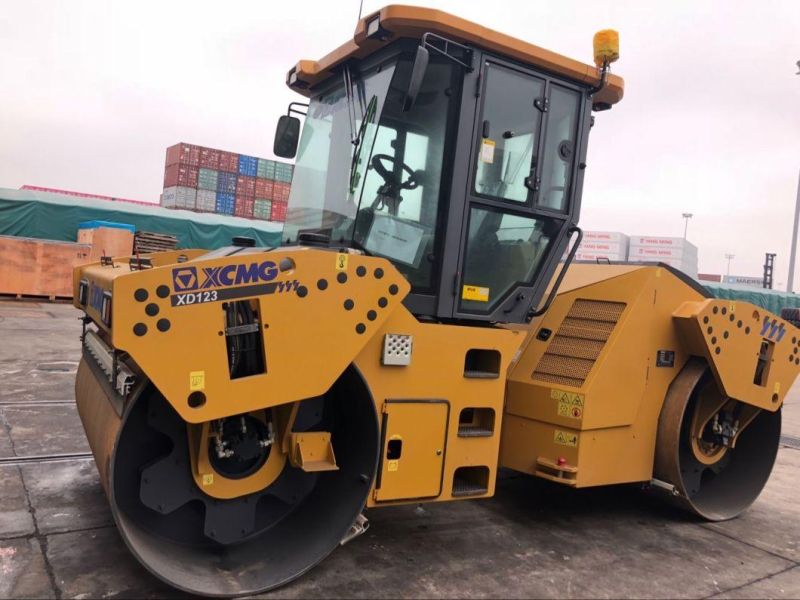

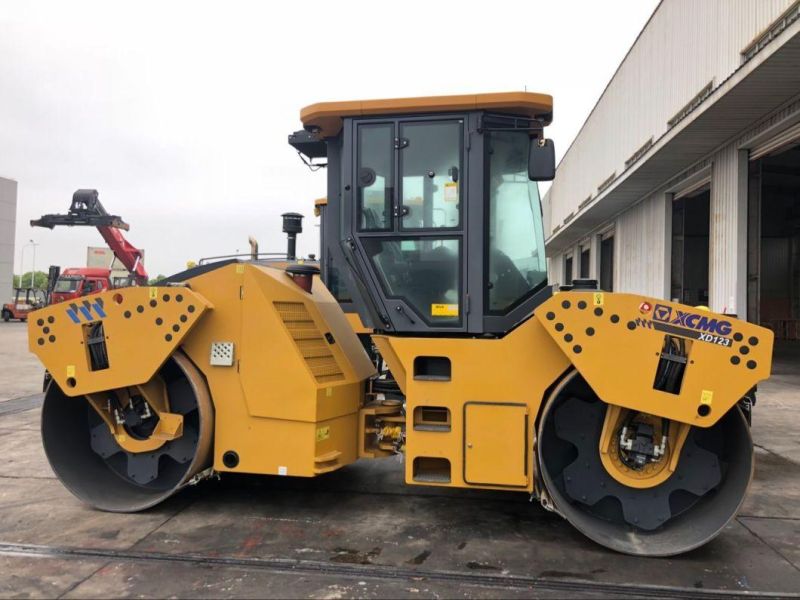

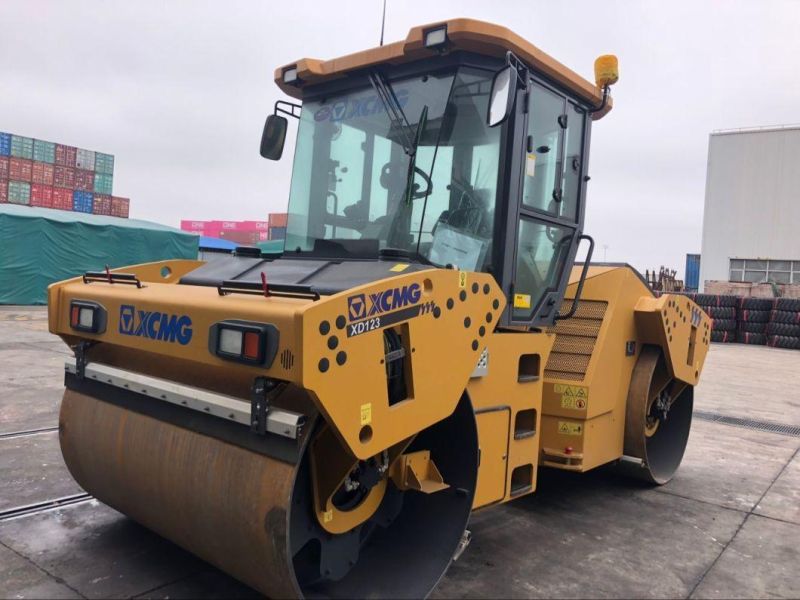

 Official Double Drum Road Roller Xd123 for Sale


Product Description

 XD123 vibratory roller is suitable for road compaction operations of roads, parking lots, airports and other large projects. It can also be used to compact roadbed and sub-base materials, and has a wide range of applications.

Parameter



Item	Unit	XD123
Operation weight	kg	12300
Front wheel distribution quality	kg	6200
Rear wheel distribution quality	kg	6100
Speed range	km/h	I GEAR 0-6 / IIgear0-8 / IIIgear0-12
Theoretical climbing ability	%	35
Minimum turning radius (inside / outside)	mm	4470/6600
The maximum amount of crab	mm	±160
swing angle	°	±8
Steering angle	°	±35
Static linear load	N/cm	297/297
Nominal amplitude	mm	0.30/0.80
Vibration frequency	Hz	50/67
Exciting force (high frequency)	kN	103/159
Model		DEUTZ BF4M1013-15T3R2
Rated power	kW	111
Rated speed	r/min	2100
system voltage	V	24
steering system	MPa	17.5
Oil filling pressure	MPa	2.4
driving system	MPa	42
Vibration system	MPa	33
Wheel pressure	L	40
Hydraulic tank	L	80
Engine oil	L	16
Fuel tank	L	240
water tank	L	1000
ambient temperature	ºC	-10ºC~+40ºC
Altitude	M	≤3000



Product Show
