• Model NO.：HB48-B-C-D
• Color：Red
• Transport Package：in Nude
• Specification：12515x2500x3995
• Origin：China
• HS Code：84294019
• Production Capacity：1000 Set Per Month

TravelCategoryItemUnitParameterParameterParameterChassisModel FMActros4141FY1EWVManufacturer VOLVOGermany BENZHinoMax. speedkm/h94.88585Max. gradeability 35%38%39.90%Min. turning diameterm24.60525.924.4Brake distancem≤10≤10≤10Wheelbasemm1995+4405+13701700+4600+13501850+4605+1310Tread (front/rear)mm2028/18372034/18042050/1855Approach angle/departure angle.17/1022/1018.2/10Min. clearancemm270300240Tyre specification 315/80R22.5315/80R22.5315/80R22.5EngineModel D13OM501LA./17E13CTLOutput powerkw/(r/min)294/1400~1800300/1800331/1800Max. torqueN.m/(r/min)2200/1050~14002000/10801912/1100Displacementl12.811.94612.913Emission Standard Nation III GBNation III GBNation III GBOthersDimension (length x width x height)mm12632×2500×399512590×2500×399512515×2500×3995Total vehicle weightkg410004100040000Fuel tank capacityl410400400Fuel consumption per 100kml/100km404040
Pumping systemTheoretical output(high pressure/low pressure)m³/h90/13890/150 Concrete pumping pressure(high pressure/low pressure)Mpa13/8.713/8 Theoretical pumping times(high pressure/low pressure)/min18/2713/21 Max. diameter of pumping concrete aggregatemm40  Feeding heightmm1540  Placing boomPumping slump rangecm12-23  Reach heightm48.1  Reach depthm34  Slewing radiusm42.75  Slewing angle.370  1st boom stretch angle.90  2nd boom stretch angle.180  3rd boom stretch angle.180  4th boom stretch angle.250  5th boom stretch angle.250  Outrigger span Overall outrigger spanmm10500  Front outrigger transverse spanmm10450  Rear outrigger transverse spanmm10300  OthersDosing type S valveS-valve Lubricating method Automatic lubricationAutomatic Controlling method Manual/remote controlManual/Remote controlWater tank capacityl600  Max. pressure of water pumpMpa2

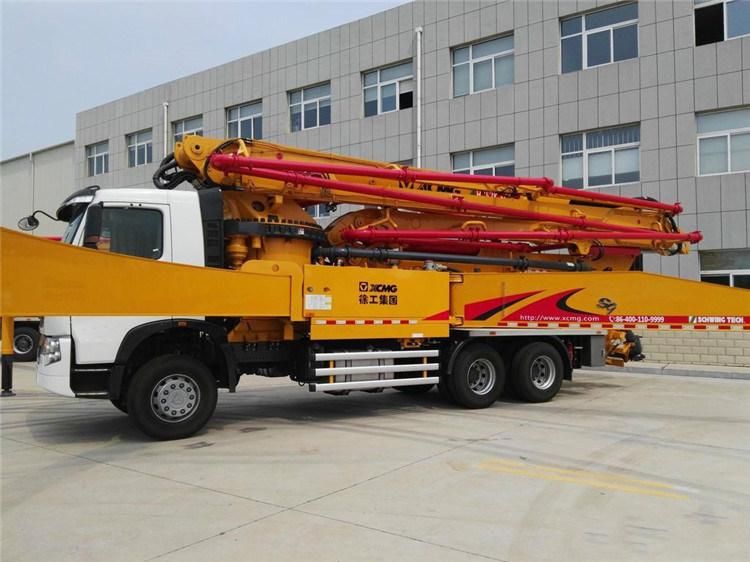

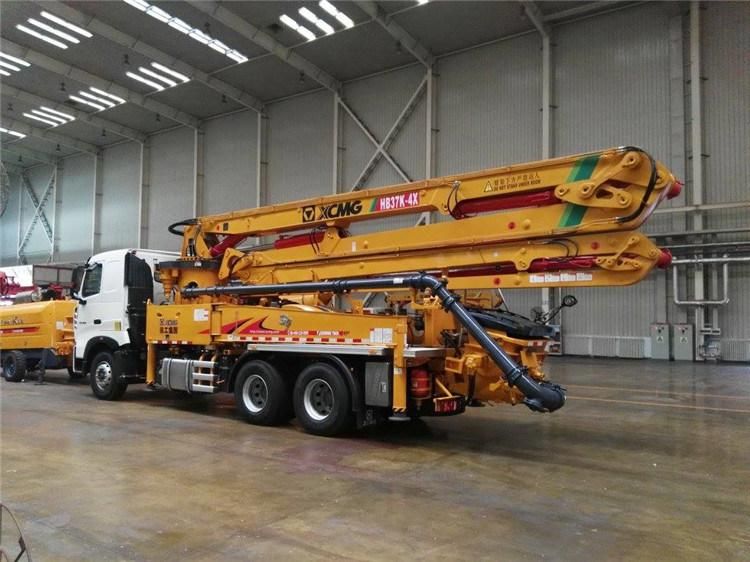

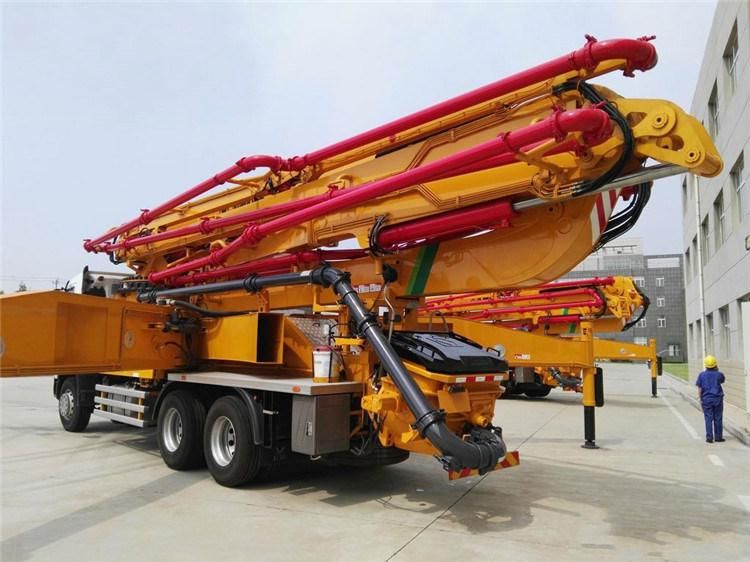

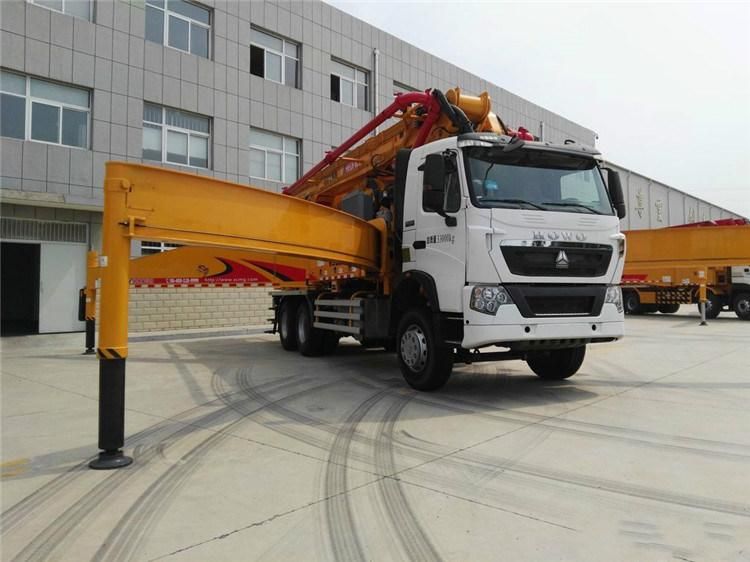

Product Show
