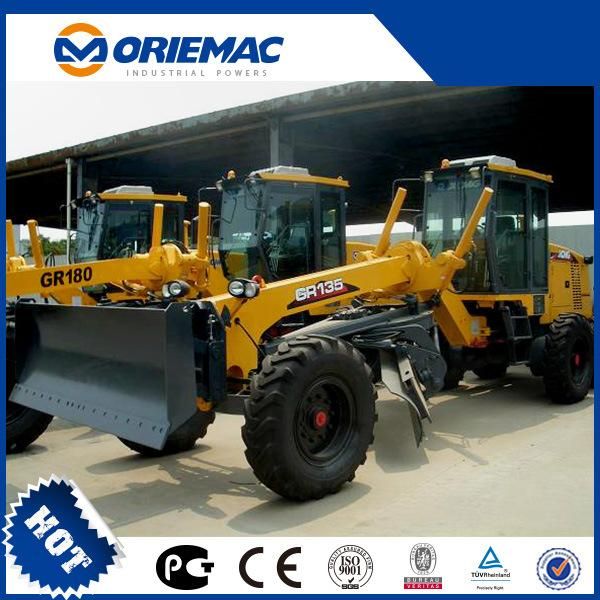

• Model NO.：GR135
• Travelling Speed ,Forward：5 8 13 20 30 42km,H
• Travelling Speed ,Reverse：5 13 30km,H
• Tractive Force(F=0.75)：61.3kn
• Transmission Pressure：1.3~1.8MPa
• Transport Package：Nude Packing
• Specification：CE, ISO
• Trademark：oriemac
• Origin：Xuzhou, China
• Production Capacity：100 Units,Month

Basic specification
Engine model6BT5.9Rated power/speed100/2200kw/rpmDimension(LxWxH)8015×2380×3050mmOperating weight(Standard)11000kg
Performance specification
Travelling speed ,forward5,8,13,20,30,42km/hTravelling speed ,reverse5,13,30km/hTractive force(f=0.75)61.3KNMax. gradeability20%Tire inflation pressure300kPaWorking hydraulic pressure16MPaTransmission pressure1.3~1.8MPa
Operating specification
Max. steering angle of front wheels±49°Max. lean angle of front wheels±17°Max. oscillation angle of front axle±15°Max. oscillation angle of balance box16Frame articulation angle±27°Min. turning radius using articulation6.6m
Biade
Maximum lift above ground410mmMaximum depth of cutting535mmMaximum blade position angle90°Blade cutting angle28°-70°Circle reversing rotation360°Moldboard width X height3710×610mm
