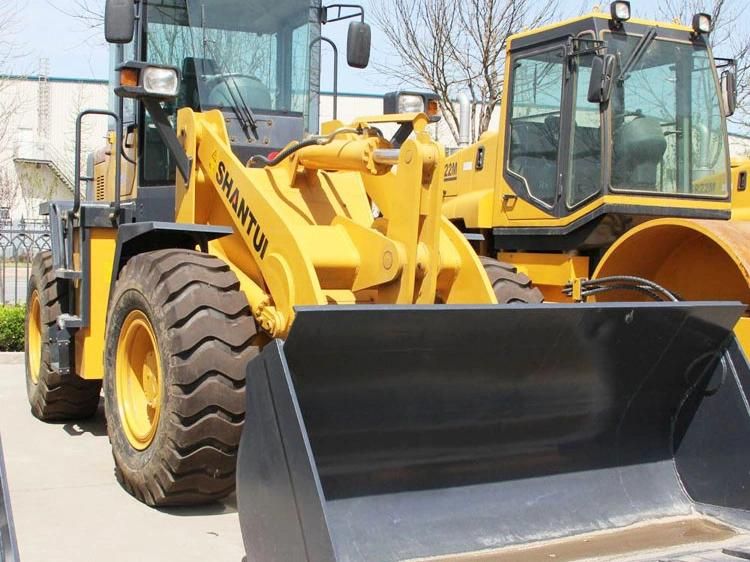

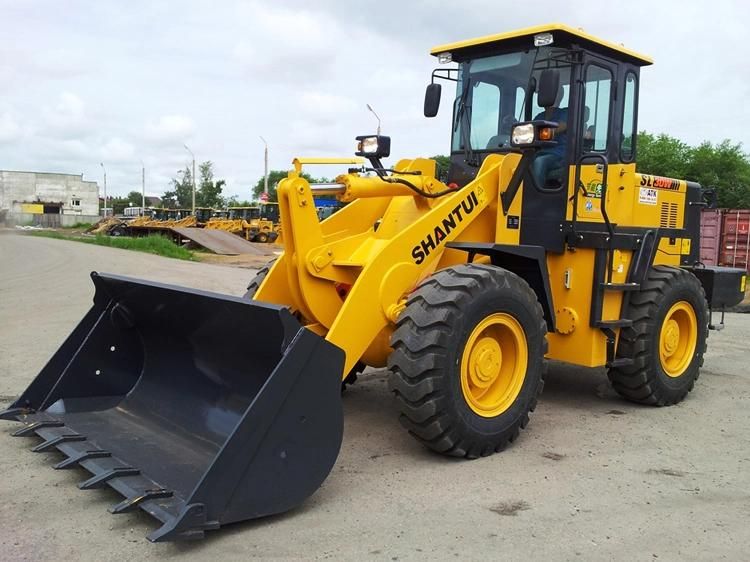

China Wheel Loaders L53-C3 Shantui 5ton Mini Wheel Loader
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Certification：ISO, CE
- Condition：New
- Rated Load：>9t
- Transmission：Power
Base Info
- Model NO.：L53-C3
- Load and Unload Mode：Rear Dump
- Walking Mode：Wheeled
- Type：Medium-sized Loader
- Operating Weight (Kg)：6200
- Transport Package：Cartons
- Trademark：Shantui
- Origin：China
- HS Code：8429521200
- Production Capacity：500000
Description
Basic Info.
Model NO. L53-C3 Load and Unload Mode Rear Dump Walking Mode Wheeled Type Medium-sized Loader Operating Weight (Kg) 6200 Transport Package Cartons Trademark Shantui Origin China HS Code 8429521200 Production Capacity 500000Product Description
China Wheel Loaders Shantui 5ton Mini Wheel Loader L53-C3 With Good PriceProduct Description
Power System
China-III low-speed engine features low malfunction rate, low noise, and low fuel consumption under composite working condition.
Good site adaptabilityThe fixed shaft 428 transmission with 4 forward gears and 2 reverse gears achieves more extensive site adaptability.
Good heat dissipation performanceThe number of engine blades is adjusted from 7 to 9 to increase the airflow output by 10~15% and achieve better heat dissipation performance. The radiator structure is adjusted to eliminate overheating during long-distance driving and further broaden the application scope.
Optimization of hydraulic systemThe series connection sequence of the multi-way valve core is adjusted in such manner that the boom lifting priority is changed to bucket tilting priority to better coincide with the actual working situation.
| Parameter name | L26-C3 SG (Sandstone version) | L26-C3 CH (Coal version) | L26-C3 MW (Mining version ) |
| Performance parameters | |||
| Operating weight (Kg) | 6200 | 6200 | 5600 |
| Maximum dumping height (mm) | 2460 (Standard boom)2850 (Long Boom) | 2700 (Long Boom) | 2460 (Standard boom) |
| Dumping reach (mm) | 850 (Standard boom)865 (Long Boom) | 1000 (Long Boom) | 850 (Standard boom) |
| Maximum breakout force (kN) | 55 | 50 | 55 |
| Total cycle time (s) | 8 | 8 | 8 |
| Engine | |||
| Engine model | LR4B3 | LR4B3 | LR4B3 |
| Rated power/rated speed (kW/rpm) | 62.5/2200 | 62.5/2200 | 62.5/2200 |
| Overall dimensions | |||
| Overall dimensions of machine (mm) | 6120*2078*2850 | 6210*2078*2850 | 5590*2078*2450 |
| Driving performance | |||
| Forward speed (km/h) | F1:0-8,F2:0-11.5,F3:0-20,F4:0-28 | F1:0-8,F2:0-11.5,F3:0-20,F4:0-28 | F1:0-10,F2:0-24 |
| Reversing speed (km/h) | R1:0-10,R2:0-24 | R1:0-10,R2:0-24 | R1:0-10,R2:0-24 |
| Chassis System | |||
| Wheelbase (mm) | 2270 | 2270 | 2270 |
| Tank capacity | |||
| Fuel tank (L) | 105 | 105 | 105 |
| Working device | |||
| Rated bucket capacity (m³) | 1 | 1.5 | 1 |
| Rated loading capacity (t) | 2 | 2 | 2 |
