• Model NO.：DH24-C2
• Engine Power：>515kw
• Certification：CE
• Condition：New
• Color：Yellow
• Engine Model：Wp12
• Transport Package：Cartons
• Trademark：shantui
• Origin：China
• HS Code：8429521200
• Production Capacity：500000

Basic Info.

Model NO. DH24-C2 Engine Power >515kw Certification CE Condition New Color Yellow Engine Model Wp12 Transport Package Cartons Trademark shantui Origin China HS Code 8429521200 Production Capacity 500000

Product Description

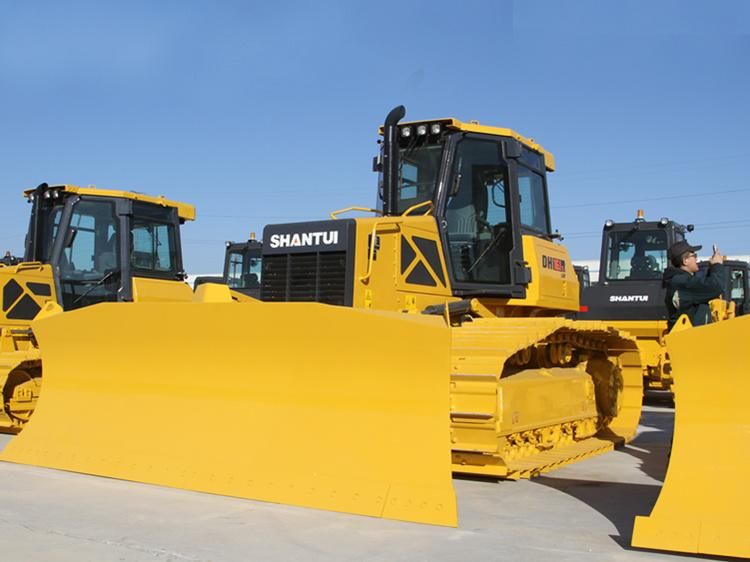

Shantui Earth Moving Machine Producer 240HP Bulldozer Dh24-C2 Good Price For Sale

Product Description



The high reliability power shift transmission and the two-stage final drive with spur gear reducing structure and splash lubrication feature high durability and high operating efficiency.
The closed system is adopted to maintain the water tank pressure at specific value and the forced air supply can enhance the cooling effect.
The harnesses of whole machine are protected by seamless corrugated tubes to improve the reliability of electric harnesses.
The integrally injection molded instrument panel integrates the A/C, electric devices, and instrument box, featuring beautiful appearance and high grade.
The optimized working lamp arrangement improves the lighting performance of vehicle.
The reversing alarm and the working warning lamp are added to provide the safety warnings during working.
The full box-type main frame features high carrying capacity against impact load and bending moment and the high quality welds guarantee the life cycle of the main frame.


parameter



Parameter name	DH24-C2 XL (Extended version)	DH24-C2 CH (Coal version)	DH24-C2 RS (Rock version)
Performance parameters
Operating weight (Kg)	23820	24475	24429
Ground pressure (kPa)	68.3 (Standard)/62.7/58	64.5 (Standard)/59.6	70 (Standard)/64.3/59.5
Engine
Engine model	WP12	WP12	WP12
Rated power/rated speed (kW/rpm)	157/1900 (Light-duty mode) ,179/1900 (Standard mode) , 198/1900 (Heavy-duty mode)	157/1900 (Light-duty mode) ,179/1900 (Standard mode) , 198/1900 (Heavy-duty mode)	157/1900 (Light-duty mode) ,179/1900 (Standard mode) , 198/1900 (Heavy-duty mode)
Overall dimensions
Overall dimensions of machine (mm)	6095*3640*3192	6474*3800*3192	6095*3640*3192
Driving performance
Forward speed (km/h)	0~11km/h(6.84mph)	0~11km/h(6.84mph)	0~11km/h(6.84mph)
Reversing speed (km/h)	0~11km/h(6.84mph)	0~11km/h(6.84mph)	0~11km/h(6.84mph)
Chassis System
Center distance of track (mm)	2000	2000	2000
Width of track shoes (mm)	560 (Standard)/610/660	610 (Standard)/660	560 (Standard)/610/660
Ground length(mm)	3050	3050	3050
Tank capacity
Fuel tank (L)	390	390	390
Working device
Blade type	Semi-U blade	U-blade/coal blade	Rock blade
Digging depth (mm)	540	545	540
Ripper type	Three-shank	--	Three-shank
Ripping depth (mm)	655	--	655
