Changlin 0.8-1.2m3 Bucket Capacity Mini Backhoe Loader Wz30-25

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • Certification：ISO, CE
  • Condition：New
  • Rated Load：6-9t
  • Transmission：Power
  • Load and Unload Mode：Front Discharge
  • Walking Mode：Wheeled

Base Info

  • Model NO.：WZ30-25
  • Type：Small Loader
  • Min. Operation Weight：4250kg
  • Wheelbase：2352mm
  • Transport Package：Nude
  • Specification：4700x2000x2900mm
  • Trademark：CHANGLIN
  • Origin：China
  • HS Code：8701200000
  • Production Capacity：100 Sets,Month

Description

Overall Dimension

1

Length(with bucket on ground)

7077(mm)

2

Width

2350(mm)

3

Load Bucket width

2313(mm)

4

Height(To the top of the cab)

2720 (mm)

5

Height(To the top of the digging pole)

3424 (mm)

6

Wheelbase

2155.5(mm)

7

Back wheel Tread

1557(mm)

8

Fore wheel Tread

1714(mm)

9

Min. ground clearance

355(mm) for 2WD 275(mm) for 4WD

Main Loading Technical Specification

1

Rated load

1700(Kg)

2

Operating weight

7000KG



Max lifting capability

>2500KG

3

Rated load bucket capacity

1.0(m3)

4

Max. load breakout force

>40kN

5

Max. dump clearance

2611(mm)

6

Dump reach

726(mm)

7

Dump angle at any position

≥43.50

8

Min. turning radius

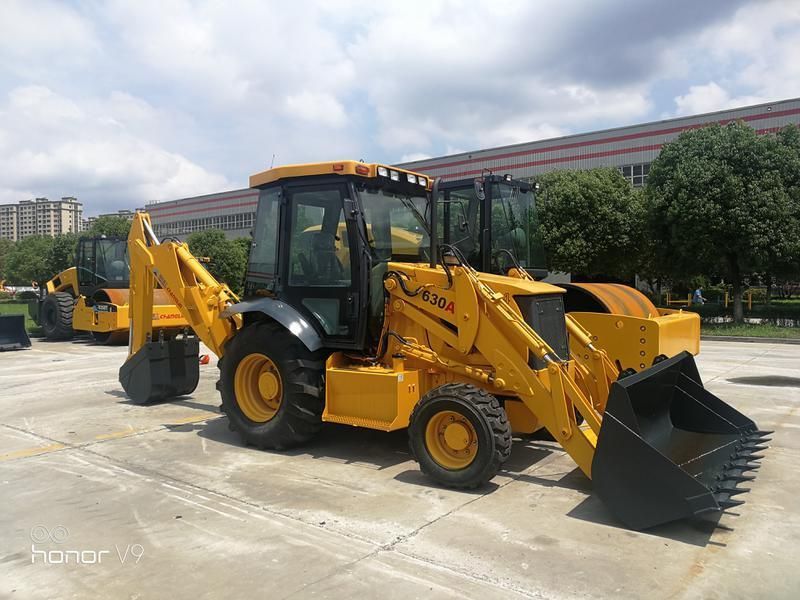

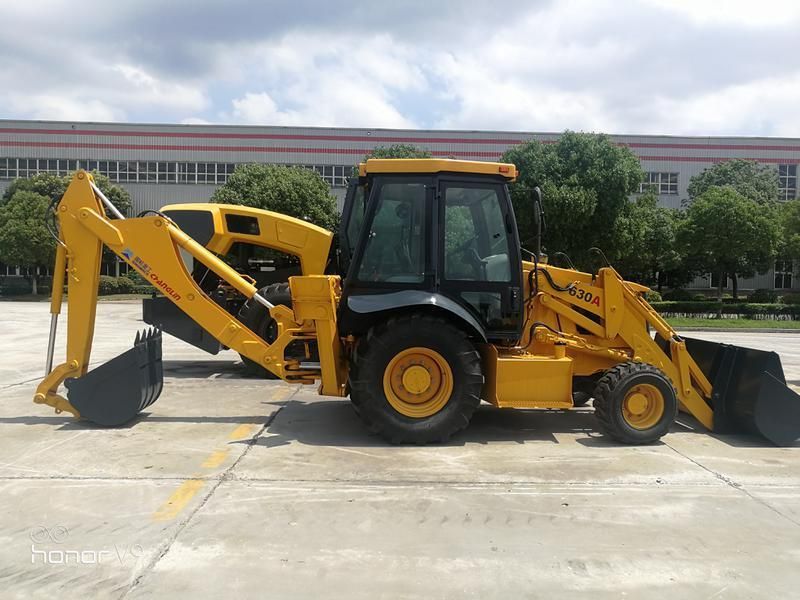

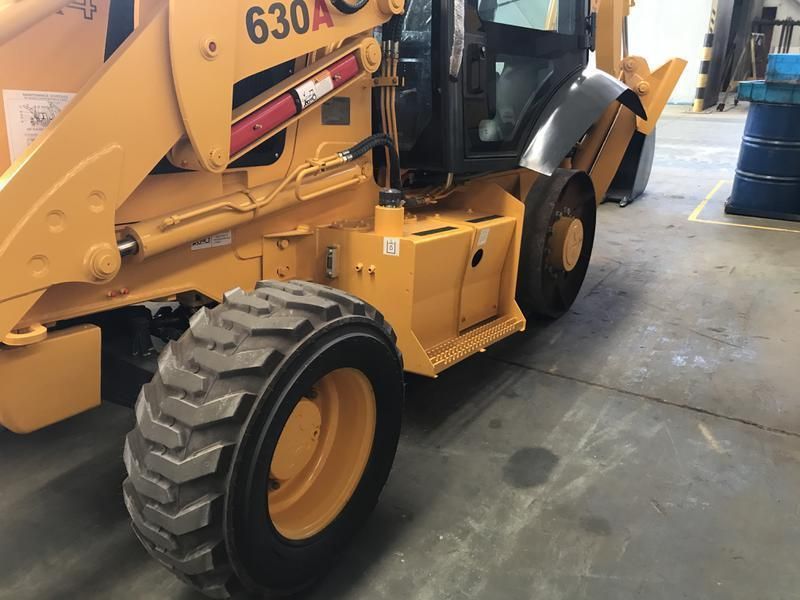

Photoes:

Changlin 0.8-1.2m3 Bucket Capacity Mini Backhoe Loader Wz30-25
Changlin 0.8-1.2m3 Bucket Capacity Mini Backhoe Loader Wz30-25
Changlin 0.8-1.2m3 Bucket Capacity Mini Backhoe Loader Wz30-25
