• Model NO.：HTY165
• Condition：New
• Color：Yellow
• Operation Weight (Kg)：17120
• Dozer Type：Tilting
• Bulldozer Type：Direct Drive Transmission, Track-Type Undercarriag
• Ground Pressure(Kpa)：64
• Dozing Capacity (M³)：5.0
• Blade Width (mm)：3297
• Max. Digging Depth (mm)：420
• Max. Lifting Height of Ripper(mm)：510
• Max. Digging Depth of Ripper(mm)：550
• Overall Dimensions (mm)：5447×3297×3160
• Transport Package：Container, RO - RO Ship, Frame Cabinet, etc.
• Specification：CE, Rohs, ISO9001, ISO4001
• Trademark：CHHGC
• Origin：Henan, China
• HS Code：84291
• Production Capacity：5000 Sets,Year

Dozer typeTiltOperation weight (Kg)  (not including ripper)17120Ground pressure(KPa)  64Track gauge(mm)       1880Gradient  30°/25°Min. ground clearance (mm)   352.5Dozing capacity (m³)   5.0Blade width (mm)  3297Max. digging depth (mm)     420Overall dimensions (mm)    5447×3297×3160Max. lifting height of blade(mm) 900EngineEngin TypeWD10G178E25Rated revolution (rpm)  1850Flywheel power (KW/HP)   131/178Max. torque (N?m/rpm)          830/1100Rated fuel consumption(g/KW?h)     ≤218Undercarriage system/ Moving SystemTypeSwing type of sprayed beam. Suspended structure of equalizer barNumber of track rollers (each side)   6Width of shoe (mm)  500Gear  1st 2nd 3rdForward  (Km/h)         0-2.52     0-3.32     0-5.68     0-7.53     0-10.64 Backward (Km/h)        0-3.53     0-4.60     0-7.94     0-10.53 Implement hydraulic systemMax. system pressure (MPa)  12Pump type   Two groups Gears pumpSystem output(L/min)190Driving systemMain clutch Normally opened, wet type, hydraulic booster control.  GearboxNormally meshed helical gear drive, coupling sleeve shift and two lever operation, the transmission has five forward and four backward speeds.Steering clutch.The steering clutch is hydraulic pressed, usually separated clutch.Braking clutchMultiple-disc oil power metallurgy disc compressed by spring. hydraulic operated.Final drive   The final drive are double reduction with spur gear and segment sprocket, which are sealed by duo-cone seal.
CHHGC HTY Series Bulldozers VS Shantui SD Series Bulldozers


1.Mechanical-transmission,minimum power losses,
work more efficiently;

2.Low repair and maintenance costs;

3.Long service life.

About Cab-Design:
1.The working device to manipulate
a single lever pilot control, simple
operation, comfort, and effort.

2.The steering linkage steering and
braking systems for the structural
design, hydraulic power steering.

3.The appearance of the layout
design elegant, can be installed
electronic monitoring, luxurious interiors.Operate Weight(kg)17.12  t17  tTrack ground length(mm)2570mm 2430mmGround Pressure64Kpa67 KpaEngine Power131kw120kwTrack Plate Quantity(piece)3837Forward gearsFive GearsThree GearsBackward gearsFour GearsThree Gears

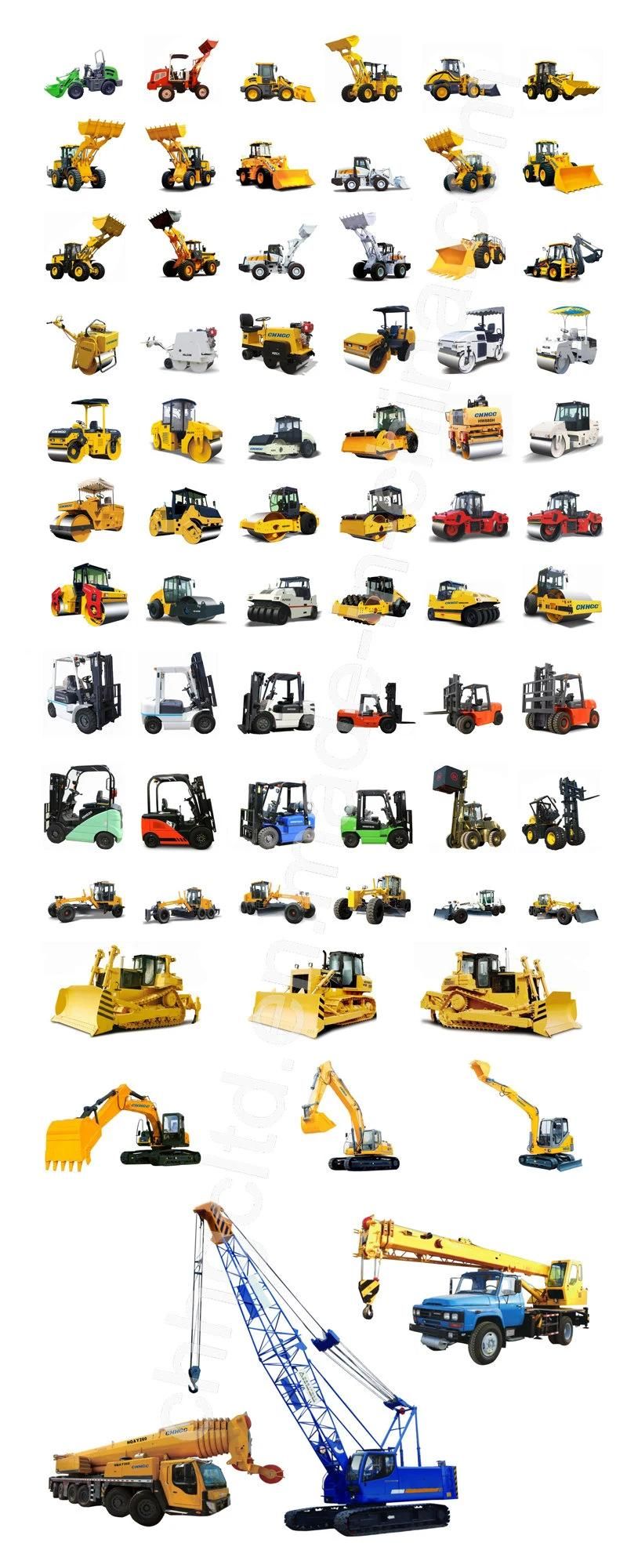

Our Products


Actual Site

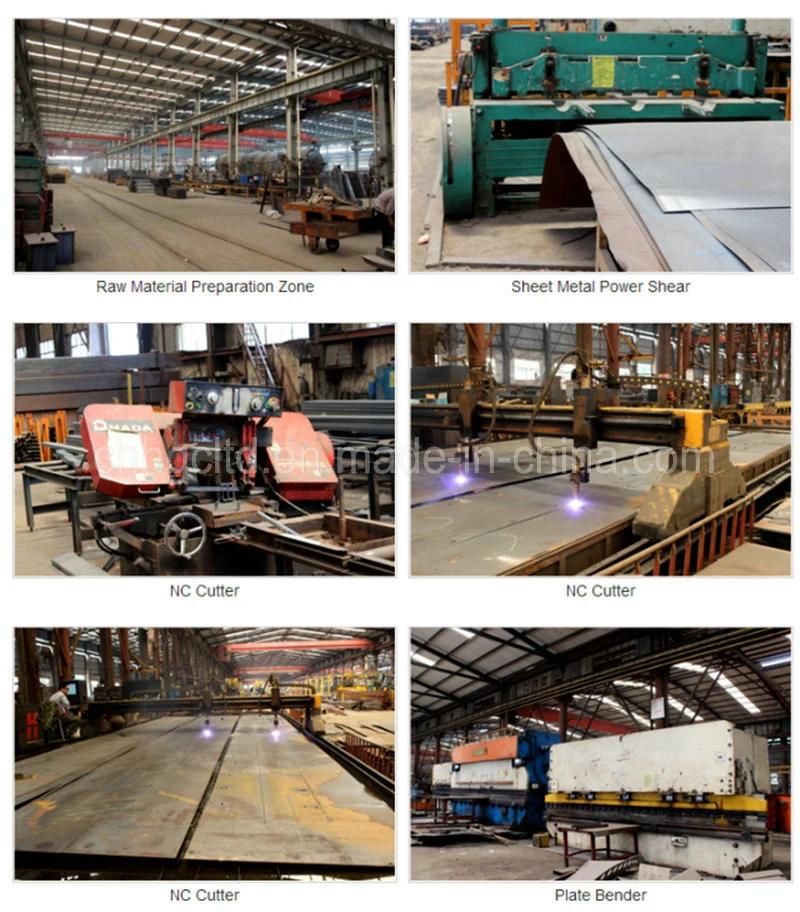

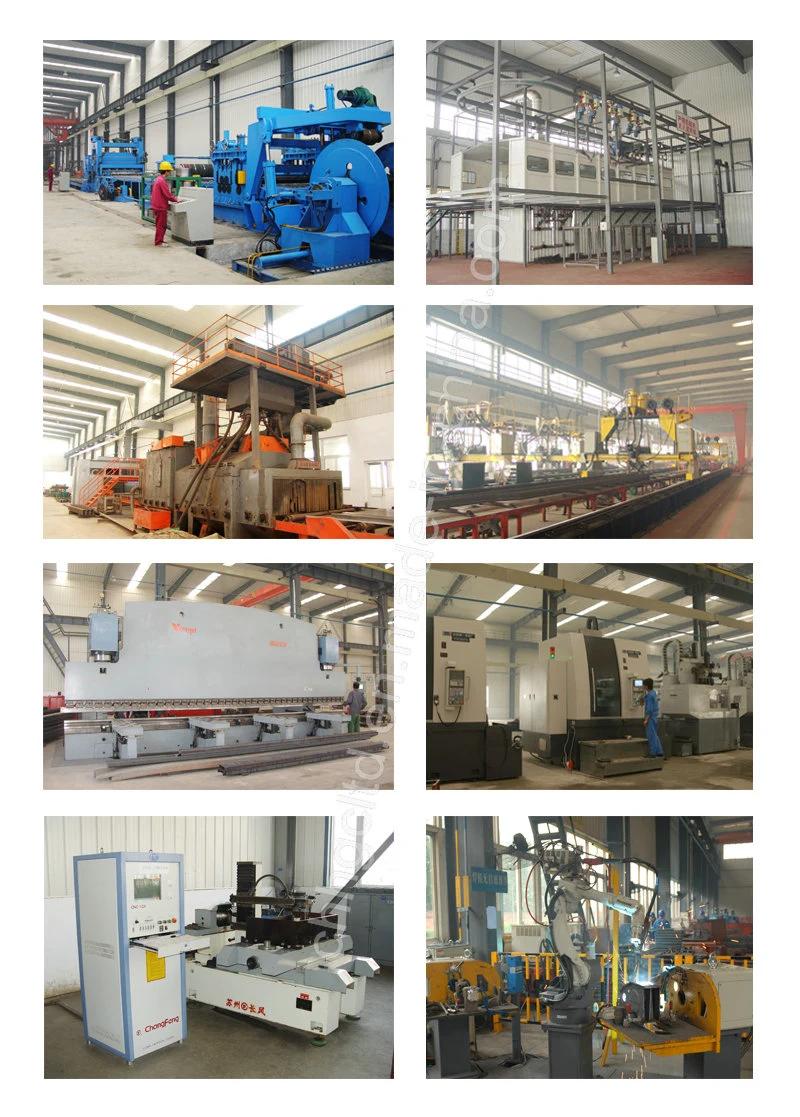

Workshop



FAQ

1. How do you transport the semi trailers?

We transport the semi trailers by bulk or container. Our factory possesses long-term cooperation with ship agency which can provide you lowest shipping fee.

2. Can you satisfy my special requirement?

Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
