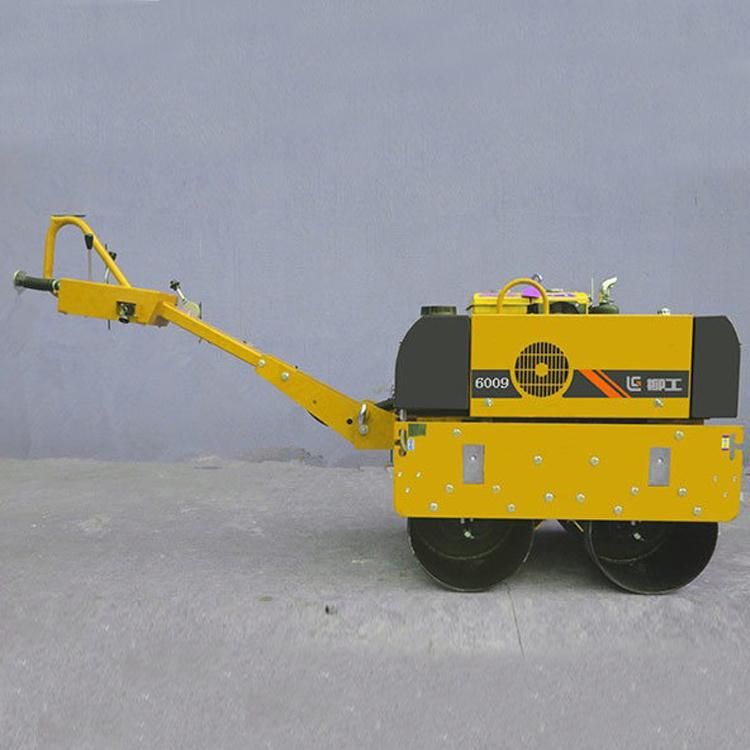

Liugong 800kg Vibratory Mini Road Roller Compactor Light Hand Operated 6009e
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service：Video Technical Support
- Warranty：1 Year Warranty
- Type：Road Roller
- Working Method：Vibration
- Axle：Biaxial Dual-Drum
- Grinding Wheel Type：Tire Grind
Base Info
- Model NO.：6009E
- Compaction Depth：40cm
- Engine Type：Diesel Engine
- Travel Speed：0-3.6 Km,H
- Centrifugal Force：30 Kn
- Certification：EPA, CE, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Operating Mass：860 Kg
- Mass on Front Drum：400 Kg
- Mass on Rear Axle：460 Kg
- Front Drum Static Linear Load：52 N,Cm
- Rear Drum Static Linear Load：60 N,Cm
- Model：Kaipu 186f1e
- Emission Regulation：Stage II
- Rated Power：5.3 Kw (7.2 HP) @ 3000 Rpm
- Vibration Frequency Low：55 Hz
- Centrifugal Force Low：30 Kn
- Vibration Frequency High：55 Hz
- Transport Package：Suitable for Shipping
- Specification：2541 mm*812 mm*1238 mm
- Trademark：Liugong
- Origin：Guangxi, China
- HS Code：8429401100
- Production Capacity：1000 Units,Year
Description
Operating Mass
860 kg
Mass On Front Drum
400 kg
Mass On Rear Axle
460 kg
Front Drum Static Linear Load
52 N/cm
Rear Drum Static Linear Load
60 N/cm
Model
Kaipu 186F1E
Emission Regulation
Stage II
Rated Power
5.3 kW (7.2 hp) @ 3000 rpm
Vibration Frequency Low
55 Hz
Nominal Amplitude Low
0.35 mm
Centrifugal Force Low
30 kN
Vibration Frequency High
55 Hz
Nominal Amplitude High
0.35 mm
Centrifugal Force High
30 kN
Drum Diameter
426 mm
Drum Width
750 mm
1st Maximum Speed, fwd
0-3.6 km/h
Theoretical Gradeability
30%/35%
