• Model NO.：365A
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Engine Power：48 Kw (65 HP) @ 2300 Rpm
• Operating Weight：2950 Kg
• Rated Operation Capacity：795 Kg
• Raise：4.1 S
• Dump：2.4 S
• Wlower (Empty, Float Down)：2.2 S
• Tipping Load：1590 Kg
• Bucket Breakout Force：20.8 Kn
• Dump Clearance - Full Height：2220 mm
• Dump Reach - Full Height：540 mm
• Engine Model：Xinchai 4D35g
• Emission：EPA Tier 2 ,EU Stage II
• Wheelbase(mm)：18 L
• Transport Package：Container, Roro, Nube
• Specification：3362*1630*1940mm
• Trademark：Liugong
• Origin：Guangxi, China
• HS Code：8429510000
• Production Capacity：1000 Units,Year

Basic Info.

Model NO. 365A Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader Engine Power 48 Kw (65 HP) @ 2300 Rpm Operating Weight 2950 Kg Rated Operation Capacity 795 Kg Raise 4.1 S Dump 2.4 S Wlower (Empty, Float Down) 2.2 S Tipping Load 1590 Kg Bucket Breakout Force 20.8 Kn Dump Clearance - Full Height 2220 mm Dump Reach - Full Height 540 mm Engine Model Xinchai 4D35g Emission EPA Tier 2 /EU Stage II Wheelbase(mm) 18 L Transport Package Container, Roro, Nube Specification 3362*1630*1940mm Trademark Liugong Origin Guangxi, China HS Code 8429510000 Production Capacity 1000 Units/Year

Product Description

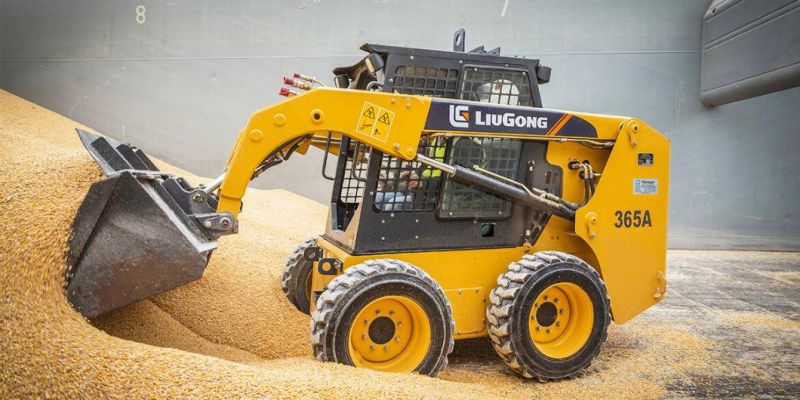

Liugong Mini Skid Steer Loader Backhoe Loaders 365A 3Ton Product Description

• With a large space for radiation system, the heat radiation performance of the whole machine is increased by 15%, and the working environment temperature can reach 45°C.
• Yanmar engine imported from Japan can perfectly match with the complete machine system, providing high fuel efficiency and excellent power.
• The cab is designed with FOPS and ROPS to ensure safety and Comfortability.
• Multiple attachments allow you to process more jobs with just one machine.
• The 80 degree rear tilt cab and rear hook provide adequate maintenance space.

Specification

Engine Power   48 kW (65 hp) @ 2300 rpm
Operating Weight  2950 kg
Rated Operation Capacity  795 kg
Raise  4.1 s
Dump  2.4 s
Lower (empty, float down)  2.2 s
Tipping Load  1590 kg
Bucket Breakout Force  20.8 kN
Dump Clearance - Full Height  2220 mm
Dump Reach - Full Height  540 mm
Engine Model  Xinchai 4D35G
Emission  EPA Tier 2 / EU Stage II
Cooling System  18 L
Overall Length with Standard Bucket  3362 mm
Overall Width with Standard Bucket  1630 mm
Overall Height to top of Cab 1940 mm
Front Clearance Radius with bucket  1800 mm
Bucket capacity  0.4 m³
