• Model NO.：CLG922E
• Size：Medium-Sized
• Certification：CE, ISO9001: 2000
• Condition：New
• Operation Weight：22,000 Kg
• Engine Model：Cumins Qsb7
• Engine Power：124 Kw
• Maximum Travel Speed (High)：5.6 Km,H
• Maximum Travel Speed (Low)：3.3 Km,H
• Maximum Swing Speed：10.5 Rpm
• Maximum Digging Depth：6,562 mm
• Maximum Digging Height：9,945 mm
• Warranty：12 Months
• Dump Height：7,170 mm
• Transport Package：Nude Package
• Specification：9, 570*2, 990*3, 140mm
• Trademark：LIUGONG
• Origin：China
• HS Code：84264910
• Production Capacity：10000

Basic Info.

Model NO. CLG922E Size Medium-Sized Certification CE, ISO9001: 2000 Condition New Operation Weight 22,000 Kg Engine Model Cumins Qsb7 Engine Power 124 Kw Maximum Travel Speed (High) 5.6 Km/H Maximum Travel Speed (Low) 3.3 Km/H Maximum Swing Speed 10.5 Rpm Maximum Digging Depth 6,562 mm Maximum Digging Height 9,945 mm Warranty 12 Months Dump Height 7,170 mm Transport Package Nude Package Specification 9, 570*2, 990*3, 140mm Trademark LIUGONG Origin China HS Code 84264910 Production Capacity 10000

Product Description

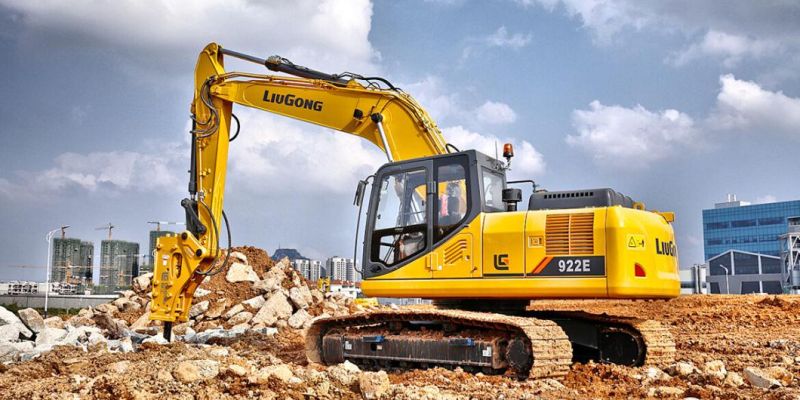

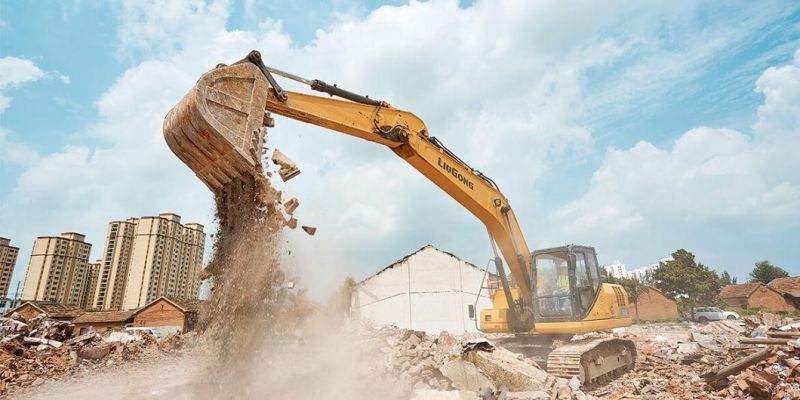

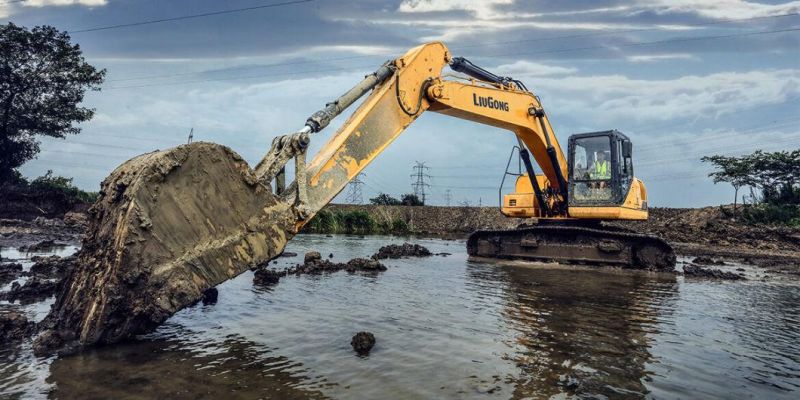

Digger Machine Liugong CLG922E 22 ton Crawler Excavator for Sale

Features:

• 1.ALWAYS RELIABLE
  Major parts are all from world class suppliers.The improved boom and arm, reinforced undercarriage are designed to withstand some of the toughest working environments.

  2.EFFICIENT AND ENVIRONMENTAL FRIENDLY
  Equipped with a fuel efficient world-class Cummins B5.9 engine, compliant with EU stage II/EPA Tier 2, and the advanced IPC (Intelligent Power Control) system balances the engine and hydraulic pump to achieve high efficiency and low fuel consumption.OPERATOR COMFORT

  3.Ergonomically designed cab for Liugong
  E series excavator, with great visibility, expansive leg room, new multi-function LCD monitor, automatic air conditioner, large storage space, provide most comfortable working environment.

  4.ENHANCED VERSATILITY
  Additional spool in the control valve and the space for PTO pump on the main pump allow for the easy installation of attachments lines.HIGHEST

  5.SAFETY STANDARDS
  The machine meets European Certifying ROPS cab compliant with ISO 12117-2:2008. Falling Object Protection System (FOPS) is optional. An optional rearview camera gives an exceptionally clear view of the rear work zone on the wide-screen monitor.

Parameter:

Operating Weight	22,000 kg
Bucket Capacity	1.0 m³
Engine	Cumins QSB7
Gross Power	124 kW (166 hp) @ 2,050 rpm
Net Power	117 kW (157 hp) @ 2,050 rpm
Peak Torque	658 N·m @ 1,500 rpm
Travel Speed	High:5.6 km/h Low: 3.3 km/h
Drawbar Pull	220 kN
Swing Speed	10.5 rpm
Arm Breakout Force, max, ISO	105.4 kN
Bucket Breakout Force, max, ISO	152.5 kN
Maximum Dig Depth	6,562 mm
Reach at Ground Level	9,685 mm
Depth of 8' Level Bottom	6,390 mm
Maximum Dig Height	9,945 mm
Dump Height	7,170 mm
Maximum Dig Depth of Vertical Wall	5,080 mm
Overall Lenth	9,570 mm
Overall Width	2,990 mm
Overall Height	3,140 mm
