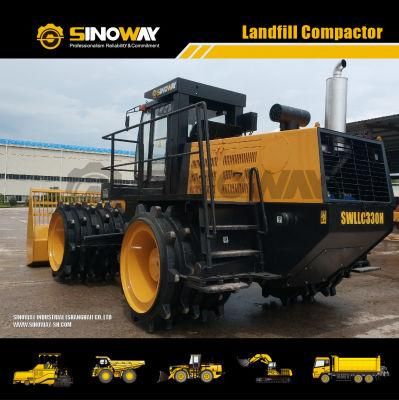

Four Wheels Drive 33ton Refuse Landfill Compactor for Sale

Sinoway Industrial (Shanghai) Co., Ltd.
  • Type：Landfill Compactor
  • Working Method：Steel Wheel
  • Axle：Triaxial Three-Wheel
  • Grinding Wheel Type：Sheep Foot Roller
  • Compaction Depth：40cm
  • Engine Type：Diesel Engine

Base Info

  • Model NO.：SWLLC330H
  • Travel Speed：30cm,s
  • Centrifugal Force：40KN
  • Certification：ISO 9001:2000, ISO 9001:2008, ISO14001
  • Condition：New
  • Rolling Width：2910 mm
  • Rated Power：260 Kw
  • Operation Weight：33000 Kg
  • Engine Make：Cummins
  • Service Brake：Hydrostatic
  • Teeh Number：60,50
  • Oil Tank Capacity：440L
  • Hydraulic Tank Capacity：305L
  • Wheelbase：3500mm
  • Transport Package：Naked
  • Specification：ISO
  • Trademark：SINOWAY
  • Origin：China
  • HS Code：84294990
  • Production Capacity：100 Units,Month

Description

Man Technical SpecificationsOperating weight 33000kgFront axle load16500kgRear axle load 16500kgOverall dimension8090 x 3800 x 3755mmWheelbase3500mmGround clearance 610mmWheel width (F/R)1350/1150mmWheel diameter (F/R)1620/1620mmTeeth No. per wheel (F/R)60/50Engine CumminsRated power260kwRated speed2100rpmElectric system24VDrive mode4 x 4Travelling speed I (F/R)0 - 4km/hTravelling speed II (F/R)0 - 11.5km/hGradeability   100°Blade width  3800mmBlade height2000mmBlade lifting height 1200mmBlade depth  200mmService brake Hydro-static, actuate 4 wheels  Parking/emergency brakeMechanical, brake shoe actuate Steering typeHydraulic, middle articulated, moveable Steering angle±40°Transverse swing angle ±15°Min. steering radius at the front wheel 6750mmFuel tank 440LHydraulic tank 305L
