• Model NO.：swd320y
• Condition：New
• Color：Yellow
• Engine：Cummins
• Blade Type：Straight
• Blade Capacity：7.3m3
• Track Width：560 mm
• Blade Height：1590mm
• Blade Width：4130mm
• Transport Package：Nude
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84314990
• Production Capacity：200 PCS,Month

Basic Info.

Model NO. swd320y Condition New Color Yellow Engine Cummins Blade Type Straight Blade Capacity 7.3m3 Track Width 560 mm Blade Height 1590mm Blade Width 4130mm Transport Package Nude Specification ISO Trademark SINOWAY Origin China HS Code 84314990 Production Capacity 200 PCS/Month

Product Description

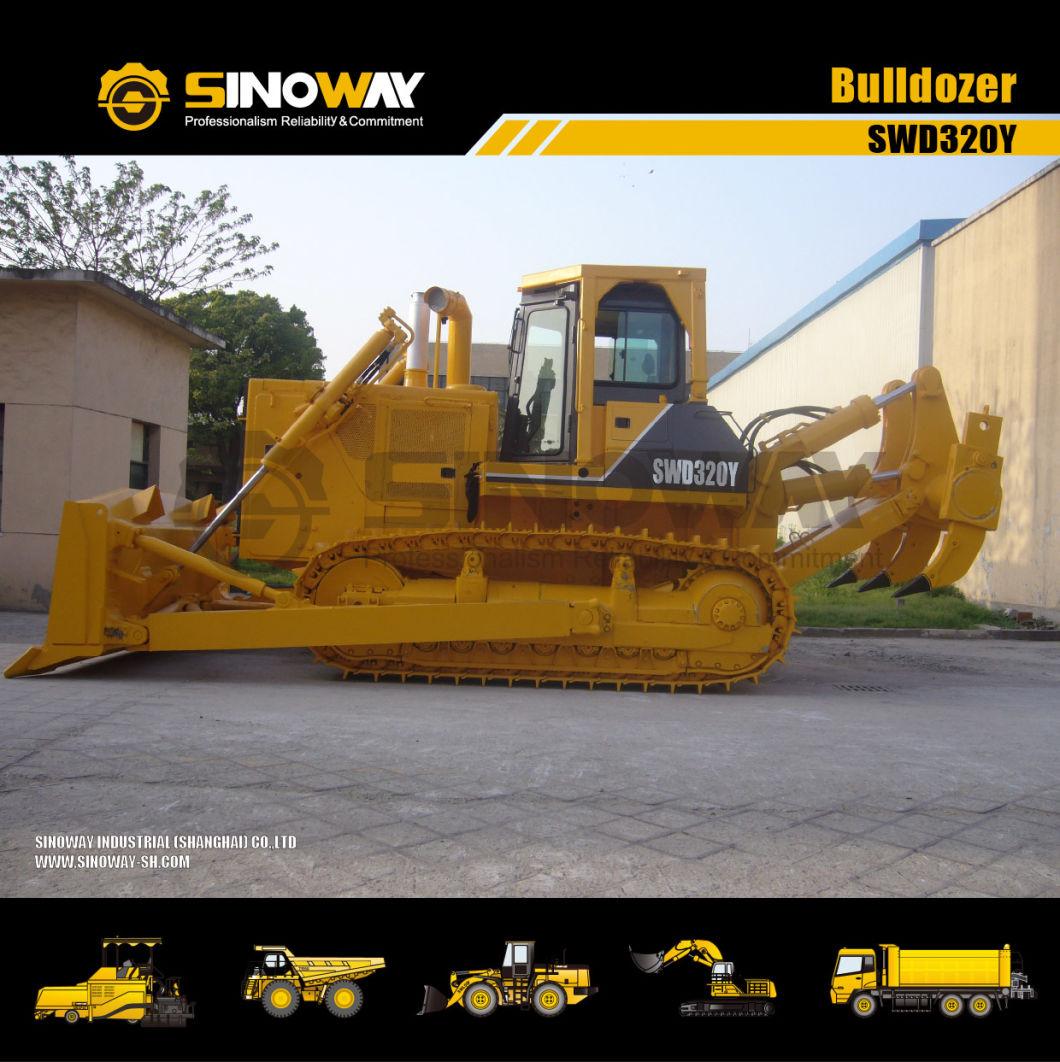

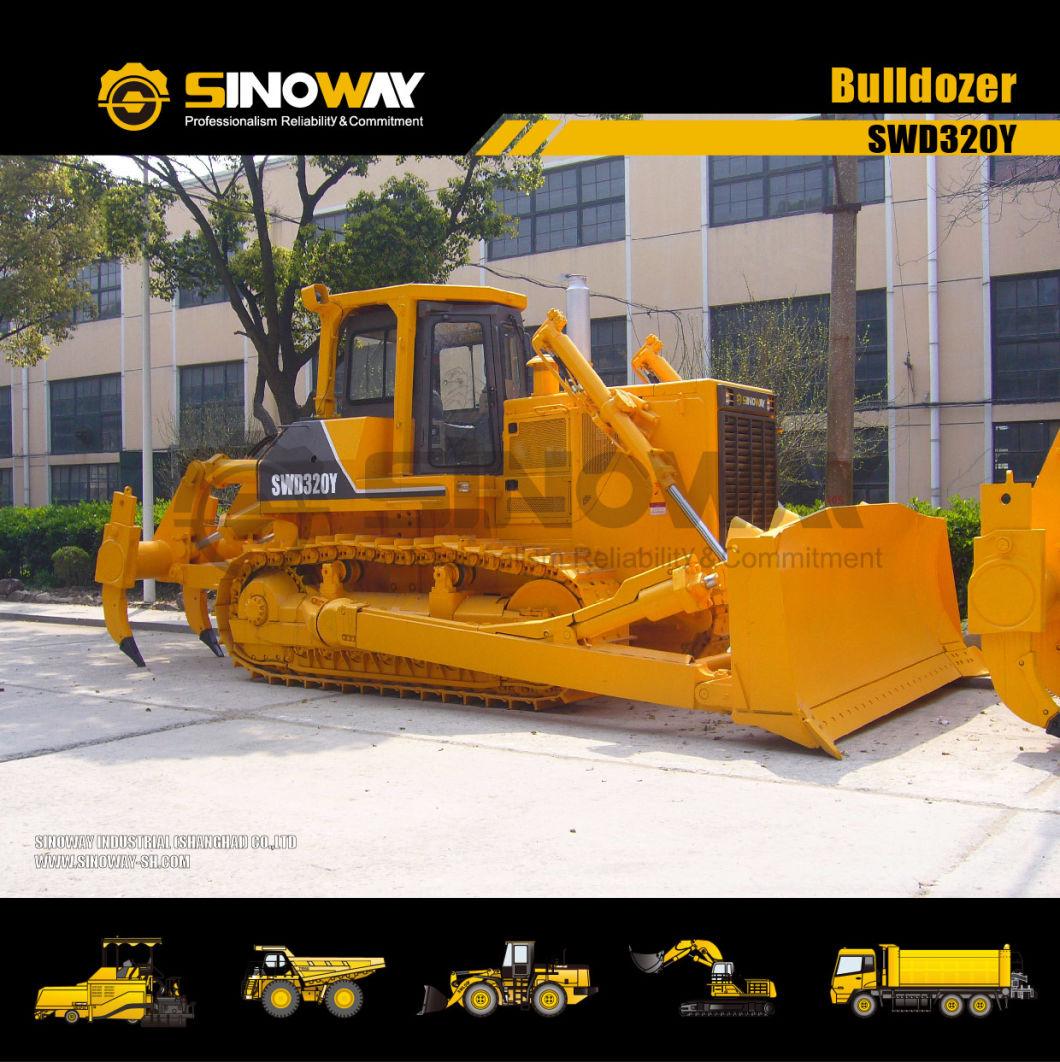

SWD320Y Bulldozer Advantage
 With the maturest technology introduced, Sinoway offers both flat design track dozers as Komatsu and elevated track bulldozers as Caterpillar. As a supplement, Sinoway provide also wheeled bulldozer for your application which crawler dozers are not allowed. From a wide horsepower range of 80HP to 430HP, with various blade types and attachments available, the last thing now is just selecting the right bulldozer for your application.

The torque converter of SWD320Y is a hydro-mechanical converter whose power is divided outside, which has the characteristics of wide high efficiency range. Steering and braking can be controlled with the same control lever. Braking system utilizes hydraulic boosting structure, which is convenient and labor-saving. The final drive gear has the characteristics of large displacement coefficient value.
 Euro-II emission Cummins engineEasy-operated Komatsu. tech. power shift transmissionReliable Komatsu tech. undercarriageErgonomically designed cabin

Product Show




Specifications

Engine
Model	Cummins NT855
Type	Six-cylinder,water-cooled turbocharged,mechanical injection
Rated power	257KW
Rated speed	2000rpm
Implement Hydraulic System
Hydraulic flow rate	335L/min
Hydraulic pressure	13.7MPa
Pump type	Double gear pump
Control valve	Hydraulic operated,pilot control
Under Carriage System
Sprocket	Segmented
Number of track rollers (each side)	7
Number of carrier rollers (each side)	(5 single, 2 double)
Number of front idler (each side)	21
Track type	Single grouser
Track tension	Hydraulic
Track pitch	228.6mm
Track width	560mm
Number of track shoes (each side)	41
Track length on ground	3150mm
Ground clearance	500mm
Main Technical Specification
Operating weight(without ripper)	35900Kg
Ground pressure(without ripper)	0.094MPa
Grade ability	58%

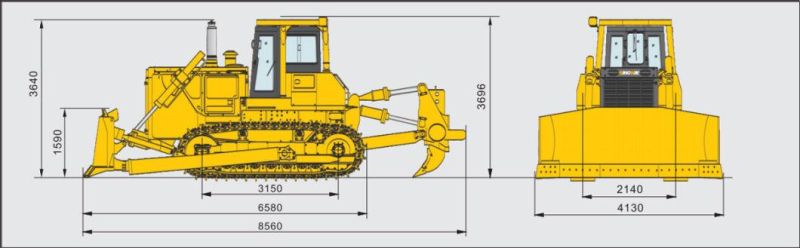

Overall dimensions (L×W×H,without ripper)	6880×4130×3640mm
Max. tractive force	281KN
Working Equipment
Blade type	Straight
Width	4130mm
Height	1590mm
Max. digging depth	560mm
Max. lift above ground	1560mm
Tilting angle	14°
Blade capacity	10m3
Transmission System
Gear box	Planetary gear,hydraulic actuated, forced lubrication
Torque converter	3 elements, single stage,single phase
Final drive	Spur gear, double reduction,splash lubricated
Gear shifts(Forward/Reverse)Travelling speed(km/h)	F3/R3
Forward/Reverse I	3.6/4.4
Forward/Reverse II	6.6/7.8
Forward/Reverse III	11.5/13.5
Service Capacities
Fuel tank	600L
Water tank	121L
Implement oil tank	164L
Steering clutch	Wet, multiple disc, spring loaded, hydraulically released
Steering brake	Wet, band brake, operated with hydraulic booster

Service Support
Sinoway treat Service as a significant segment in our value chain. All of our service-related businesses-aftermarket parts, technical support, training, OEM Solutions are based on offering more professional service, extending the life of each machine we delivered.

For special key projects and VIP customers, Sinoway offer on-site field service for a certain period, to allow the team of our users with a better understanding on the operating and maintenance, to help training the service team of their own, or give a proposal on the maintenance solutions according to the special operating environment. With the field service, we are confident to enable our machinery reduce the downtime at maximum and help our clients fulfill the project smoothly and on time.

Condition	Brand New
Warranty	One year or 2000 working hours, whichever comes earlier.
Shipment Terms	FOB, CFR, CIF, CIP DAF
Company Name	Sinoway Industrial (Shanghai) Co.,Ltd
Add	30 A1, No.58, New Jinqiao Road ,Shanghai, China
Tel	+86 21 68598616
Fax	+86 21 50191951
Website	sinoway-sh.en.made-in-china.com
