• Model NO.：swd165
• Condition：New
• Color：Yellow
• Blade Capacity：4.5 M3
• Blade Width：3416mm
• Track Width：510mm
• Ground Clearance：400mm
• Max.Travel Speed：13.9km,H
• Max. Tractive Force：139.6kn
• Transport Package：Nude
• Specification：ISO
• Trademark：SINOWAY
• Origin：China
• HS Code：84314990
• Production Capacity：500 PC,Month

Basic Info.

Model NO. swd165 Condition New Color Yellow Blade Capacity 4.5 M3 Blade Width 3416mm Track Width 510mm Ground Clearance 400mm Max.Travel Speed 13.9km/H Max. Tractive Force 139.6kn Transport Package Nude Specification ISO Trademark SINOWAY Origin China HS Code 84314990 Production Capacity 500 PC/Month

Product Description

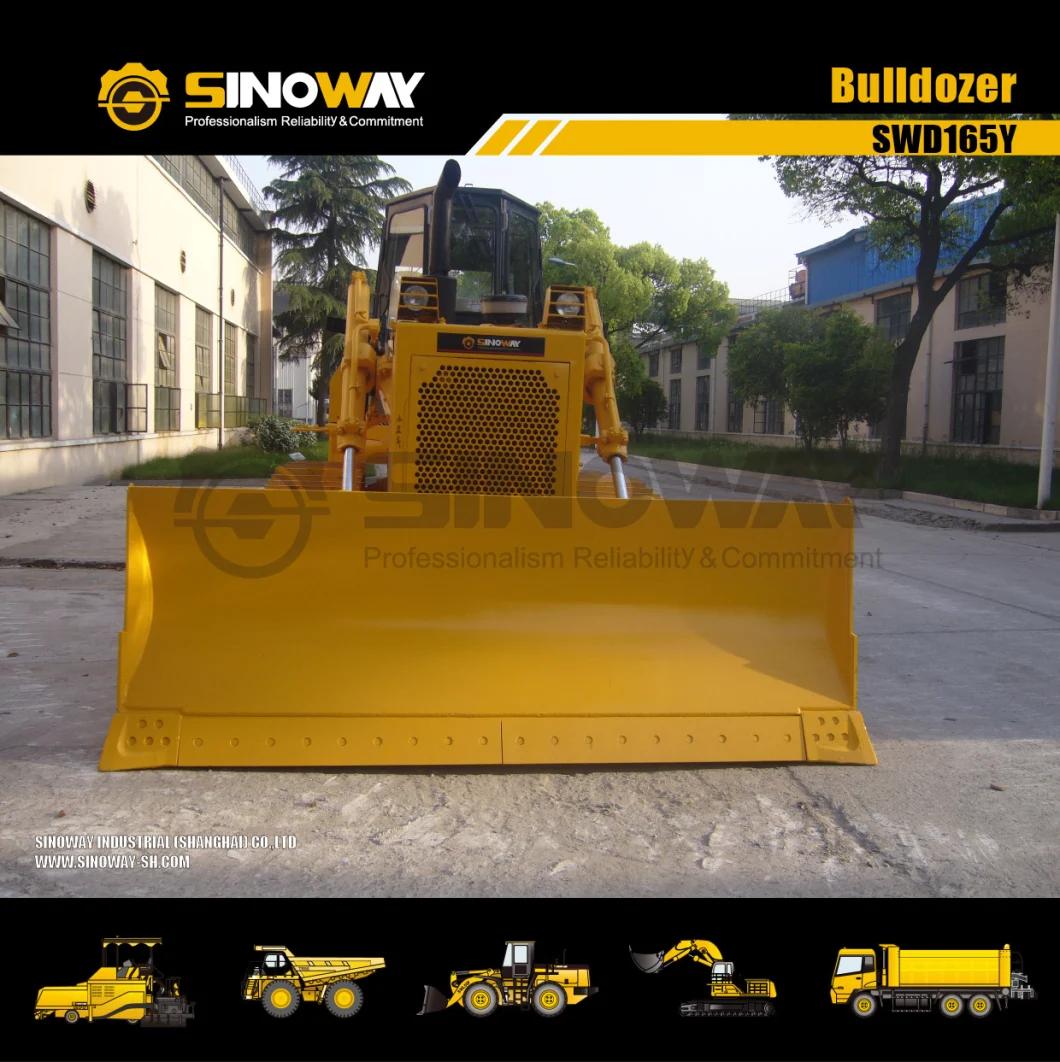

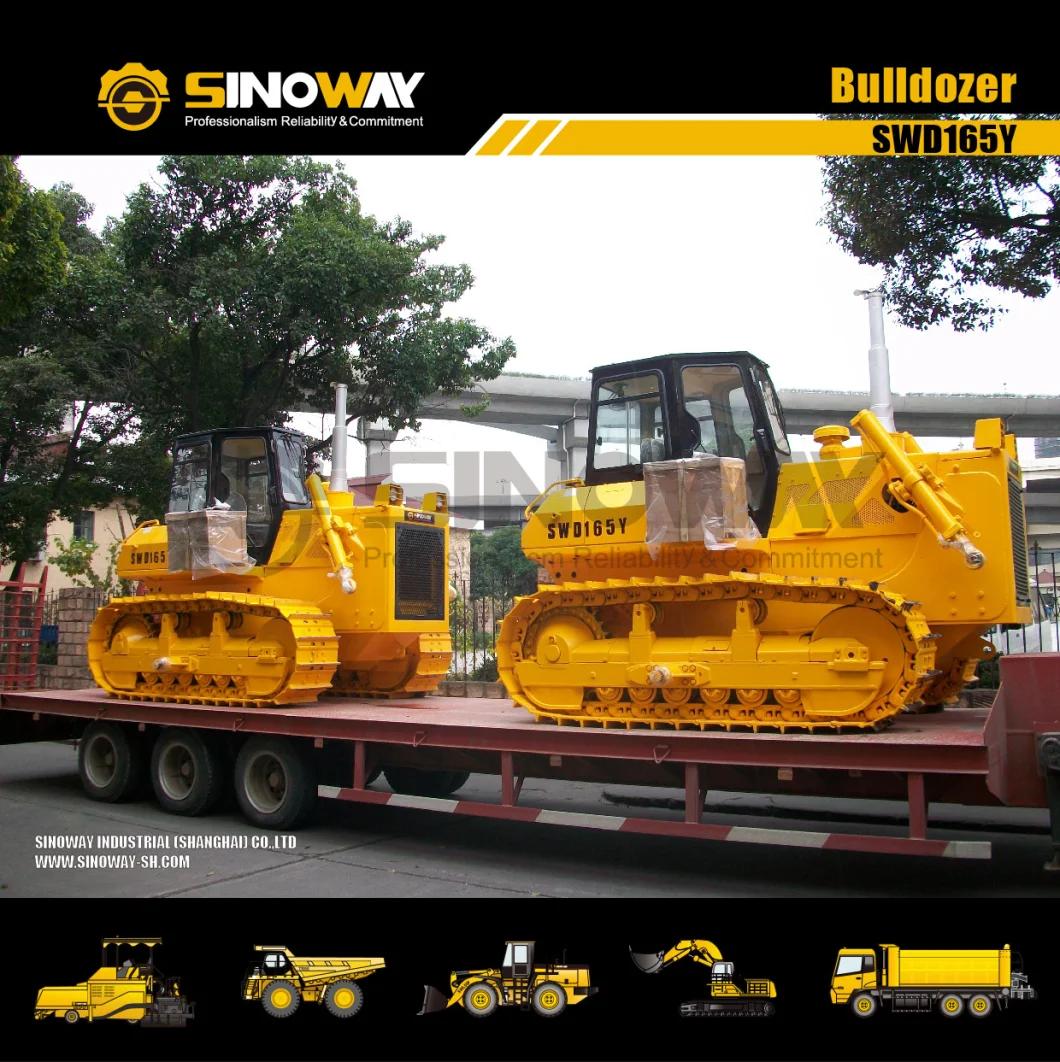

SWD165Y Bulldozer Advantage
1 Equipped with Weichai engine features the advantages of robust power, easy maintenance, and high combustion efficiency and conformed to China-III emission regulation.

2 The planetary power shift transmission with forced lubrication and the hydraulically assisted steering system achieve light operations of the machine and feature high transmission power and high productivity.

3 Ternary single-stage and single-phase hydraulic converter torque features a simple structure, which improves the machines' auto-adaption. It can stably transmits the power to driving system, which can effectively protect the driving system and improve the stability and comfort when operating the bulldozers under complicated working conditions.

4 The swing type balance beam suspension structure with splayed beam is connected with the frame and traveling system to transmit the working load and impact load to the main frame during working, which effectively protect the machine.

5. Hexahedral cab provides the operator with spacious and broad visual field. Its outstanding sealed structure effectively can prevent the dust and noise, which can provide roomy comfort with high-power A/C.

Engine
Model	WEICHAI
Type	Six-cylinder,water-cooled turbocharged,mechanical injection
Rated power	131KW
Rated speed	1900rpm
Implement Hydraulic System
Hydraulic flow rate	243L/min
Hydraulic pressure	14MPa
Pump type	Double gear pump
Control valve	Hydraulic operated,pilot control
Under Carriage System
Sprocket	Segmented
Number of track rollers (each side)	6
Number of carrier rollers (each side)	(4 single, 2 double)
Number of front idler (each side)	21
Track type	Single grouser
Track tension	1880mm
Track pitch	203mm
Track width	510mm
Number of track shoes (each side)	37
Track length on ground	2430mm
Ground clearance	400mm
Main Technical Specification
Operating weight(without ripper)	17800Kg
Ground pressure(without ripper)	0.072MPa
Grade ability	58%
Overall dimensions (L×W×H,without ripper)	5085×3416×3254mm
Max. tractive force	139.6 KN
Working Equipment
Blade type	Straight
Width	3416mm
Height	1150mm
Max. digging depth	540mm
Max. lift above ground	1095mm
Tilting angle	8.5°
Blade capacity	4.5m3
Transmission System
Gear box	Power shift, forced lubrication,planetary gear
Torque converter	3 elements, single stage,single phase
Final drive	Spur gear, double reduction,splash lubricated
Gear shifts(Forward/Reverse)Travelling speed(km/h)	F3/R3
Forward/Reverse I	3.3/4.0
Forward/Reverse II	6.3/8.0
Forward/Reverse III	11.4/13.9
Service Capacities
Fuel tank	315L
Water tank	62.8L
Steering clutch	Hydraulically actuated, multiple-disc oil clutches,spring pressed,hydraulic separated
Steering brake	Oil, two-direction floating band with mechanism foot pedals, hydraulic boosted.

Sinoway treat Service as a significant segment in our value chain. All of our service-related businesses-aftermarket parts, technical support, training, OEM Solutions are based on offering more professional service, extending the life of each machine we delivered.

For special key projects and VIP customers, Sinoway offer on-site field service for a certain period, to allow the team of our users with a better understanding on the operating and maintenance, to help training the service team of their own, or give a proposal on the maintenance solutions according to the special operating environment. With the field service, we are confident to enable our machinery reduce the downtime at maximum and help our clients fulfill the project smoothly and on time.

Condition	Brand New
Warranty	One year or 2000 working hours, whichever comes earlier.
Shipment Terms	FOB, CFR, CIF, CIP DAF
