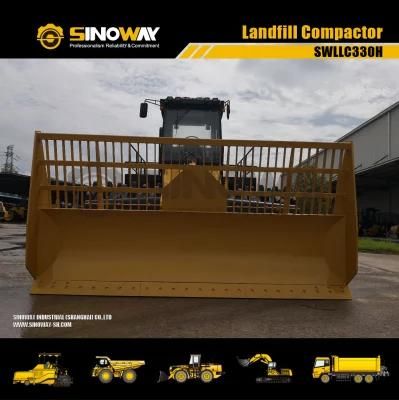

China Popular 355HP 33 Ton Hydraulic Landfill Compactor
Sinoway Industrial (Shanghai) Co., Ltd.- After-sales Service：Available
- Warranty：1 Year
- Type：Landfill Compactor
- Working Method：Steel Wheel
- Axle：Triaxial Three-Wheel
- Grinding Wheel Type：Sheep Foot Roller
Base Info
- Model NO.：SWLLC330H
- Compaction Depth：40cm
- Engine Type：Diesel Engine
- Travel Speed：30cm,s
- Centrifugal Force：40KN
- Certification：ISO 9001:2000, ISO 9001:2008, ISO14001
- Condition：New
- Rolling Width：2910 mm
- Rated Power：260 Kw
- Operation Weight：33000 Kg
- Engine Make：Cummins
- Service Brake：Hydrostatic
- Teeh Number：60,50
- Oil Tank Capacity：440L
- Hydraulic Tank Capacity：305L
- Transport Package：Naked
- Specification：ISO
- Trademark：SINOWAY
- Origin：China
- HS Code：84294990
- Production Capacity：100 Units,Month
Description
Man Technical SpecificationsOperating weight 33000kg Front axle load 16500kg Rear axle load 16500kg Overall dimension 8090 x 3800 x 3755mm Wheelbase 3500mm Ground clearance 610mm Wheel width (F/R) 1350/1150mm Wheel diameter (F/R) 1620/1620mm Teeth No. per wheel (F/R) 60/50 Engine Cummins Rated power 260kw Rated speed 2100rpm Electric system 24V Drive mode 4 x 4 Travelling speed I (F/R) 0 - 4km/h Travelling speed II (F/R) 0 - 11.5km/h Gradeability 100° Blade width 3800mm Blade height 2000mm Blade lifting height 1200mm Blade depth 200mm Service brake Hydro-static, actuate 4 wheels Parking/emergency brake Mechanical, brake shoe actuate Steering type Hydraulic, middle articulated, moveable Steering angle ±40° Transverse swing angle ±15° Min. steering radius at the front wheel 6750mm Fuel tank 440L Hydraulic tank 305L
