• Model NO.：LDS1500G
• Color：Cement Grout Plant
• Drive Type：Electric Motor, Diesel Engine, Gasoline Engine
• Output：1.5-3m 3 ,H
• Max. Aggregate：10mm
• Requested Air Compressor：3m 3 ,Min, 0.5MPa Pressure
• Transport Package：Plastic Wrap, Plywood Case, Free-Fumigation
• Specification：ISO
• Trademark：Leadcrete
• Origin：China
• HS Code：8413609090
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. LDS1500G Color Cement Grout Plant Drive Type Electric Motor, Diesel Engine, Gasoline Engine Output 1.5-3m 3 /H Max. Aggregate 10mm Requested Air Compressor 3m 3 /Min, 0.5MPa Pressure Transport Package Plastic Wrap, Plywood Case, Free-Fumigation Specification ISO Trademark Leadcrete Origin China HS Code 8413609090 Production Capacity 5000 Sets/Year

Product Description

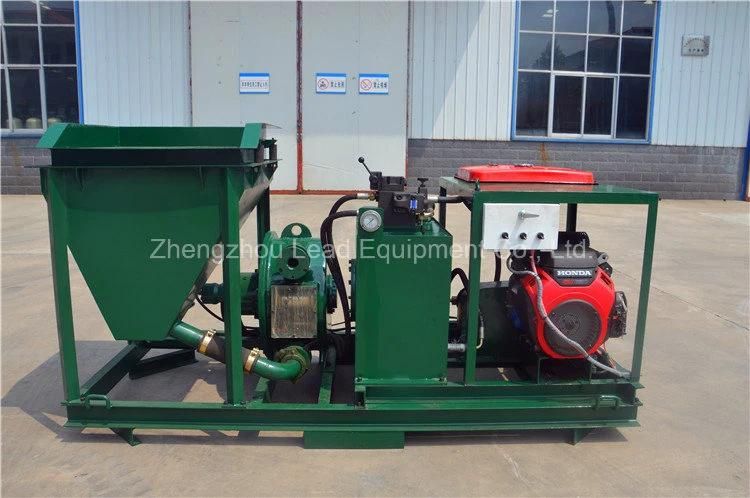

LDS1500G gasoline engine type shotcrete small concrete pump



LDS1500G gasoline engine type shotcrete small concrete pump description:
The LDS1500 is a lightweight shotcrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel.
The LDS1500G shotcrete concrete pump adopt a Honda GX390 gasoline engine.
Note: we also supply electric motor type and diesel engine type shocrete small concrete pump.
Chinese squeeze hose and Trelleborg squeeze hose are also for optional.


LDS1500G gasoline engine type shotcrete small concrete pump features:
1) Highly reliable direct drive planetary gearbox
2) Infinite speed variation
3) Easily operating on site work
4) Standard spare part supply

LDS1500G gasoline engine type shotcrete small concrete pump application:
It's designed specifically for the dome-building process. It can be used for pumping concrete, grout and shotcrete.

Item	Description
Pressure	1.5 Mpa ( Chinese squeeze hose )/3.5 Mpa ( Trelleborg squeeze hose )
Output	1.5-3m 3 /h
Max. Aggregate	10mm
The Squeeze Hose	ID 50mm
Conveying Hose	ID 38mm
Squeeze pump	LH50-455
Power	Honda GX390 Gasoline engine
Overall Dimension	1900x850x1250mm
Hopper volume:	200 Liter
Oil tank	120 Liter
Weight	610kg
Requested air compressor	3m 3 /min, 0.5Mpa Pressure
Vertical Conveying Distance	15 m ( Chinese squeeze hose )/30 m ( Trelleborg squeeze hose )
Horizontal Conveying Distance	40 m ( Chinese squeeze hose )/80 m ( Trelleborg squeeze hose )
