• Model NO.：XD121E
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Yellow (Other Color Can Be Optional)
• Engine：Shangchai
• Operating Weight：12 000kg
• Final Drive：Gear
• Brake System：Hydraulic, Mechanical Pin Lock
• Weight on Front Drum：10000 Kg
• Static Linear Load：470n,Cm
• Min. External Turning Radius：6500mm
• Vibration Frequency (High/Low)：33,28 Hz
• Drum Diameter：1600mm
• Transport Package：Nude Packing
• Specification：8690*3500*3698
• Trademark：XCMJ
• Origin：China
• HS Code：8401200000
• Production Capacity：1000,Per

Basic Info.

Model NO. XD121E Certification ISO9001: 2000, CE Condition New Color Yellow (Other Color Can Be Optional) Engine Shangchai Operating Weight 12 000kg Final Drive Gear Brake System Hydraulic, Mechanical Pin Lock Weight on Front Drum 10000 Kg Static Linear Load 470n/Cm Min. External Turning Radius 6500mm Vibration Frequency (High/Low) 33/28 Hz Drum Diameter 1600mm Transport Package Nude Packing Specification 8690*3500*3698 Trademark XCMJ Origin China HS Code 8401200000 Production Capacity 1000/Per

Product Description

Qingdao Chary Machinery CO., LTD
Contact Person: Claudia Wang
Mobile: +86 1350 639 0903


Product Description

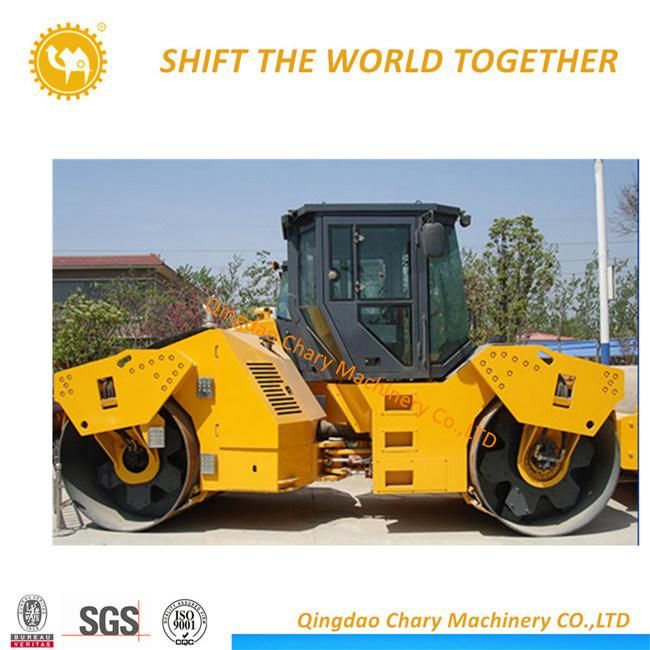

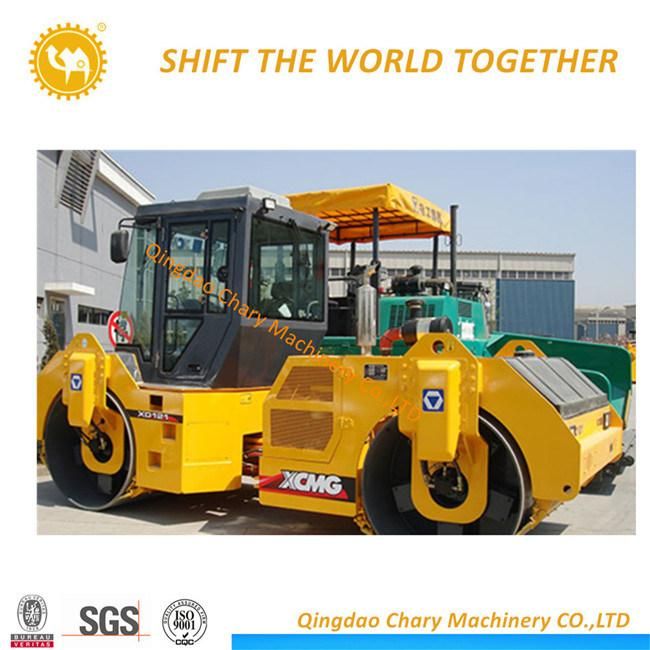

        12ton double drum vibration XD121E road roller for sale










Comfortable driving
Spacious and bright cab features wide visibility and comfortability, and the suspensible seat, speaker and safety belt are equipped in the cab.

Unique structure
XCMJ unique cylinder structure features strong rigidity and strength, and it adopts the special bearing, high limit speed and strong carrying capacity to avoid the polarization of the vibrating drum.
The lubrication method of the vibration bearing is simple and convenient, and the fault of the lubrication system is low.

Convenient control

Convenient operation
The control panel could be adjusted in 180 degrees, and the operator could easily operate the machine during Forward and Reverse, and each compaction mode has good visibility.
It adopts hydraulic drive and electric-hydraulic control technology, contributing to simple operation.
Automatic watering and vibrating system improves the flatness of the road compaction.
XCMJ patented crab mechanism and dual-articulated steering could ensure staggering distance of 200mm between the front and rear drums, which is convenient for the side compaction and turning compaction. When the dual-articulation is activated simultaneously, the min. turning radius could be 6000mm.
Adjustable resin mud-scraper features easy operation.
Leading in industry of compaction and watering function
The vibration frequency is adjustable in certain range, two gears of amplitude adapt to the asphalt compaction of different depth.
The unique separate vibration function. The front and rear drums could vibrate at the same time, and the drum could vibrate separately, improving the compaction efficiency.

Excellent configuration
The key imported parts: imported hydraulic plunger piston and motor feature higher centrifugal force and theoretical gradeability. The watering pump and vibration bearing are all of imported parts. There are multiple configurations for the engine to choose to meet various conditions.
Large capacity plastic water tank, three-stage filtering, and double watering systems and interval 7-gear watering ensure the smooth watering.

Convenient repair
The engine hood could be opened from three sides, and the engine and hydraulic pump and each control valve could be checked easily.


Type	Unit	XD121E
Operating weight (including cab)	kg	12300
load on front drum	kg	6150
Load on rear wheels	kg	6150
Static linear load	N/cm	295/295
Speed	km/h	0~10
Gradeability in theory	%	30
Minimum turning radius	mm	4770/6900
Crab-walking distance	mm	160
Minimum ground clearance	mm	340
Wheel base	mm	3700
Steering angle	± °	35
Swing angle	±°	8
Vibration frequency	Hz	45-48
Nominal amplitude	mm	0.41/0.8
Centrifugal force	kN	85/140
Model and manufacturer		DEUTZ BF4M2012C
Rated rotating speed	r/min	2300
Rated power	kW	98
Rated oil wear	g.kw/h	205
Water tank capacity	L	2×450
Fuel tank capacity	L	210

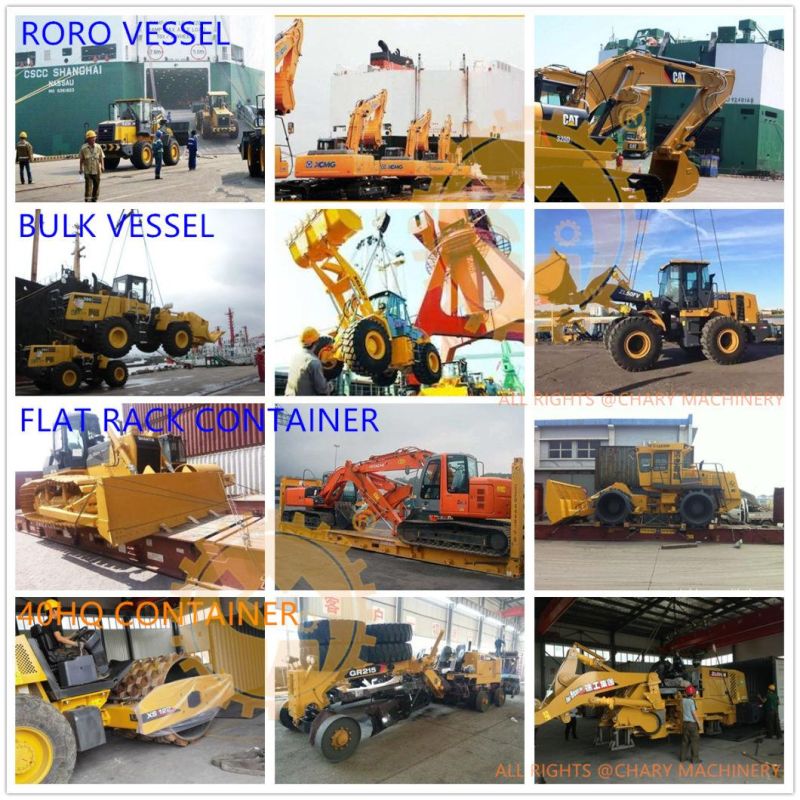

MULTIPLE SHIPPING WAYS TO SAVE SHIPPING FREIGHT FOR YOU



WHY CHOOSE US?

Experience
10 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
Has solid technology, advanced equipments ;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with SGS,BV certifcate as well.

Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.


OUR SERVICE
(1) More than 300 workers ,large and advanced production;
(2) Have professional engineer,can offer the best solutions;
(3) With keeping good relation with SINOTRUK, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.
(4) Build strict QC team to guarantee the quality;
(5) Own good sales team, can offer warm follow-up service.

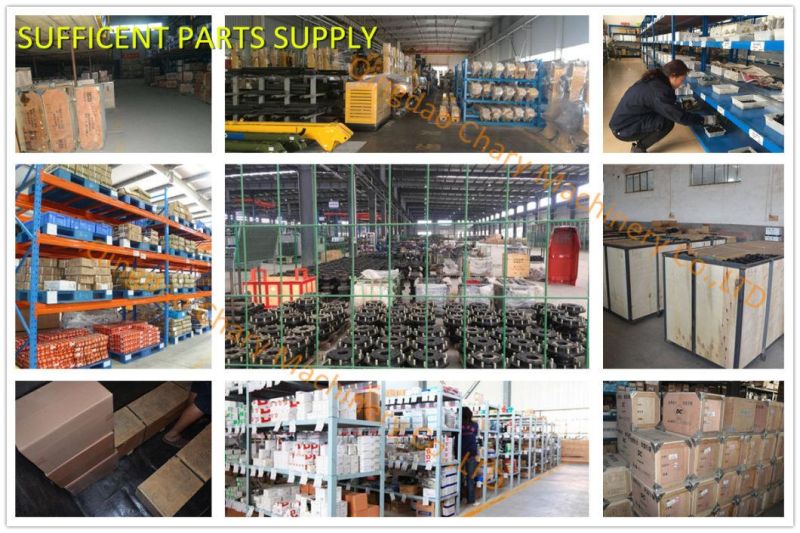

(6) Spare Parts Supply:
