• Model NO.：222J
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：Yellow (Other Color Can Be Optional)
• Engine：Cummins
• Operating Weight：22 000kg
• Final Drive：Gear
• Brake System：Hydraulic, Mechanical Pin Lock
• Weight on Front Drum：10000 Kg
• Static Linear Load：470n,Cm
• Min. External Turning Radius：6500mm
• Vibration Frequency (High/Low)：33,28 Hz
• Drum Diameter：1600mm
• Transport Package：Nude Packing
• Specification：6690*3500*3698
• Trademark：Chary
• Origin：China
• HS Code：8401200000
• Production Capacity：1000,Per

Basic Info.

Model NO. 222J Certification ISO9001: 2000, CE Condition New Color Yellow (Other Color Can Be Optional) Engine Cummins Operating Weight 22 000kg Final Drive Gear Brake System Hydraulic, Mechanical Pin Lock Weight on Front Drum 10000 Kg Static Linear Load 470n/Cm Min. External Turning Radius 6500mm Vibration Frequency (High/Low) 33/28 Hz Drum Diameter 1600mm Transport Package Nude Packing Specification 6690*3500*3698 Trademark Chary Origin China HS Code 8401200000 Production Capacity 1000/Per

Product Description

Qingdao Chary Machinery CO., LTD
Contact Person: Claudia Wang



Product Description

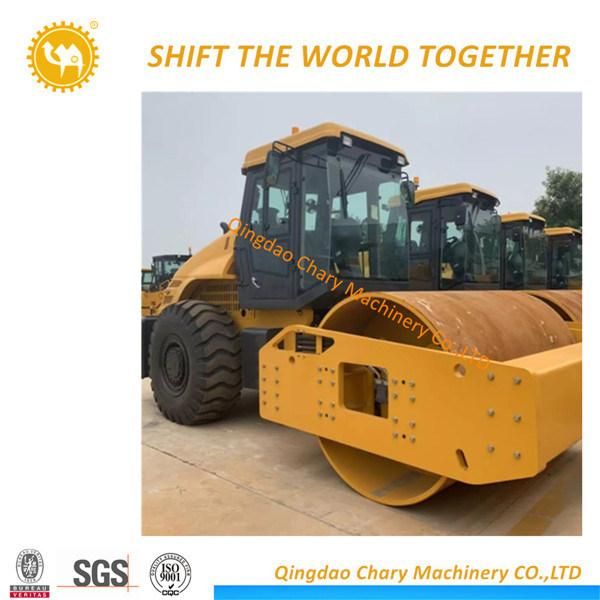

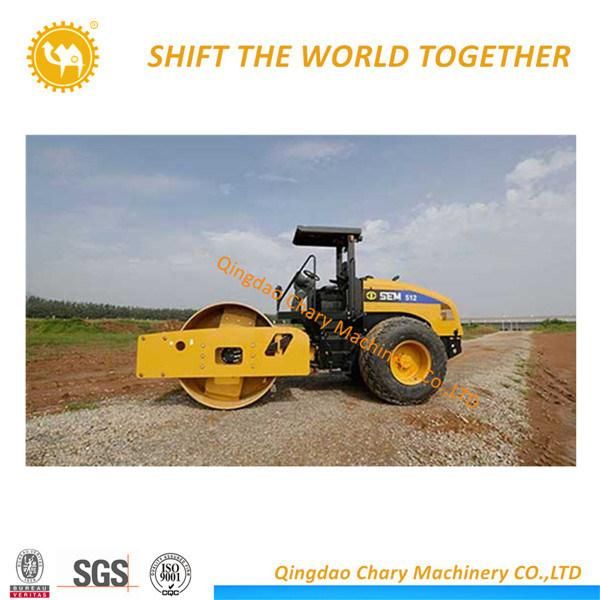

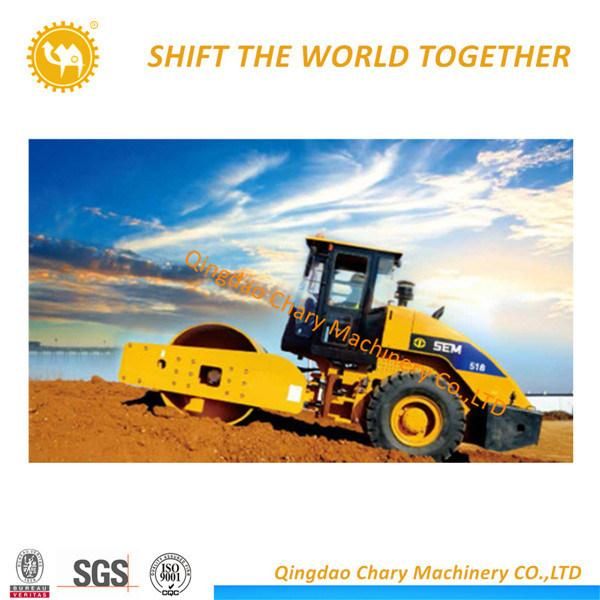

       22t Single Drum Vibration Road Compactor Roller for sale



Comfortable driving
ROPS driving cab is equipped with an air conditioner, radio and suspended chair. It has a bigger space and broad view inside.
Unique structure
Unique cylindrical drum structure features high rigidity and intensity. Short cylindrical bearing with high limited rotation speed provides high load - carrying capacity. The symmetrical arrangement of the right and left vibration chambers avoids the polarization of the vibratory drums.
Easy operation
According to the ergonomics theory, all meters, indicators and buttons are centered on the operation panel. The throttle handle and FWD/REV handle are put on the right side to improve the sense of comfort.
The failure diagnosis screen with alarms can avoid any unnecessary downtime.
The simple and easy lubrication mode ensures an extremely low failure rate of the lubricating system.
XCMJ is the first manufacturer to adopt the central engine for effortless maintenance.
Leading compacting performance
The unique hydraulic driving system design and heavy vibratory wheel weight make the XCMJ's roller highly advanced in compaction ability.
Heavy loaded drive axle and nonskid differential mechanism can furthest transfer the output power as well as the tractive force of engines.
Outstanding configuration
The key components are provided by international suppliers (hydraulic pump, motor, drive axle, vibratory bearing and rotating alarm lamp), it also has several engine models for selection to meet different working conditions and customer's needs.
Multiple functions
The split convex block drum (below 16t) and integral convex block drum (18-20t) can be selected according to the customer's requirement.
Easy maintenance
The aural and visual alarm device can timely provide the maintenance message to avoid the machine faults and to shorten the down time.
The self-opening engine shield makes the engine and hydraulic pump easy to access to.


Item	Unit	XS222J
Operating weight	kg	20000
Weight on front drum	kg	10000
Static linear load	N/cm	516
Speed range	km/h
Speed I		2.63
Speed II		5.3
Speed III		8.6
Theoretical gradeability	%	30
Min. external turning radius	mm	6500
Steering angle	°	±33
Oscillating angle	°	±10
Vibration frequency (high/low)	Hz	33/28
Nominal amplitude (high/low)	mm	1.86/0.93
Excitation force (high/low amplitude)	kN	374/290
Drum diameter	mm	1600
Drum width	mm	2130
Engine model		SC8D185G2B1
Rated power @2000 r/min	kW	136
Engine oil consumption	g/kW.h	223
Hydraulic oil tank capacity	L	170
Fuel tank capacity	L	240

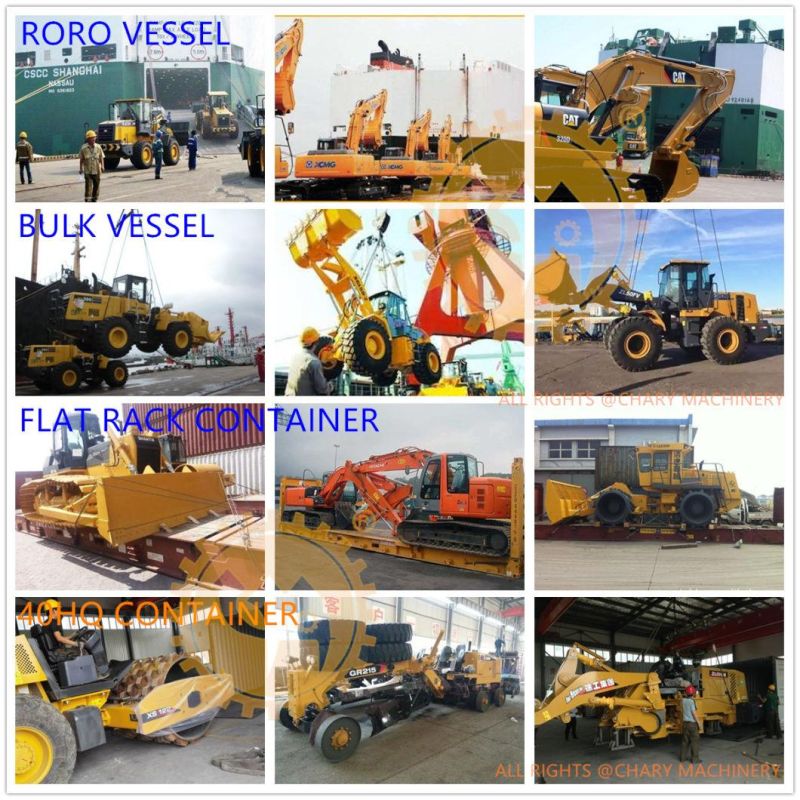

MULTIPLE SHIPPING WAYS TO SAVE SHIPPING FREIGHT FOR YOU




WHY CHOOSE US?

Experience
10 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
Has solid technology, advanced equipments ;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with SGS,BV certifcate as well.

Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.


OUR SERVICE
(1) More than 300 workers ,large and advanced production;
(2) Have professional engineer,can offer the best solutions;
(3) With keeping good relation with SINOTRUK, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.
(4) Build strict QC team to guarantee the quality;
(5) Own good sales team, can offer warm follow-up service.

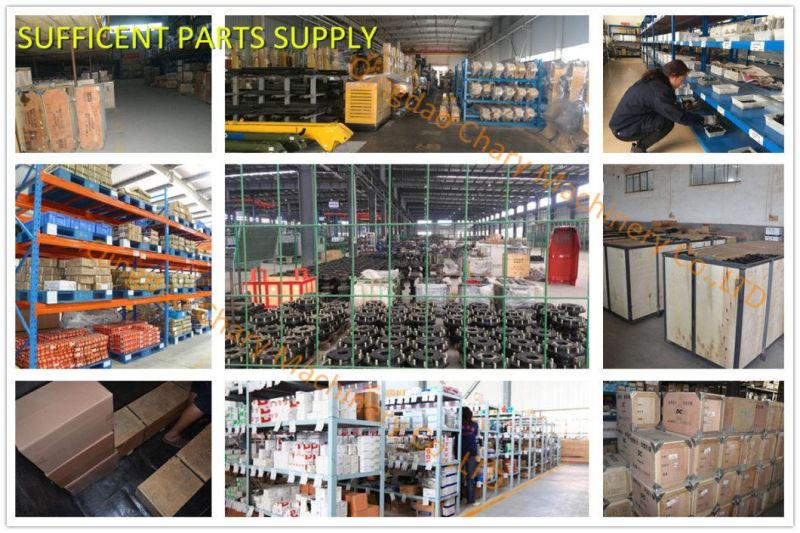

(6) Spare Parts Supply:
We have our own spear parts departments,have strong production and distribution capability. We can satisfy your demand within 2-7 days. We always do our best to solve the problems, and put our customers' interests in the first place. And We can Supply Spare Parts For Many Brands, Such as SINOTRUK, BEIBEN, FAW, FOTON, IVECO, SHACMAN, SHANTUI, CIMC, DONGFENG and so on.


FAQ

1, How to purchase the trailer truck from your company?
You can choose the model from our website, also you can tell our sales manger your specific requirements and we will recommend the suitable model to you. After confirming the model and price, we can sign the contract.

2,How to ensure product quality?
Firstly,we passed the international quality system certification. Secondly, Made in China Group has conducted field certification for our factory. Finally,You can entrust third party individuals or organizations to inspect our products before delivery.

3, How to visit your factory?
After you arriving at China, you can fly to Qingdao airport. Qingdao airport is located in Qingdao City, Shandong Province. Our driver will meet you at Qingdao airport and take you to our factory by car.



WELCOME TO CONTACT US

If you are interested in any of construction machinery for sale,please feel free to contact me. Also, welcome to China and visit our construction machinery factory for construction machinery price or to discuss more details.

Qingdao Chary Machinery CO., LTD
Contact Person: Claudia Wang
