• Model NO.：LZ-3D
• Certification：ISO9001: 2000, CE, SGS
• Condition：New
• Color：Customized
• Other Type：Electric Motor, Air Motor
• Rated Output：2-3m 3 ,H
• Max. Horizontal Conveying Distance：200m
• Max. Aggregate Size：10 mm
• Conveying Hose Inner Diameter：38,51mm
• Operating Air Pressure：0.2-0.4MPa(29-58psi)
• Air Consumption：5~6m 3 ,Min
• Transport Package：Plastic Wrap, Plywood Case
• Specification：ISO, CE, SGS
• Trademark：Leadcrete
• Origin：China
• HS Code：84743100
• Production Capacity：5000 Sets,Year

Basic Info.

Model NO. LZ-3D Certification ISO9001: 2000, CE, SGS Condition New Color Customized Other Type Electric Motor, Air Motor Rated Output 2-3m 3 /H Max. Horizontal Conveying Distance 200m Max. Aggregate Size 10 mm Conveying Hose Inner Diameter 38/51mm Operating Air Pressure 0.2-0.4MPa(29-58psi) Air Consumption 5~6m 3 /Min Transport Package Plastic Wrap, Plywood Case Specification ISO, CE, SGS Trademark Leadcrete Origin China HS Code 84743100 Production Capacity 5000 Sets/Year

Product Description

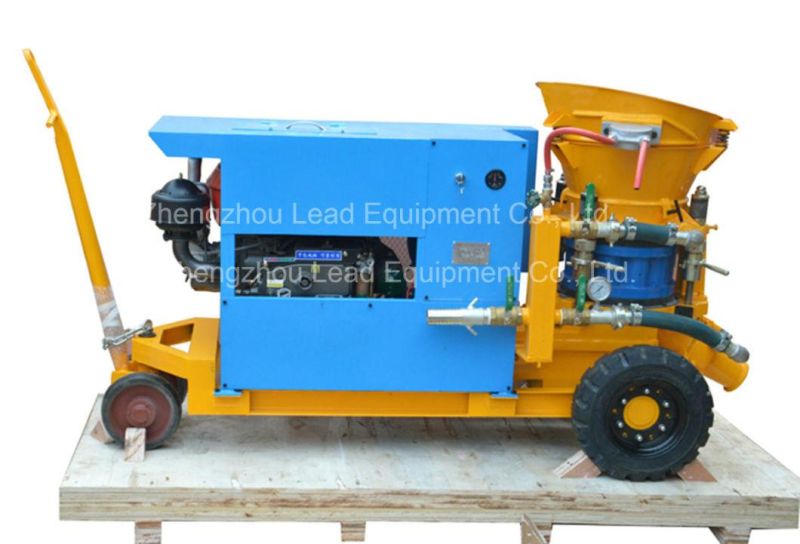

LZ-3D dry mix gunite diesel engine shotcrete machine concrete sprayer


Description:
LZ-3 concrete sprayer /shotcrete equipment/Shotcrete machine/Gunite machine /Concrete Spraying Machine is small-sized shotcrete machine for the dry spraying process.
LZ-3 shotcrete equipment / shotcrete machine can be used as well for small jobs, such as joint filling, swimming pool, refractory application and extensive slope consolidation work, etc.
LZ-3 concrete sprayer is available in following versions:Basic: electric drive can be combined with tyre chassis
Extended (optional): air motor or diesel drive combined skid or rail-wheel

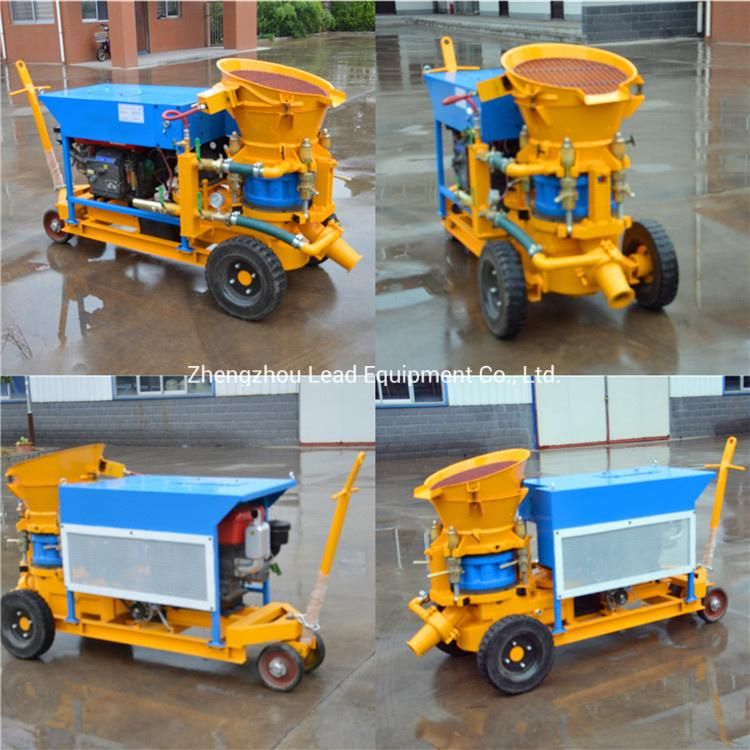

Other type LZ-3 concrete sprayer:

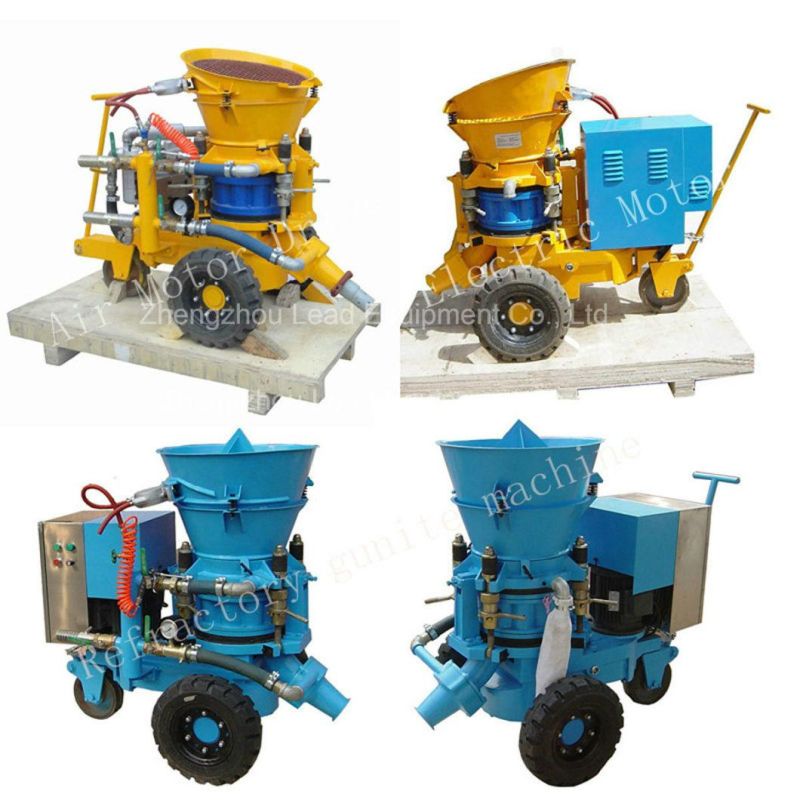

Other type:

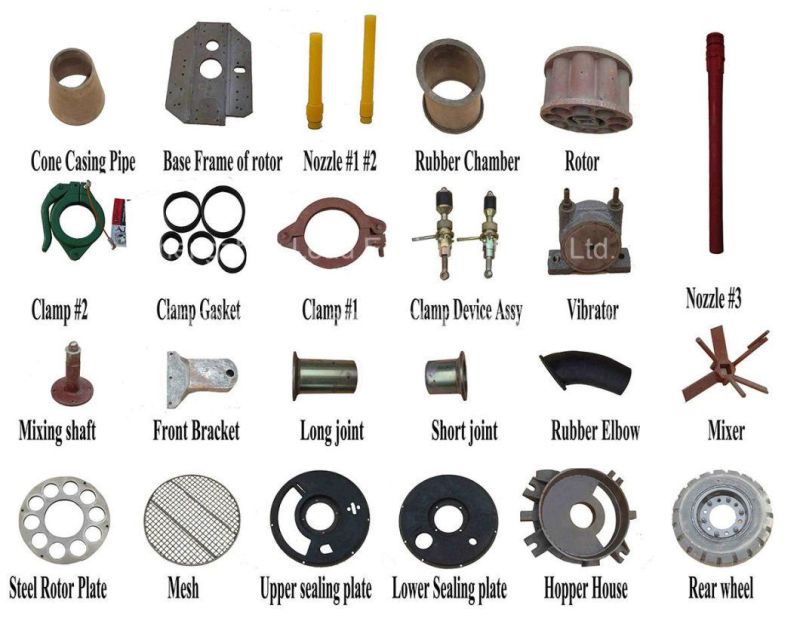

Spare parts:

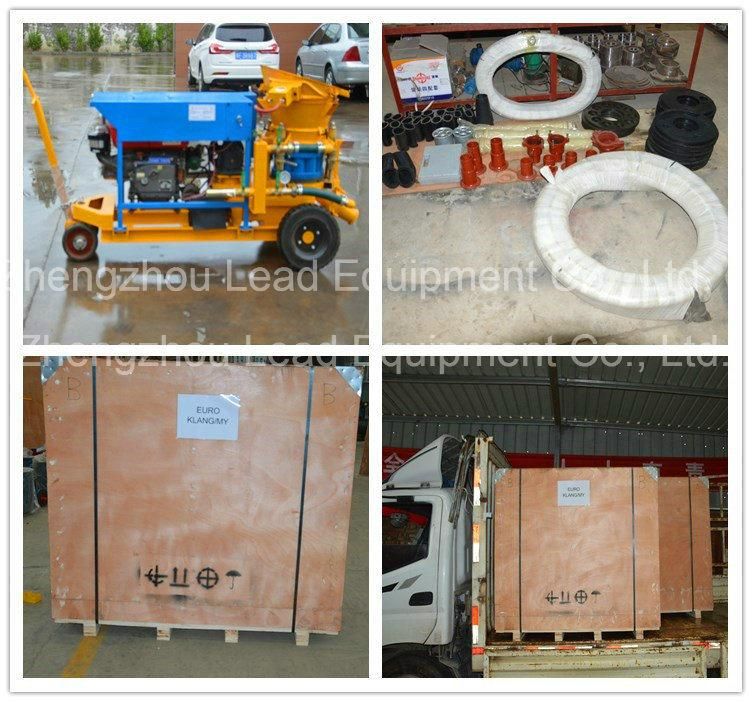

Package:




Rated Output	2-3m 3 /h
Max. Horizontal Conveying Distance	200m
Suitable Mix Ratio(Cement/Sand)	≤ 1: 3~5
Max. Aggregate Size	Φ 10 mm
Conveying Hose Inner Diameter	38/51mm
Operating air Pressure	0.2-0.4MPa(29-58PSI)
Air Consumption	5~6m 3 /min(180-215CFM
Diesel Engine	10hp,2200rpm
Diesel Engine Starting	Electric start
Clutch Type in Diesel Engine	Automatic Clutch
Material Charging Height	0.9m
Rotor Speed	9-13r/min
Overall Dimension(L× W× H)	1.8× 0.8× 1.2m
Net Weight	480kg
