- Model NO.：SEM510
- Compaction Depth：30cm
- Engine Type：Diesel Engine
- Travel Speed：30cm,s
- Certification：CS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Tread Width：1,600
- Drum Width：2,130
- Drum Diameter：1,590
- Transport Package：Suitable for Ocean Shipment
- Specification：5, 815*2, 290*3, 130
- Trademark：SEM
- Origin：China
- HS Code：84294011
- Production Capacity：1000 Set Per Month
Basic Info.
Model NO.
SEM510
Compaction Depth
30cm
Engine Type
Diesel Engine
Travel Speed
30cm/s
Certification
CS, ISO 9001:2000, ISO 9001:2008
Condition
New
Tread Width
1,600
Drum Width
2,130
Drum Diameter
1,590
Transport Package
Suitable for Ocean Shipment
Specification
5, 815*2, 290*3, 130
Trademark
SEM
Origin
China
HS Code
84294011
Production Capacity
1000 Set Per Month
Product Description

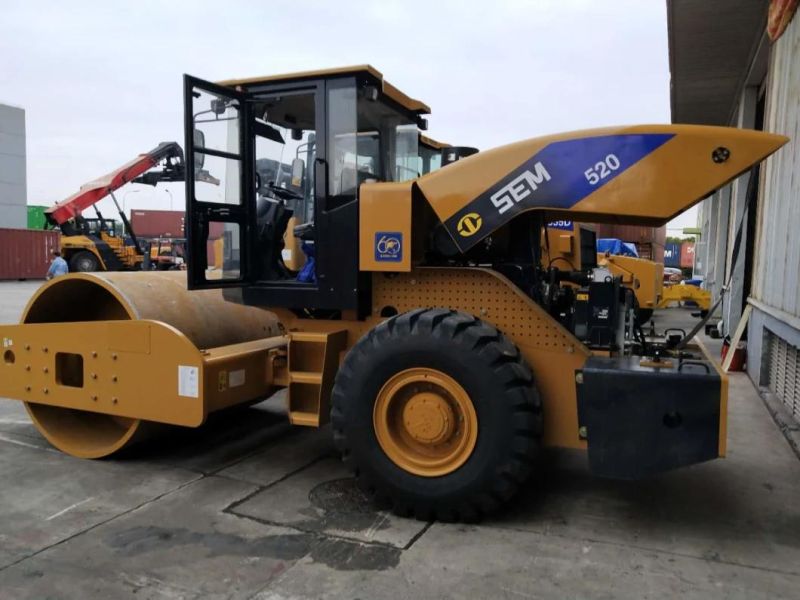

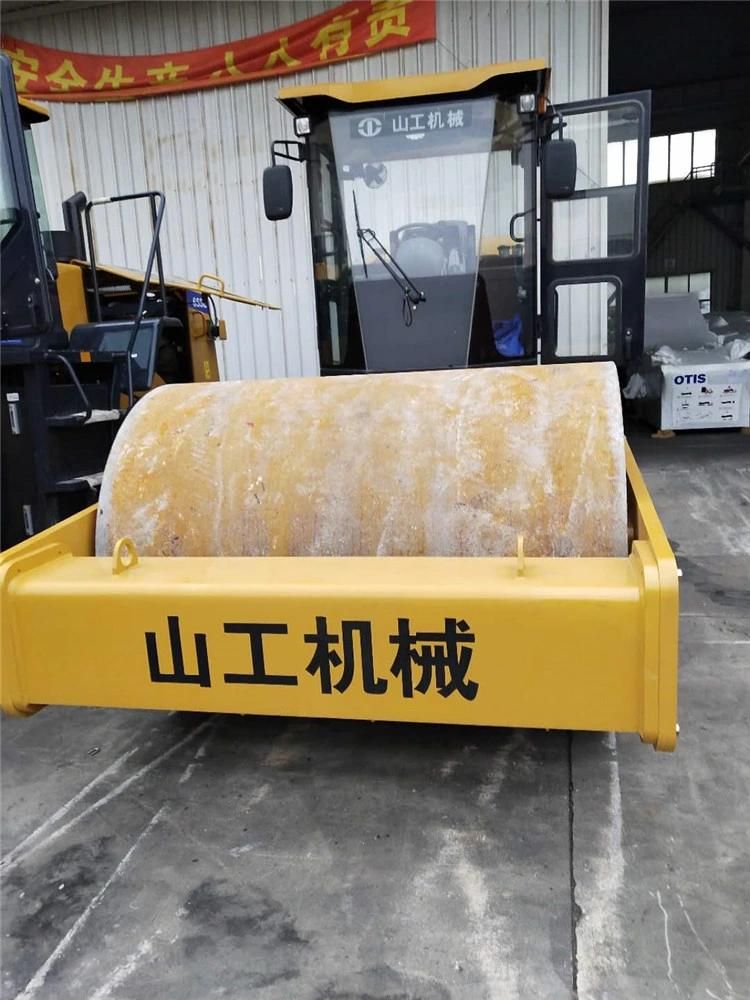

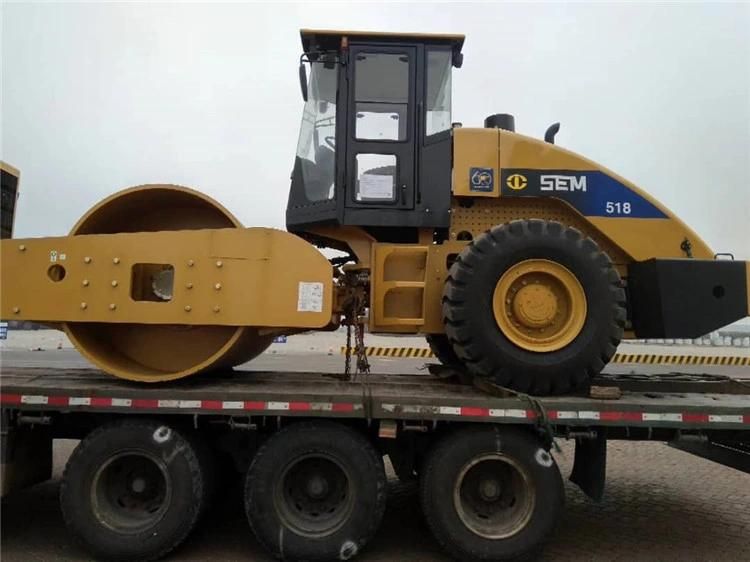

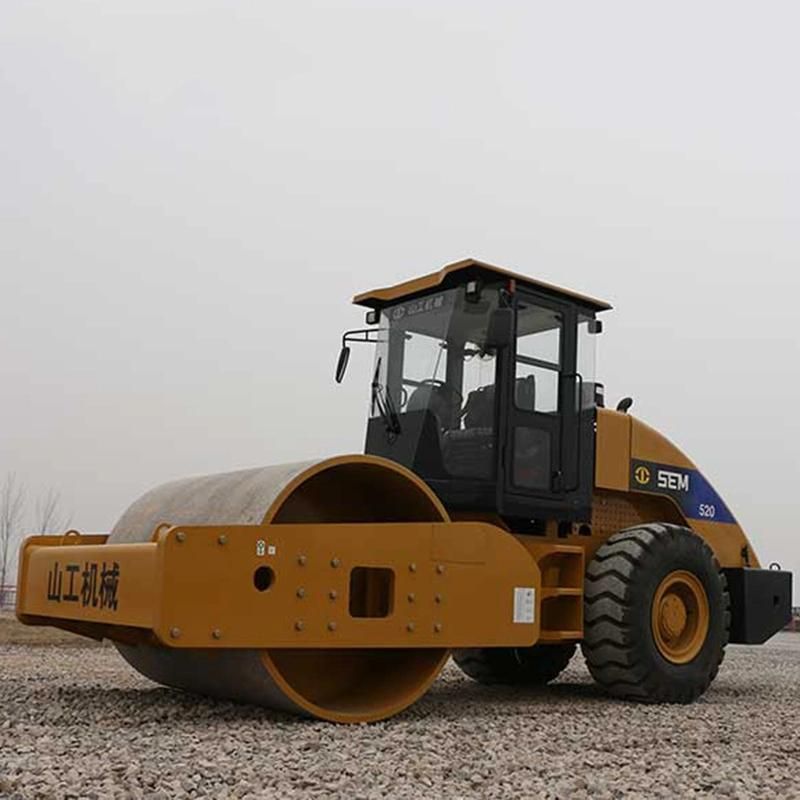

Catpiller Sem 10 Tons Vibratory Road Roller Sem510 with Single Drum
High Efficiency
- Load sensing vibration hydraulic, propel system reduce system heat and fuel consumption
- Dual frequency and amplitude with close-center vibration hydraulic system, easy to operate and improve productivity
- Optimized travel speed with the vibration frequency
- Rear axle equipped with Limited Slip Differential (LSD) for better maneuverability
Safety
- New dashboard with 3 stage alarm monitoring
- Automatic Parking brake
- Neutral start protection
Reliability
- Advanced vibration system, full sealed housing to extend bearing life
- World class piston pump and motor for vibration and propel hydraulic system
- Anti dust adopt and switch for electric system capacity IP67
| Item | Parameters | Unit |
| Engine model | - | |
| Rated power | 97.5 | kW |
| Rated speed | 2200 | r/min |
| Emission | China StageII | |
| Composite Work Cycle Fuel Consumption (l/hour) | 560/1400-1600 | N.m/rpm |
| Machine Mass w/Std Config | 10000 | kg |
| Weight at Drum w/Std Config | 5900 | kg |
| Weight on Rear Axle | 4100 | kg |
| Static Linear Load | 217 | N/cm |
| Max. Grade Ability w/o vibbration | 45 | % |
| Articulated Angle | 33±1 | ° |
| Turning Radius Inside Drum Edge | 5990 | mm |
| Compaction Width | 2130 | mm |
| Lo Range | 0-5.5 | km/h |
| Hi Range | 0-12 | km/h |
| Full Turn Time | 6±0.5 | s |
| Freqency-Hi/Lo | 33/30 | Hz |
| Amplitude-Hi/Lo | 0.90/1.80 | mm |
| Centrifugal Force-Hi/Lo | 130/215 | kN |
| Machine Dimensions[L*W*H] | 5815*2290*3130 | mm |
| Oscillation Angle | 10±1 | ° |
| Wheelbase | 2900 | mm |
| Tread Width | 1600 | mm |
| Drum Width | 2130 | mm |
| Drum Diameter | 1590 | mm |
| Tire Pressure Setting | 0.35 | Mpa |
