• Model NO.：Srd03
• Certification：ISO 9001:2000
• Condition：New
• Operating Mass (Kg)：2900
• Engine Model：Yanmar 3tnv88
• Rated Power/Rated Speed (Kw/Rpm)：26.9kw,3000rpm
• Static Load Forward/Back：118,110n,Cm
• Width of Steel Wheel：1200mm
• Diameter of Steel Wheel：700mm
• Transport Package：Nude Packing
• Origin：Jiangsu, China
• HS Code：84294019
• Production Capacity：1000,PCS

Basic Info.

Model NO. Srd03 Certification ISO 9001:2000 Condition New Operating Mass (Kg) 2900 Engine Model Yanmar 3tnv88 Rated Power/Rated Speed (Kw/Rpm) 26.9kw/3000rpm Static Load Forward/Back 118/110n/Cm Width of Steel Wheel 1200mm Diameter of Steel Wheel 700mm Transport Package Nude Packing Origin Jiangsu, China HS Code 84294019 Production Capacity 1000/PCS

Product Description

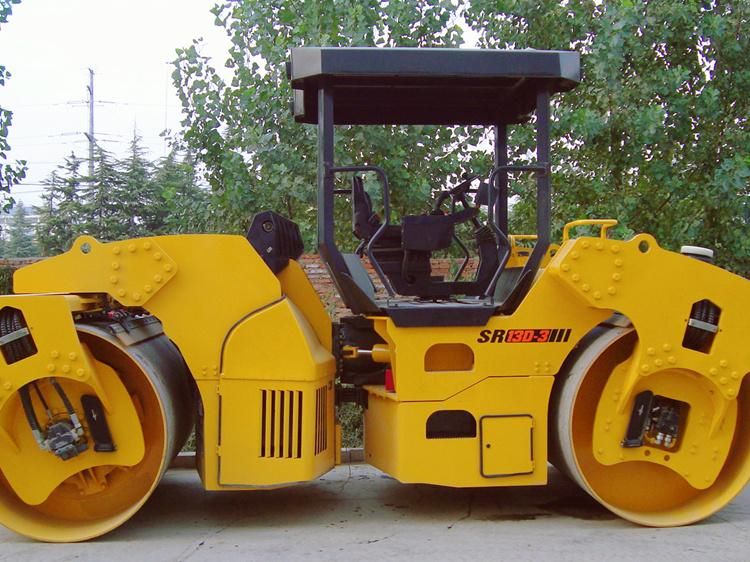

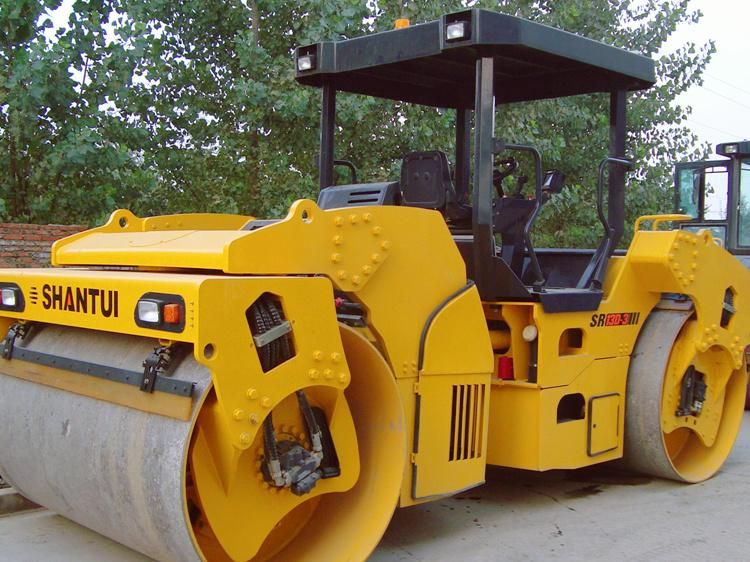

Shantui 3 Ton Mini Mechanical Vibration Double Drum Road Roller

1.Electrically controlled water-spray, highefficient and water- saving
2.Emulsified liquid tank
3.Wear-resistant scraper can be lift and fixed during transportation
4.Forward/reverse and vibrating all controlled by the integrated control lever.
5.The engine start is with neutral safty structure realised by the handle
6.Integrated micro computer control panel

Main technical parameter


Parameter name	SRD03
Performance parameters
Operating weight (Kg)	2900
Exciting force (KN)	30
Vibration frequency (Hz)	60
Nominal amplitude (mm)	0.5
Ground pressure (KPa)	-
Gradeability (%)	40
Engine
Engine model	Yanmar 388
Rated power/rated speed (kW/rpm)	26.9kw/3000rpm
Overall dimensions
Overall dimensions of machine (mm)	2800*1450*2100
Driving performance
Forward speed (km/h)	0-12
Reversing speed (km/h)	0-12
Chassis System
Wheelbase (mm)	1760
Tank capacity
Fuel tank (L)	40
Working device
Compacting width(mm)	1200
