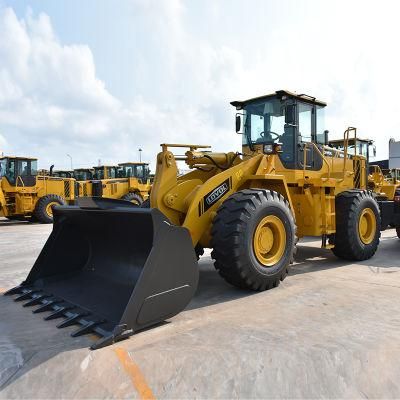

• Model NO.：957H
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Rated Payload：5000kg
• Operating Weight：16300kg
• Transport Package：RO-RO,Bulk,Container
• Specification：8365x2800x3450mm
• Trademark：Changlin
• Origin：China
• HS Code：8429510000
• Production Capacity：1000 Set Per Month

Overall Dimension1Length (with bucket on ground)6920(mm)2Width (to the outside of wheels)2305(mm)3Bucket width2430(mm)4Height (to the top of the cab)3150(mm)5Wheelbase2750(mm)6Tread1855(mm)7Min. ground clearance360(mm)Main Technical Specification1Rated load3000(Kg)2Operating weight10200KG3Rated bucket capacity1.7(m³)4Max. breakout force96kN5Max. dump clearance2934(mm)6Dump reach1043(mm)7Dump angle at any position≥45°8Min. turning radius (1) Outside of bucket5600(mm)(2) Outside of rear wheel5205(mm)9Pivot angle frame38+1°10Oscillating angle of rear axle+11°11Lifting time of bucket≤5.1(sec.)12Lowering time of bucket≤3.0(sec.)13Dumping time≤1.1(sec.)14Traveling speed (Km/h), 3 forward and 3 reverse (1) 1st gear forward7.3(2) 2nd gear forward15.7(3) 3rd gear forward35(1) 1st gear reverse7.8(2) 2nd gear reverse16.8(3) 3rd gear reverse36Diesel Engine1ModelDongfeng Cumins 6BT5.9-C1202TypeDirect injection. Turbocharged. Water cooling3Rated output87(KW)4Inter-bore of cylinder / stroke102/120 (mm)5Total exhaust of cylinder5.9 (L)6Voltage of starting motor24(V)7Rated speed2200(r/min)8Max. torque440(N.M)/1500rpm9Starting typeElectric10Min. specific fuel consumption220(g/Kw.h)Transmission System1. Torque Converter1ModelYJH315A-4 (Shanxi Aer.ospace Power)2Type3-elements. Single stage3Torque ratio3.14Cooling typePressure oil circulating2. Transmission Case1ModelChinese Changlin2TypePowershift, spur gear constantly in mesh3Gear shift position3 forward and 3 reverse gears3. Axle and Tire1Type of main reducerSpiral bevel gear, single stage2Gear ratio of main reducer3.8893Type of final reducerSingle stage planetary4Gear ratio of final reducer4.9415Total ratios19.2166Max. drawing force83kN7Size of tire17.5-25-12PRWorking Device Hydraulic System1Model of oil pumpCBGj2100 (SAE)2System pressure160(kgf/cm²)3Model of multichannel conversion valveGDF32D24(D×L) Dimension of lifting cylinder125×70×697(mm)5(D×L) Dimension of tilt cylinder150×70×470(mm)Steering System1TypeMiddle articulated frame. Full-Hydraulic steering2Model of steering pumpCBG2050 (SAE)3Model of steering gearBZZ1-E400C+FKA-1430204Model of single-channel stable shunt valveFLD-D30H5System pressure14MPa6Dimension of steering cylinder70×40×357(mm)Brake System1Type of traveling brakeAir assisted oil.4 wheel brake2Air pressure7-8(kgf/cm²)3Type of emergency brakeAutomatic cutting air brake4Type of parking brakeDrum brake Manual control cutting off air brakeOil Capacity1Fuel (diesel)130(L)2Engine lubricating oil13.5(L)3Oil for converter and gearbox35(L)4Oil for hydraulic system120(L)5Oil for driving axles (F/R)16/15(L)

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.

       Oriemac is a leading Chinese construction machinery exporter, located in Shanghai, and has introduced top Chinese machinery enterprises and their products to international markets, such as Zoomlion, , Changlin, liugong, Shantui, HBXG,etc.

      Oriemac brings you a wide range of construction machionery series as follows:

-- Lifting Machinery, such as Truck Crane, All Terrain Crane, Rough Terrain Crane, Crawler Crane, and mTruck-mounted Crane
-- Earthmoving Machinery, such as Wheel loader, Mini Loader, Excavator, Bulldozer, Backhoe Loader, and Skid Steer Loader
-- Concrete Machinery, such as Concrete Pump, Trailer-mounted Concrete Pump and Concrete Mixer
-- Drilling Machinery, such as Horizontal Directional Drill, Rotary Drilling Rig and Roadheader
-- Logistics Machinery, such as Telescopic Handler and Forklift
-- Special Vehicle, such as Dump Truck, Semi Trailer, Aerial Work Form, and Fire Truck Our company will offer you the high quality products with a low price, quick delivery, and professional after-sale services.
