• Model NO.：Srd10
• Certification：ISO 9001:2000
• Condition：New
• Operating Mass (Kg)：8000
• Engine Model：Cummins 4bt3.9-C100
• Rated Power/Rated Speed (Kw/Rpm)：75kw,2400rpm
• Forward Speed (Km/H)：F1: 0-6, F2: 0-12
• Reversing Speed (Km/H)：R1: 0-6, R2: 0-12
• Wheelbase (mm)：3300
• Transport Package：Nude Packing
• Origin：Jiangsu, China
• HS Code：84294019
• Production Capacity：1000,PCS

Basic Info.

Model NO. Srd10 Certification ISO 9001:2000 Condition New Operating Mass (Kg) 8000 Engine Model Cummins 4bt3.9-C100 Rated Power/Rated Speed (Kw/Rpm) 75kw/2400rpm Forward Speed (Km/H) F1: 0-6, F2: 0-12 Reversing Speed (Km/H) R1: 0-6, R2: 0-12 Wheelbase (mm) 3300 Transport Package Nude Packing Origin Jiangsu, China HS Code 84294019 Production Capacity 1000/PCS

Product Description

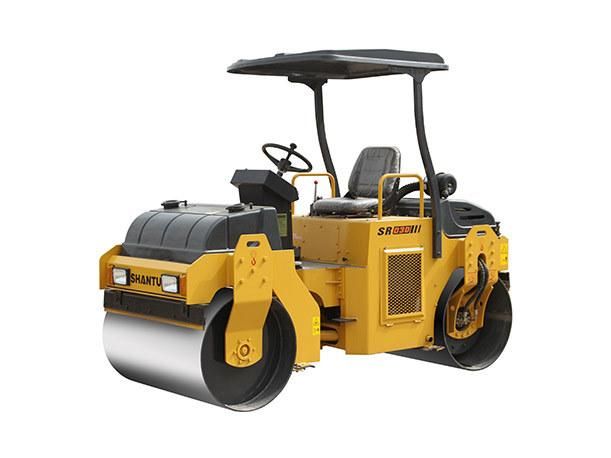

Easy maintenances Shantui 13ton Double-Drum Road Roller Sr13D-3

1.Two big anticorrosive sprinkling cisterles connected design, large capacity, electric control pressure intermittent sprinkling water.
2.Equipped with cab, optional air-conditioning or anti-roll frame
3.The overall shape is beautiful with the streamline design, and the console have a good view.
4Hydraulic walking brake, electric control disc parking brake, equipped with emergency towing device, good safety performance
5.The articulated steering makes it flexible.

Main technical parameter

Parameter name	SRD10
Performance parameters
Operating weight (Kg)	10000
Exciting force (KN)	110/65
Vibration frequency (Hz)	40/46
Nominal amplitude (mm)	0.75/0.35
Ground pressure (KPa)	-
Gradeability (%)	30
Engine
Engine model	Cummins 4BT3.9-C110
Rated power/rated speed (kW/rpm)	82kw/2400rpm
Overall dimensions
Overall dimensions of machine (mm)	4420*1900*2950
Driving performance
Forward speed (km/h)	F1: 0-6, F2: 0-12
Reversing speed (km/h)	R1: 0-6, R2: 0-12
Chassis System
Wheelbase (mm)	3300
Tank capacity
Fuel tank (L)	150
Working device
Compacting width(mm)	1700
