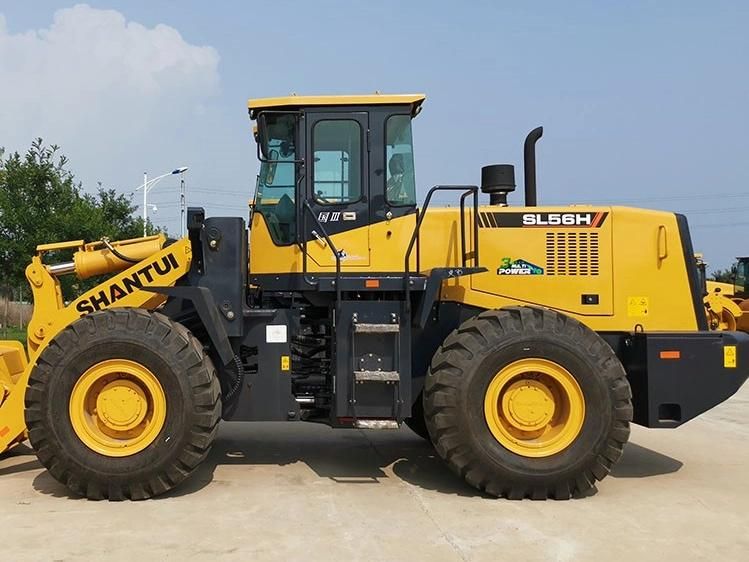

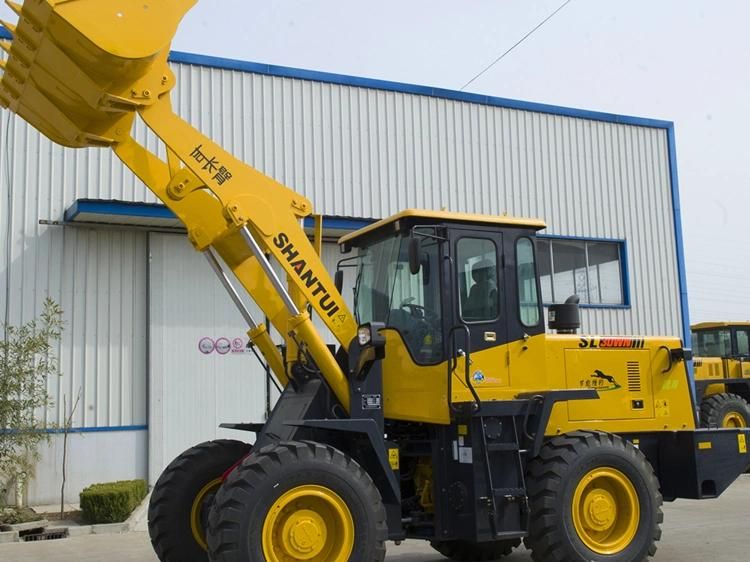

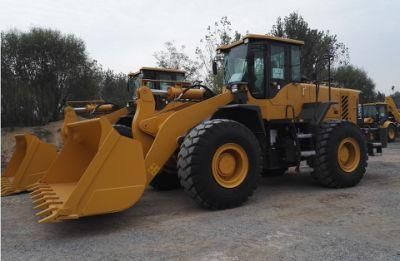

Shantui Loaders 6ton L66-C3 Front End Wheel Loader for Mines and Stone
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Condition：New
- Rated Load：3-6t
- Transmission：Hydraulic
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Large Loader
Base Info
- Model NO.：L66-C3
- Operating Weight (Kg)Tload：19500
- Engine Model：Wp10
- Rated Power/Rated Speed (Kw/Rpm)：178,2200
- Wheelbase (mm)：3350
- Rated Bucket Capacity (M³)：3.5
- Rated Loading Capacity (T)：6
- Transport Package：Nude Packing
- Specification：8415*3072*3560
- Origin：Jiangsu, China
- HS Code：84295100
- Production Capacity：1000,PCS
Description
Basic Info.
Model NO. L66-C3 Operating Weight (Kg)Tload 19500 Engine Model Wp10 Rated Power/Rated Speed (Kw/Rpm) 178/2200 Wheelbase (mm) 3350 Rated Bucket Capacity (M³) 3.5 Rated Loading Capacity (T) 6 Transport Package Nude Packing Specification 8415*3072*3560 Origin Jiangsu, China HS Code 84295100 Production Capacity 1000/PCSProduct Description
Shantui Loaders 6ton L66-C3 Front End Wheel Loader for Mines and Stone1. Weichai electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring high intelligence and efficiency, high parts interchangeability, and low maintenance cost.
2. The machine is provided with three power modes, namely no-load, medium-load, and heavy-load modes, at choice depending on the actual working load to realize the reasonable match among power, efficiency, and energy consumption.
3.The 6t special planetary transmission + torque converter or ZF200 transmission + torque converter is applied to realize more reasonable match and faster response.
4. The KD gear, 1st gear, and 2nd gear of the electronic control transmission are shifted automatically to ensure simple and flexible operations.
Parameter
| Parameter name | L66-C3 HD (Heavy-duty version) | L66-C3 CH (Coal version) | L66-C3 MH (Ore version) |
| Performance parameters | |||
| Operating weight (Kg) | 19500 | 19500 | 19500 |
| Maximum dumping height (mm) | 3325 | 3220 (Standard boom)/3430 (Long Boom) | 3435 |
| Dumping reach (mm) | 1300 | 1380 (Standard boom)/1495 (Long Boom) | 1165 |
| Maximum breakout force (kN) | ≥187 | ≥187 | ≥187 |
| Total cycle time (s) | 10.6 | 10.6 | 10.6 |
| Engine | |||
| Engine model | WP10 | WP10 | WP10 |
| Rated power/rated speed (kW/rpm) | 178/2200 | 178/2200 | 178/2200 |
| Overall dimensions | |||
| Overall dimensions of machine (mm) | 8415*3072*3560 | 8365 (Standard boom)/8695 (Long Boom)*3290*3560 | 8300*3072*3560 |
| Driving performance | |||
| Forward speed (km/h) | Planetary type: F1:0-13,F2:0-38 Electronic control type: F1:0-7,F2:0-12,F3:0-25,F4:0-38 | Planetary type: F1:0-13,F2:0-38 Electronic control type: F1:0-7,F2:0-12,F3:0-25,F4:0-38 | Planetary type: F1:0-13,F2:0-38 Electronic control type: F1:0-7,F2:0-12,F3:0-25,F4:0-38 |
| Reversing speed (km/h) | Planetary type: R:0-17 Electronic control type: R1:0-7,R2:0-12,R3:0-25 | Planetary type: R:0-17 Electronic control type: R1:0-7,R2:0-12,R3:0-25 | Planetary type: R:0-17 Electronic control type: R1:0-7,R2:0-12,R3:0-25 |
| Chassis System | |||
| Wheelbase (mm) | 3350 | 3350 | 3350 |
| Tank capacity | |||
| Fuel tank (L) | 230 | 230 | 230 |
| Working device | |||
| Rated bucket capacity (m³) | 3.5 | 5 | 2.7 |
| Rated loading capacity (t) | 6 | 6 | 6 |
