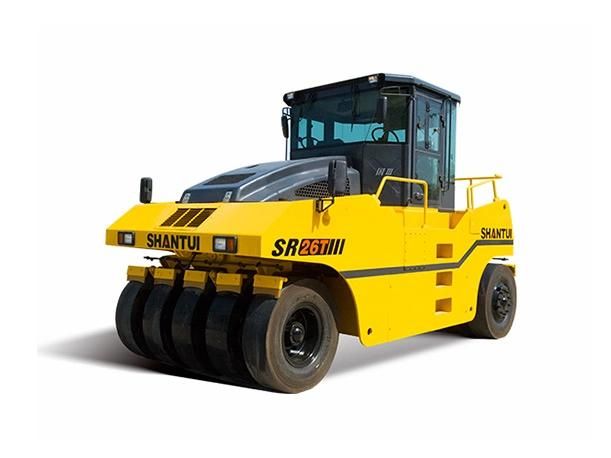

High-Strength Shantui 26 Ton Pneumatic Tyre Compactor Road Roller Sr26t
Acntruck Automobile Sales (Shanghai) Co., Ltd.- After-sales Service：12 Month
- Warranty：12 Month
- Type：Road Roller
- Working Method：Vibration
- Axle：Biaxial Dual-Drum
- Compaction Depth：40cm
Base Info
- Model NO.：Sr26t
- Engine Type：Diesel Engine
- Travel Speed：40cm,s
- Certification：ISO 9001:2000
- Condition：New
- Operating Mass (Kg)：26000
- Engine Model：Sc7h
- Rated Power/Rated Speed (Kw/Rpm)：118,1800
- Forward Speed (Km/H)：F1:0-8,F2:0-18
- Reversing Speed (Km/H)：R1:0-8,R2:0-18
- Compacting Width(mm)：2750
- Transport Package：Nude Packing
- Specification：5060*2892*3338
- Origin：Jiangsu, China
- HS Code：84294019
- Production Capacity：1000,PCS
Description
Basic Info.
Model NO. Sr26t Engine Type Diesel Engine Travel Speed 40cm/s Certification ISO 9001:2000 Condition New Operating Mass (Kg) 26000 Engine Model Sc7h Rated Power/Rated Speed (Kw/Rpm) 118/1800 Forward Speed (Km/H) F1:0-8,F2:0-18 Reversing Speed (Km/H) R1:0-8,R2:0-18 Compacting Width(mm) 2750 Transport Package Nude Packing Specification 5060*2892*3338 Origin Jiangsu, China HS Code 84294019 Production Capacity 1000/PCSProduct Description
High-strength Shantui 26 Ton Pneumatic Tyre Compactor Road Roller Sr26t1. The proprietary match technology can achieve high operating efficiency and reasonable fuel economy.
2. The configuration of brand core parts achieves high quality and reliability and reduces the malfunction downtime.
3. The high-strength three-point swing M frame for front wheels guarantees the uniform compacting on rugged ground.
4. The special tires for construction machinery feature good wear resistance and long life.
5. The hydraulic torque converter and power shift transmission with automatic stepless speed regulation are applied to achieve automatic adaptability and stable compacting drive of the road roller.
Main technical parameter| Parameter name | SR26T |
| Performance parameters | |
| Operating weight (Kg) | 26000 |
| Exciting force (KN) | - |
| Vibration frequency (Hz) | - |
| Nominal amplitude (mm) | - |
| Ground pressure (KPa) | 200-420 |
| Gradeability (%) | 20 |
| Engine | |
| Engine model | SC7H |
| Rated power/rated speed (kW/rpm) | 118/1800 |
| Overall dimensions | |
| Overall dimensions of machine (mm) | 5060*2892*3338 |
| Driving performance | |
| Forward speed (km/h) | F1:0-8,F2:0-18 |
| Reversing speed (km/h) | R1:0-8,R2:0-18 |
| Chassis System | |
| Wheelbase (mm) | 3840 |
| Tank capacity | |
| Fuel tank (L) | 180 |
| Working device | |
| Compacting width(mm) | 2750 |
