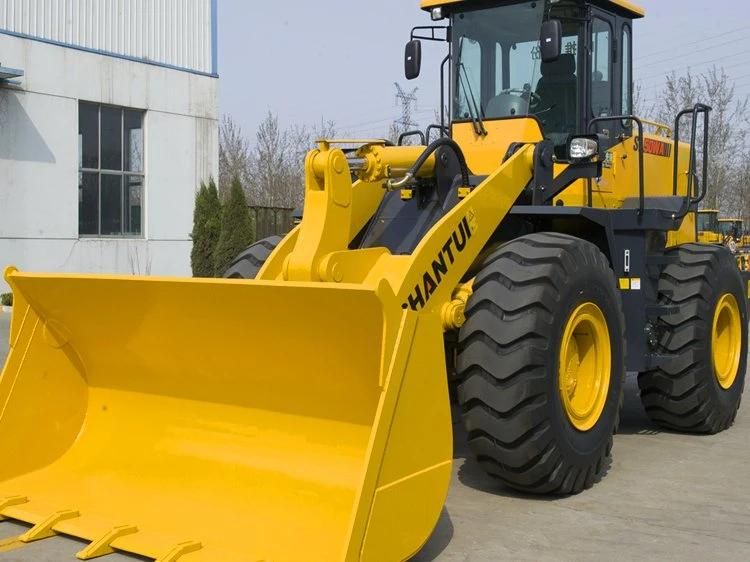

Bucket Loader Shantui 5 Tons L53-C3 3m3 Hydraulic Mini Wheel Loader
Acntruck Automobile Sales (Shanghai) Co., Ltd.- Condition：New
- Rated Load：1-3t
- Transmission：Hydraulic
- Load and Unload Mode：Front Discharge
- Walking Mode：Wheeled
- Type：Large Loader
Base Info
- Model NO.：L53-C3
- Operating Weight (Kg)Tload：16700
- Engine Model：Wp10
- Rated Power/Rated Speed (Kw/Rpm)：162,2000
- Wheelbase (mm)：2920
- Rated Bucket Capacity (M³)：3
- Rated Loading Capacity (T)：5
- Transport Package：Nude Packing
- Specification：7975*3030*3500
- Origin：Jiangsu, China
- HS Code：84295100
- Production Capacity：1000,PCS
Description
Basic Info.
Model NO. L53-C3 Operating Weight (Kg)Tload 16700 Engine Model Wp10 Rated Power/Rated Speed (Kw/Rpm) 162/2000 Wheelbase (mm) 2920 Rated Bucket Capacity (M³) 3 Rated Loading Capacity (T) 5 Transport Package Nude Packing Specification 7975*3030*3500 Origin Jiangsu, China HS Code 84295100 Production Capacity 1000/PCSProduct Description
High-Strength Design bucket loader Shantui 5 Tons L53-C3 3m3 Hydraulic Mini wheel Loader1. Weichai electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring high intelligence and efficiency, high parts interchangeability, and low maintenance cost.
2. The machine is provided with three power modes, namely no-load, medium-load, and heavy-load modes, at choice depending on the actual working load to realize the reasonable match among power, efficiency, and energy consumption.
3.The high-strength design and the CAE analysis are applied to eliminate partial weaknesses and the high-strength destructive tests are taken to meet the needs of diversified severe working conditions.
4. The critical parts are welded by robots to ensure high fusion depth and stable weld quality and guarantee the stability of core carrying parts.
5. The working device is design optimized to realize fast motion, high breakout force, powerful lifting capacity, optimized bucket shape, low insertion resistance, and high fullness rate.
Parameter
| Parameter name | L53-C3 FL (Flexible version) | L53-C3 CH (Coal version) |
| Performance parameters | ||
| Operating weight (Kg) | 16700 | 17000 |
| Maximum dumping height (mm) | 3415 | 3245 |
| Dumping reach (mm) | 1050 | 1210 |
| Maximum breakout force (kN) | ≥168 | ≥168 |
| Total cycle time (s) | 10 | 10 |
| Engine | ||
| Engine model | WP10 | WP10 |
| Rated power/rated speed (kW/rpm) | 162/2000 | 162/2000 |
| Overall dimensions | ||
| Overall dimensions of machine (mm) | 7975*3030*3500 | 8025*3030*3500 |
| Driving performance | ||
| Forward speed (km/h) | F1:0-13,F2:0-42 | F1:0-13,F2:0-42 |
| Reversing speed (km/h) | R:0-15 | R:0-15 |
| Chassis System | ||
| Wheelbase (mm) | 2920 | 2920 |
| Tank capacity | ||
| Fuel tank (L) | 193 | 193 |
| Working device | ||
| Rated bucket capacity (m³) | 3 | 3.6 |
| Rated loading capacity (t) | 5 | 5 |
