• Model NO.：SEM630B
• Type：Small Loader
• Dimension：6890*2354*3080 mm
• Bucket Capacity：1.5-2.5 M3
• Engine Model：Deutz Wp6g125
• Usage：Universal Type
• Scraper Type：Tractor-Scraper
• Load and Unload Method：Front Discharge
• Engine Power：92 Kw
• Rated Load Capacity：3 Tons
• Operating Weight：9700 Kg
• Warranty：1 Year
• Transport Package：Suitable Package for Shipment
• Specification：Within 15days delivery
• Trademark：SEM
• Origin：Jiangsu, China
• HS Code：84295100
• Production Capacity：1000 Set,Sets , Month

Basic Info.

Model NO. SEM630B Type Small Loader Dimension 6890*2354*3080 mm Bucket Capacity 1.5-2.5 M3 Engine Model Deutz Wp6g125 Usage Universal Type Scraper Type Tractor-Scraper Load and Unload Method Front Discharge Engine Power 92 Kw Rated Load Capacity 3 Tons Operating Weight 9700 Kg Warranty 1 Year Transport Package Suitable Package for Shipment Specification Within 15days delivery Trademark SEM Origin Jiangsu, China HS Code 84295100 Production Capacity 1000 Set/Sets / Month

Product Description

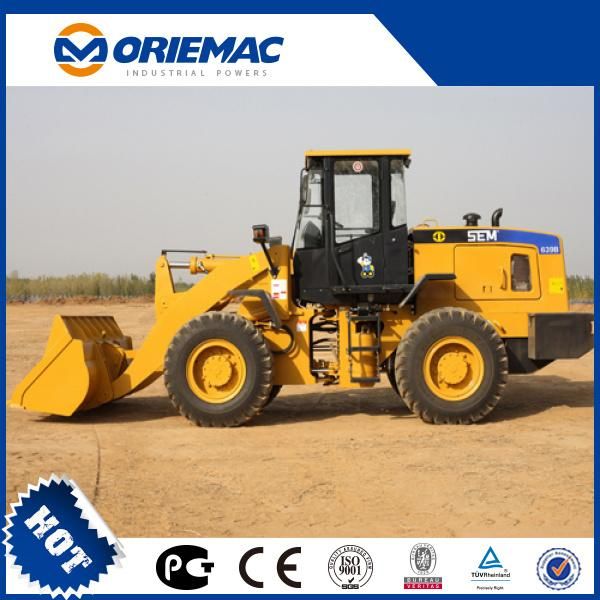

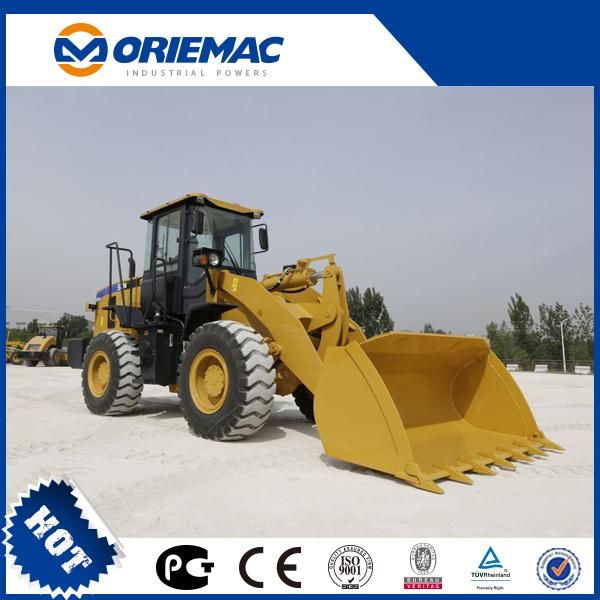

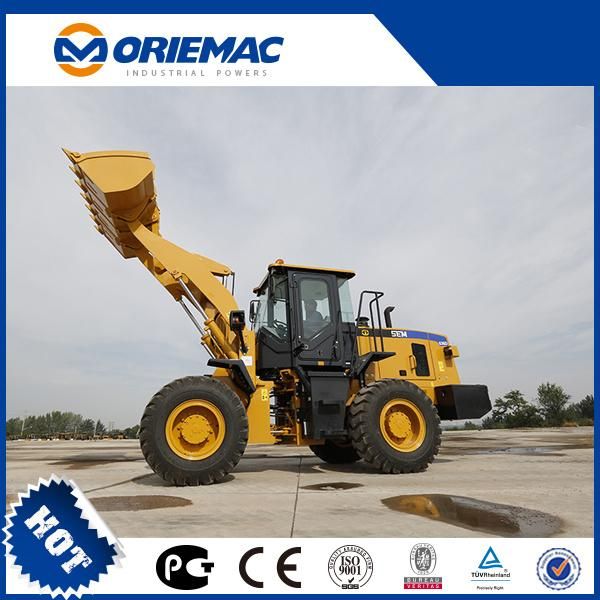

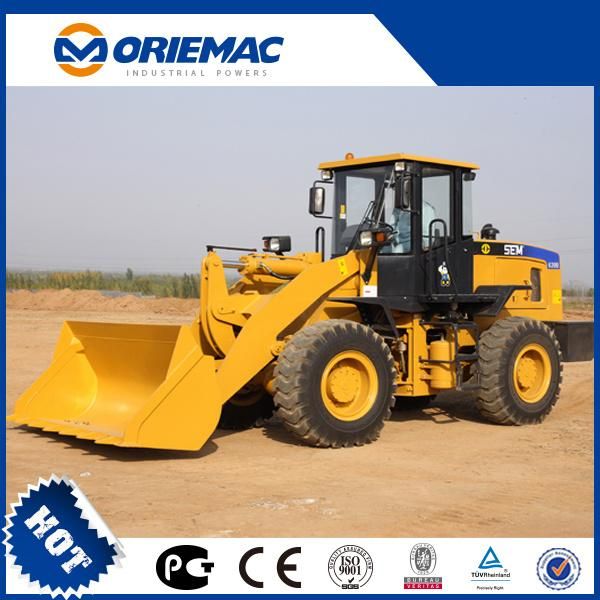

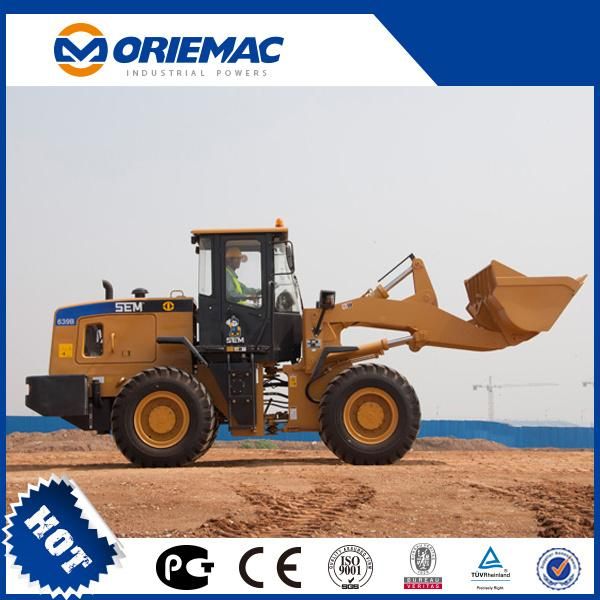

Caterpillar Construction Machinery 3 Tons Mini Front End Shovel Wheel Loader Sem630b for Sale


Advantages

* Stage II Deutz WP6G125 engine, well-known brand for construction machinery in China;

* Countershaft design, power-shift gearbox, easy to operate;

* Three elements single stage torque converter provides wide torque range and high efficiency;

* Compact design offers great ground serviceability and ensures excellent performance;

* Complete re-design of the dynamic load-sensing hydraulic steering system;

* Optimized filtration system for hydraulic components enhances durability;

* Easy to open engine hood and ground level hydraulic oil check points ensure excellent service accessibility;

* Four wheel drive, hydraulic driven disc type brake axle;

* Optimized structure improved stability and strength;

* New cooling system improves performance, -20~+40 ambient temperature capability

* New steering valve with large displacement shortens steering circle time

Main Specifications:

• Rated Load Capacity: 3000 kg
• Operating Weig: 9700 kg
• Bucket Capacities: 1.5-2.5 m³
• Overall Dimensions L*W*H : 6890×2354×3080 mm
• Engine
• Rated Gross Power: 92 kW/123 hp
• Model: Deutz WP6G125
• Peak Torque: 590 N.m
• Operating Specifications
• Max. Rimpull: 97 kN
• Breakout Force: 120 kN
• Full Turn Static Tipping Load: 5452 kg
• Hydraulic System
• Pump Displacement-Implement Pump: 100 ml/rev
• System Pressure Setting: 16.5 MPa
• Hydraulic Cycle Times :
• Raise: 4.7 s
• Dump: 1.0 s
• Lower (Empty,Float Down): 2.8 s
• Total: 8.5 s
• Steering
• Steering Angle Left/Right: 36°±1°
• Minimum Turning Radius Over Rear Tire: 4825 mm
• Minimum Turning Radius Over Bucket: 5946 mm
• Axle
• Front: Fixed with Calipers
• Rear: Fixed with Osc.Frame and Calipers
• Maximum Single-Wheel Rise and Fall: Oscillating±12°
• Brake System
• Service Brake: Dry & Caliper,Air-to-Oil Control
• Parking Brake: Drum-Type Shoe Brake,Spring Applied & Air Released
• Transmission
• Type: Countershaft; Power Shift
• Travel Speed:
• Forwar: | 7.4 km/hr; || 13.5 km/hr; III 25.4 km/hr; IV 41.5 km/hr
• Reverse: I 9.2 km/hr: II 31.1 km/hr
• Service Refill Capacities
• Cooling System: 30 L
• Engine Lubricating Oil: 16 L
• Oil for Converter and Gear Box: 45 L
• Differentials and Final Drives:
• Front: 10 L
• Rear: 10 L
• Hydraulic Tank: 90 L
• Tires
• Size: 17.5-25
• Type: Bias
• Layers: 12
• Textured Type: L3/E3
• Air Pressure: Front 350 kPa/Rear 300 kPa
