• Model NO.：SEM636B
• Type：Small Loader
• Dimension：7120*2354*3137 mm
• Bucket Capacity：1.5-2.5 M3
• Engine Model：Deutz Wp6g125
• Usage：Universal Type
• Scraper Type：Tractor-Scraper
• Load and Unload Method：Front Discharge
• Engine Power：92 Kw
• Rated Load Capacity：3 Tons
• Operating Weight：9900 Kg
• Warranty：1 Year
• Transport Package：Suitable Package for Shipment
• Specification：Within 15days delivery
• Trademark：SEM
• Origin：Jiangsu, China
• HS Code：84295100
• Production Capacity：1000 Set,Sets , Month

Basic Info.

Model NO. SEM636B Type Small Loader Dimension 7120*2354*3137 mm Bucket Capacity 1.5-2.5 M3 Engine Model Deutz Wp6g125 Usage Universal Type Scraper Type Tractor-Scraper Load and Unload Method Front Discharge Engine Power 92 Kw Rated Load Capacity 3 Tons Operating Weight 9900 Kg Warranty 1 Year Transport Package Suitable Package for Shipment Specification Within 15days delivery Trademark SEM Origin Jiangsu, China HS Code 84295100 Production Capacity 1000 Set/Sets / Month

Product Description

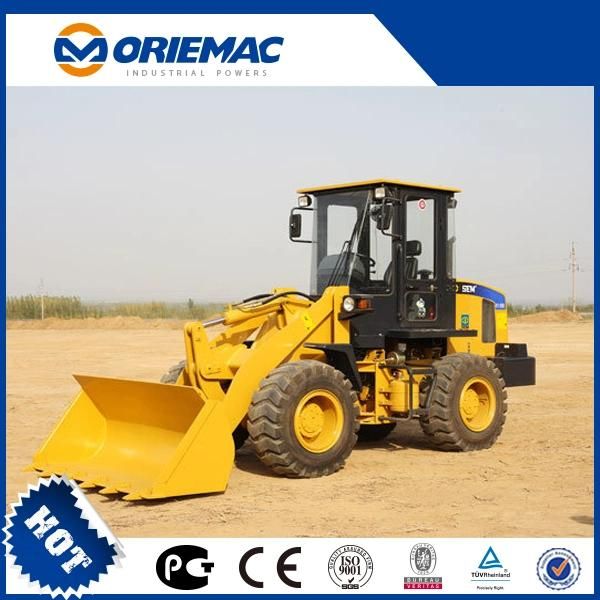

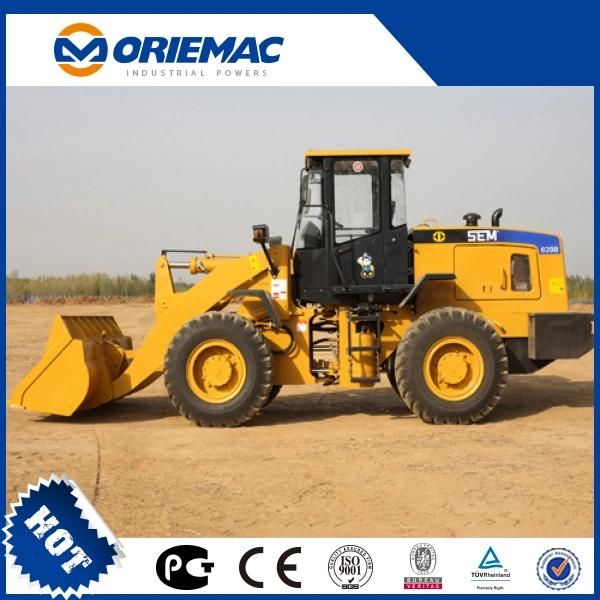

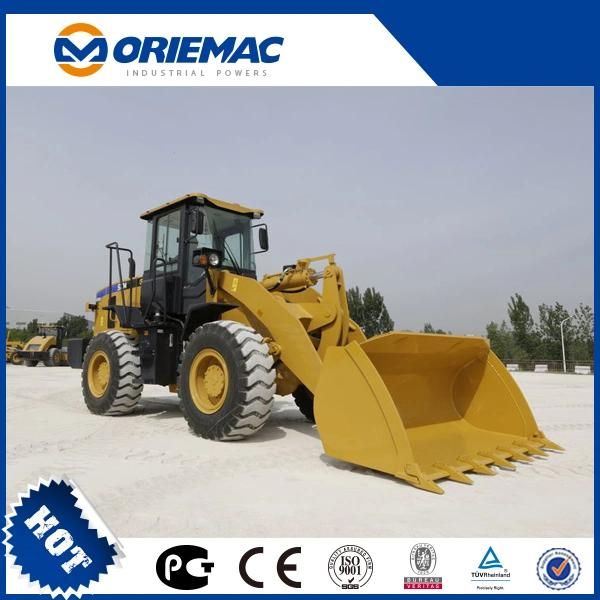

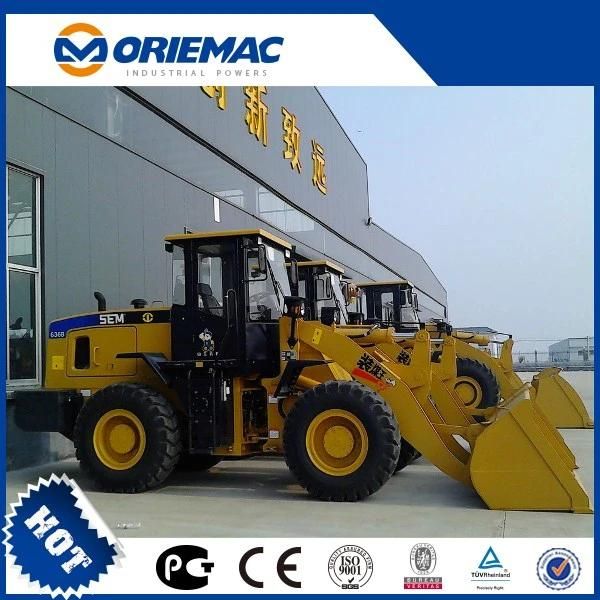

Construction Equipment Caterpillar Sem636b 3 Tons 1.8m3 Bucket Front End Wheel Loader

Advantages

* Excellent productivity and fuel efficiency, with more reliability reinforcement

* Optimized DEUTZ WP6G Stage II engine, high fuel efficiency from advanced design and manufacturing technology;

* Larger bucket, shorter cycle time, heavier counterweight for more payload;

* Outstanding cooling system, -20~+43 ambient temperature capability

* Optimized braking system with additional booster for reliable braking performance;

* Comfortable cabin environment, user-friendly monitor and control systems.

* Classic SEM transmission with more than 30 years' manufacturing experience, in -house made, countershaft, power-shift design with great reliability and durability;

* SAE & DIN standard hoses and optimized routing for improved strength and reliability;

* Large side open door and centralized testing points provides excellent maintenance access ability

Main Specifications:

• Rated Load Capacity: 3000 kg
• Operating Weig: 9900 kg
• Bucket Capacities: 1.5-2.5 m³
• Overall Dimensions L*W*H : 7120×2354×3137 mm
• Engine
• Rated Gross Power: 92 kW/123 hp
• Model: Deutz WP6G125
• Peak Torque: 540 N.m
• Operating Specifications
• Max. Rimpull: 97 kN
• Breakout Force: 111 kN
• Full Turn Static Tipping Load: 5882 kg
• Hydraulic System
• Pump Displacement-Implement Pump: 100 ml/rev
• System Pressure Setting: 18 MPa
• Hydraulic Cycle Times :
• Raise: 4.7 s
• Dump: 0.9 s
• Lower (Empty,Float Down): 2.8 s
• Total: 8.4 s
• Steering
• Steering Angle Left/Right: 36°±1°
• Minimum Turning Radius Over Rear Tire: 4971 mm
• Minimum Turning Radius Over Bucket: 5916 mm
• Axle
• Front: Fixed with Calipers
• Rear: Fixed with Osc.Frame and Calipers
• Maximum Single-Wheel Rise and Fall: Oscillating±12°
• Brake System
• Service Brake: Dry & Caliper,Air-to-Oil Control
• Parking Brake: Drum-Type Shoe Brake,Spring Applied & Air Released
• Transmission
• Type: Countershaft; Power Shift
• Travel Speed:
• Forwar: | 7.4 km/hr; || 13.5 km/hr; III 25.4 km/hr; IV 41.5 km/hr
• Reverse: I 9.2 km/hr: II 31.1 km/hr
• Service Refill Capacities
• Cooling System: 30 L
• Engine Lubricating Oil: 16 L
• Oil for Converter and Gear Box: 45 L
• Differentials and Final Drives:
• Front: 10 L
• Rear: 10 L
• Hydraulic Tank: 90 L
• Tires
• Size: 17.5-25
• Type: Bias
• Layers: 12
• Textured Type: L3/E3
• Air Pressure: Front 350 kPa/Rear 300 kPa
