• Model NO.：HQ915S
• Type：Medium-sized Loader
• Swing Angle：90 Degree
• Transport Package：3 Units in a Hq40 Container
• Specification：4709*1626*2645mm
• Trademark：Haiqin
• Origin：Shandong, China
• HS Code：84295100
• Production Capacity：2000 Units, Year

Basic Info.

Model NO. HQ915S Type Medium-sized Loader Swing Angle 90 Degree Transport Package 3 Units in a Hq40 Container Specification 4709*1626*2645mm Trademark Haiqin Origin Shandong, China HS Code 84295100 Production Capacity 2000 Units/ Year

Product Description

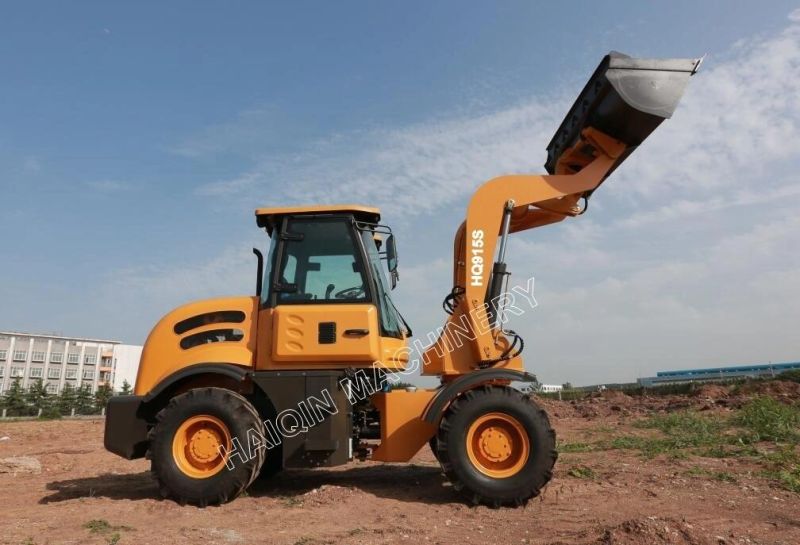

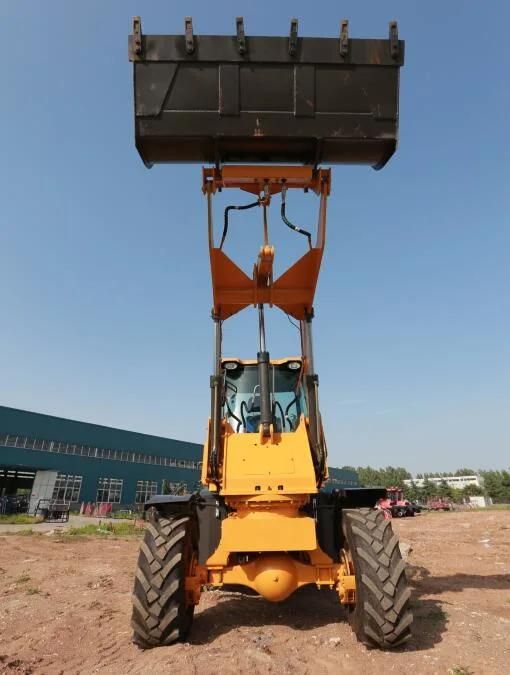

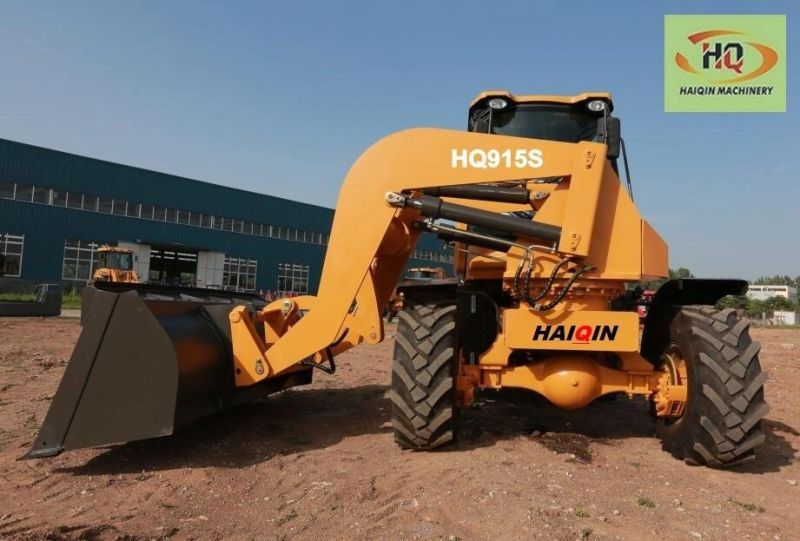

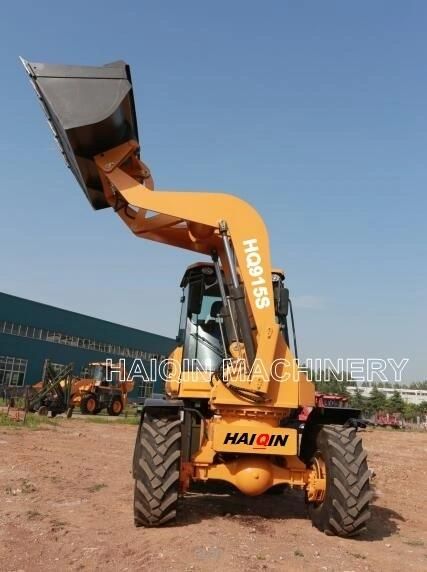

Haiqin Brand Swing Loader ( HQ915S)

The Haiqin swing loaders are the the latest product in the company's range. The unique aspect of the swing loaders is that it can move the load from the front to the side.     The shovel arm can move 90° to the left and right. Most swing loaders lift swung even more than frontally.

1,Hydraulic steering system, electronically controlled variable speed, pilot operated working hydraulic control, makes flexibility and comfortable for operating.
2 ,Optimized hydraulic system saves more time and more energy.
3 ,single lever in Z-bar linkage with sealed hinge pins for excellent high breakout force and large dumping height.
4 ,Optional attachments provided with buckets in different capacity, side dump bucket, log fork, lifting tool, weed fork, pallet fork ,V-type Snow blade and so on, be suitable for variable material.
5 ,Using special wear well steel for bucket long service life.
6 ,New cab is equipped with air conditioner, reduced vibration, optimum visibility, making a clean and comfortable work environment.
7 ,Engine hood can be opened Integrally backward making easy maintenance.
8 ,More reasonable distribution of axle load makes greater tractive force.
9 ,Novel outline design.
10,The middle articulated chassis makes small turning radius and machine flexible.
11,Equipped with coaxial flow amplifying steering unit, pilot operated working hydraulic control, makes convenient and flexible operating.
12,Hydraulic  quick change system. Very easy. One man can operate.


Item	Specification	Item	Specification
Kerb weight	3670kg	Max. speed	20km/h
Rated bucket capacity	0.65m³	DRIVE AXLE
Rated load	1500kg	Main transmission type	Spiral gear, first stage deceleration
Max. tractive force	25kN	TYRE
Max. breakout force	25kN	Type specification	20.5-16
Max. gradeability	30%	Optional	14-17.5
Max. dumping height	2645mm	STEERING SYSTEM
Dumping distance	976mm	Type	Articulated load-sensing hydraulic steering system
Overall dimension(L*W*H)	4709*1626*2645mm	Steering angle	32°
ENGINE		Min. turning radius	4283mm
Model	4DW92-55	HYDRAULIC SYSTEM
Type	Inline, direct injection, water cooling	System working pressure	16MPa
Rated power	40Kw	Lifting time	4.5s
Rated speed	2400r/min	Total time	10s
Optional	KOHLER KDI1903TCR	BRAKE SYSTEM
Rated power	40Kw	Service brake	Air-over-hydraulic shoe-type
TRANSMISSION SYSTEM		Parking brake	Manual disc brake type
Hydraulic torque converter	Single-stage three-element hydraulic torque converter	FILL CAPACITY
Type of gear box	Axis-fixed, double reduction	Fuel	51L
Gear shift	2 forward shift, 2 reverse shift	Hydraulic oil	68.6L
