• Model NO.：SEM618B
• Type：Small Loader
• Dimension：5885*2000*2795 mm
• Bucket Capacity：1.0 M3
• Engine Model：Yituo Yt4b4
• Usage：Universal Type
• Scraper Type：Tractor-Scraper
• Load and Unload Method：Front Discharge
• Engine Power：60 Kw
• Rated Load Capacity：1.8 Tons
• Operating Weight：5780 Kg
• Warranty：1 Year
• Transport Package：Suitable Package for Shipment
• Specification：Within 15days delivery
• Trademark：SEM
• Origin：Jiangsu, China
• HS Code：84295100
• Production Capacity：1000 Set,Sets , Month

Basic Info.

Model NO. SEM618B Type Small Loader Dimension 5885*2000*2795 mm Bucket Capacity 1.0 M3 Engine Model Yituo Yt4b4 Usage Universal Type Scraper Type Tractor-Scraper Load and Unload Method Front Discharge Engine Power 60 Kw Rated Load Capacity 1.8 Tons Operating Weight 5780 Kg Warranty 1 Year Transport Package Suitable Package for Shipment Specification Within 15days delivery Trademark SEM Origin Jiangsu, China HS Code 84295100 Production Capacity 1000 Set/Sets / Month

Product Description

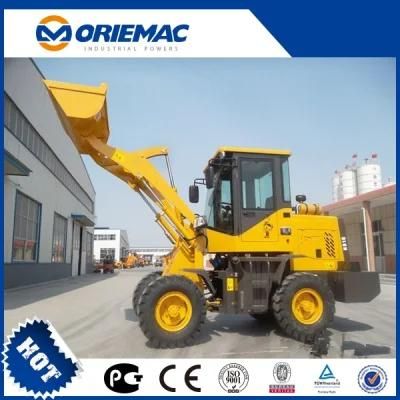

Construction Machinery 1.8 Tons Mini Front End Wheel Loader Caterpillar Sem618b for Sale


Advantages

* Stage II YTO engine, well-known brand for construction machinery in China;

* Countershaft design, power-shift gearbox, easy to operate;

* Three elements single stage torque converter provides wide torque range and high efficiency;

* Compact design offers great ground serviceability and ensures excellent performance;

* Complete re-design of the dynamic load-sensing hydraulic steering system;

* Optimized filtration system for hydraulic components enhances durability;

* Easy to open engine hood and ground level hydraulic oil check points ensure excellent service accessibility;

* Four wheel drive, hydraulic driven disc type brake axle;

* Optimized structure improved stability and strength;

* New cooling system improves performance, -20~+40 ambient temperature capability

* New steering valve with large displacement shortens steering circle time

Main Specifications:

• Rated Load Capacity: 1800 kg
• Operating Weig: 5,780 kg
• Bucket Capacities: 1.0 m³
• Overall Dimensions L*W*H : 5885×2000×2795 mm
• Engine
• Rated Gross Power: 60 kW
• Model: Yituo YT4B4
• Peak Torque: 290 N.m
• Operating Specifications
• Max. Rimpull: 50 kN
• Breakout Force: 49 kN
• Hydraulic System
• Pump Displacement-Implement Pump: 63 ml/rev
• System Pressure Setting: 16 MPa
• Hydraulic Cycle Times :
• Raise: 3.68s
• Dump: 0.62s
• Lower (Empty,Float Down):2.02s
• Total: 6.3s
• Steering
• Steering Angle Left/Right: 36°±1°
• Minimum Turning Radius Over Rear Tire: 4129 mm
• Minimum Turning Radius Over Bucket: 4730 mm
• Axle
• Front: Fixed with Calipers
• Rear: Fixed with Osc.Frame and Calipers
• Maximum Single-Wheel Rise and Fall: Oscillating±12°
• Brake System
• Service Brake: Dry & Caliper,Air-to-Oil Control
• Parking Brake: Drum-Type Shoe Brake
• Transmission
• Type: Countershaft; Power Shift
• Travel Speed:
• Forwar: |  9.3 km/hr; || 24.0 km/hr
• Reverse: I 9.1 km/hr: II 23.5 km/hr
• Service Refill Capacities
• Cooling System: 20 L
• Engine Lubricating Oil: 12 L
• Oil for Converter and Gear Box: 21 L
• Differentials and Final Drives:
• Front: 8L
• Rear: 8L
• Hydraulic Tank: 50L
• Tires
• Size: 16/70-20
• Type: Bias
• Layers: 14
• Textured Type: L3
• Air Pressure: Front 280 kPa/Rear 210 kPa
