• Model NO.：swg315
• Engine Power：228kw
• Engine Make：Cummins
• Blade Width：4920mm
• Color：Yellow
• Shipment：by RO-RO
• Drive Type：6X4
• Transport Package：Nude
• Specification：ISO2008
• Trademark：sinoway
• Origin：China
• HS Code：84294990
• Production Capacity：5 PCS,Month

Basic Info.

Model NO. swg315 Engine Power 228kw Engine Make Cummins Blade Width 4920mm Color Yellow Shipment by RO-RO Drive Type 6X4 Transport Package Nude Specification ISO2008 Trademark sinoway Origin China HS Code 84294990 Production Capacity 5 PCS/Month

Product Description

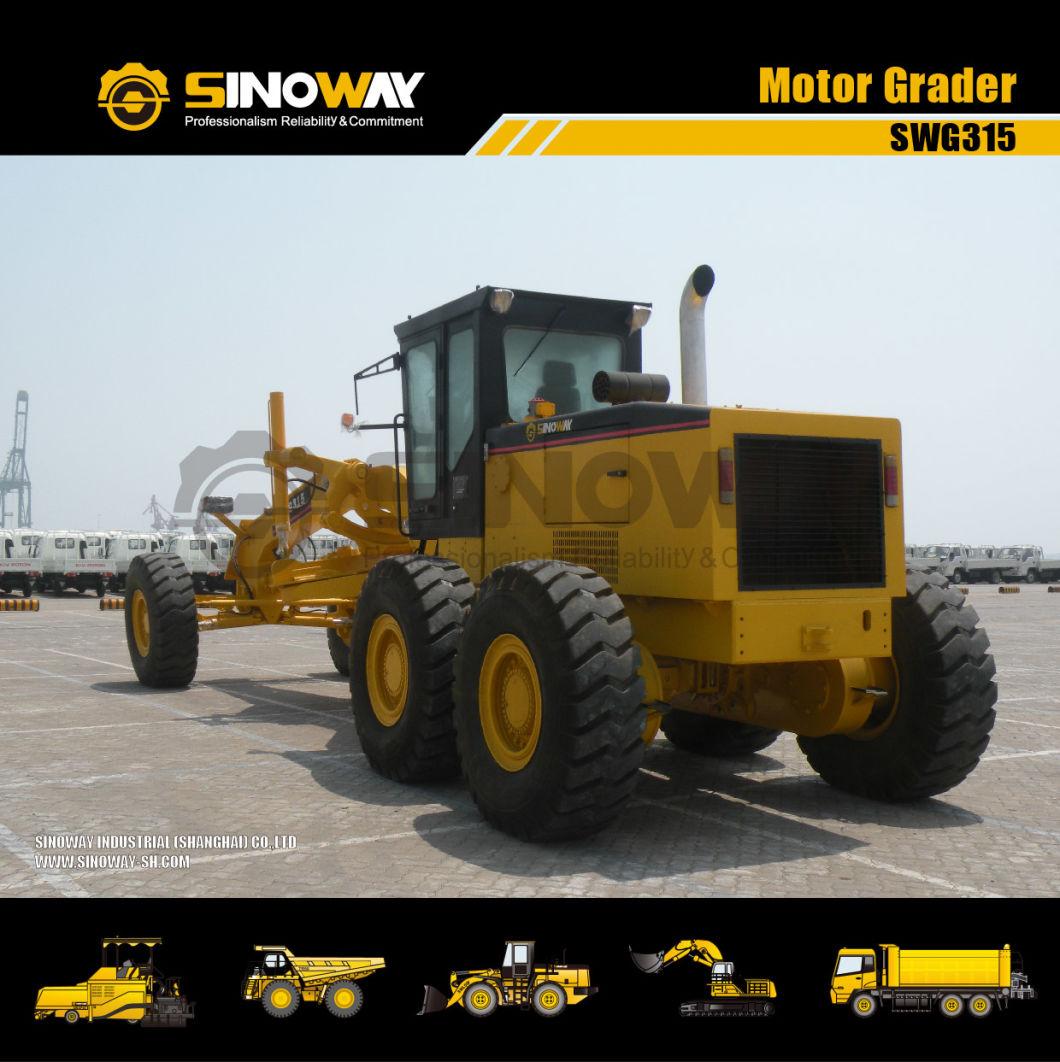

SINOWAY SWG315 Motor Grader Highlights
1. The frame adopts the mega structure and numerical control welding.
2. The engine is imported Cummins Euro III emission engine. It has the characteristics of low noise, energy saving and environmental protection.
3. The drive axle adopts imported main drive axle with reliable quality; the "anti-skid differential" is installed inside, so that the grader can output full load power under various working conditions.
4. The operation hydraulic system adopts the load sensitive operation hydraulic system, which can make the left and right lifting of the blade synchronous, make the operation sensitive and reliable, and reduce the energy consumption at the same time. Adopt imported multi way valve and plunger pump with reliable quality.
5. The brake system consists of service brake, parking brake and emergency brake. The service brake is located at each middle and rear wheel. The left and right independent brake circuits and two accumulators ensure reliable braking force in case of failure or engine shutdown. Service brake type: oil cooled, multi disc brake, hydraulic brake, spring release, automatic adjustment.
6. Full hydraulic front wheel steering, and equipped with hydraulic transfer steering of control frame, so that the turning radius is small and flexible.
7. The anti tipping and anti dropping cab is equipped with French f green anti ultraviolet glass and electronic monitoring mobile console, which is comfortable and safe to operate. And equipped with audio devices, enrich the cultural life of drivers.
8. The company's patent  is adopted to have the hydraulic buffer device for blade lifting, so that the grader can avoid sudden impact during operation and play a protective role for the grader.
9. Blade is a heavy-duty blade manufactured by our company with unique technology. After special heat treatment, the strength and wear resistance of blade are improved, and its service life is improved.
10. The gearbox adopts German ZF electro-hydraulic gearshift gearbox, which can realize forward 6 gears and backward 3 gears, making the operation convenient.

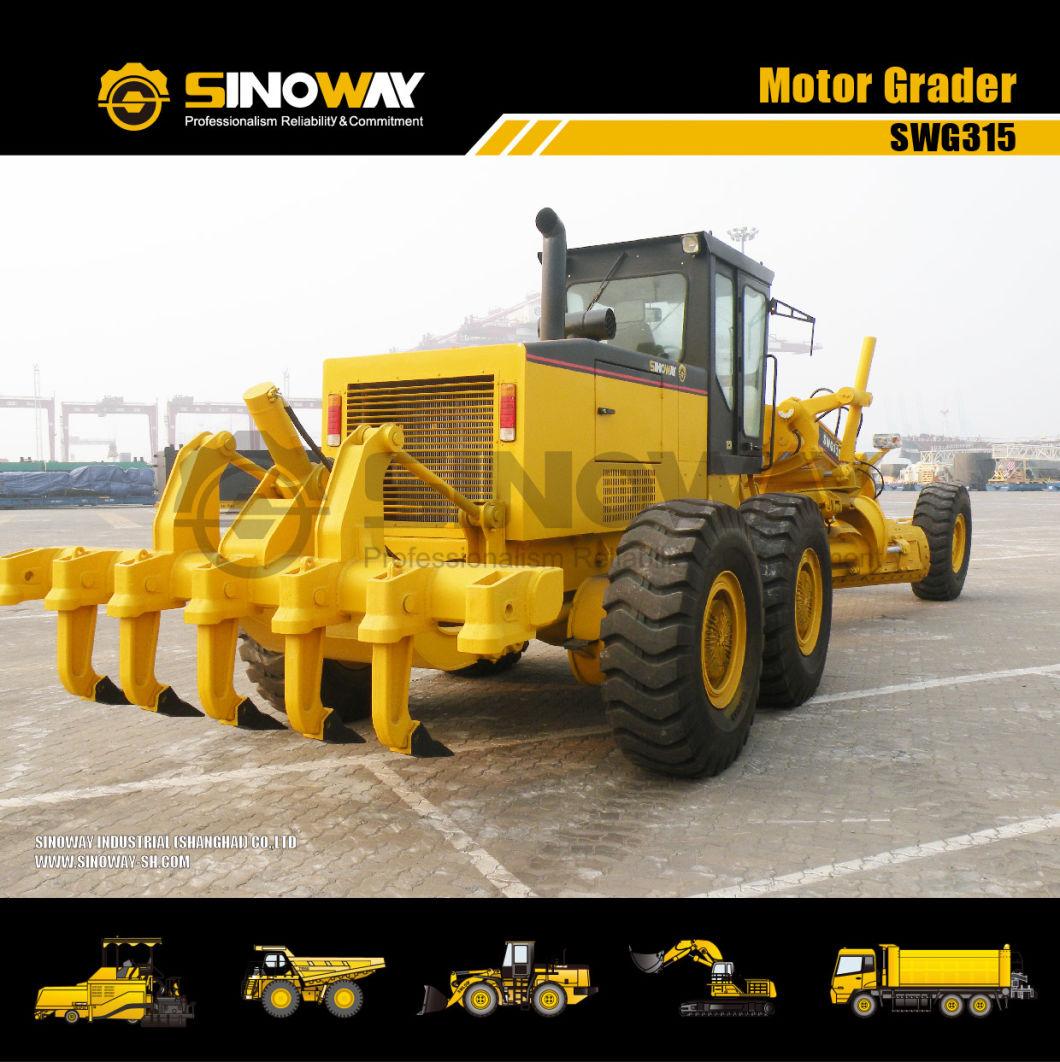

11. Rear scarifier, soil scraper, centralized lubrication and automatic blade leveling device can be OPTIONAL.

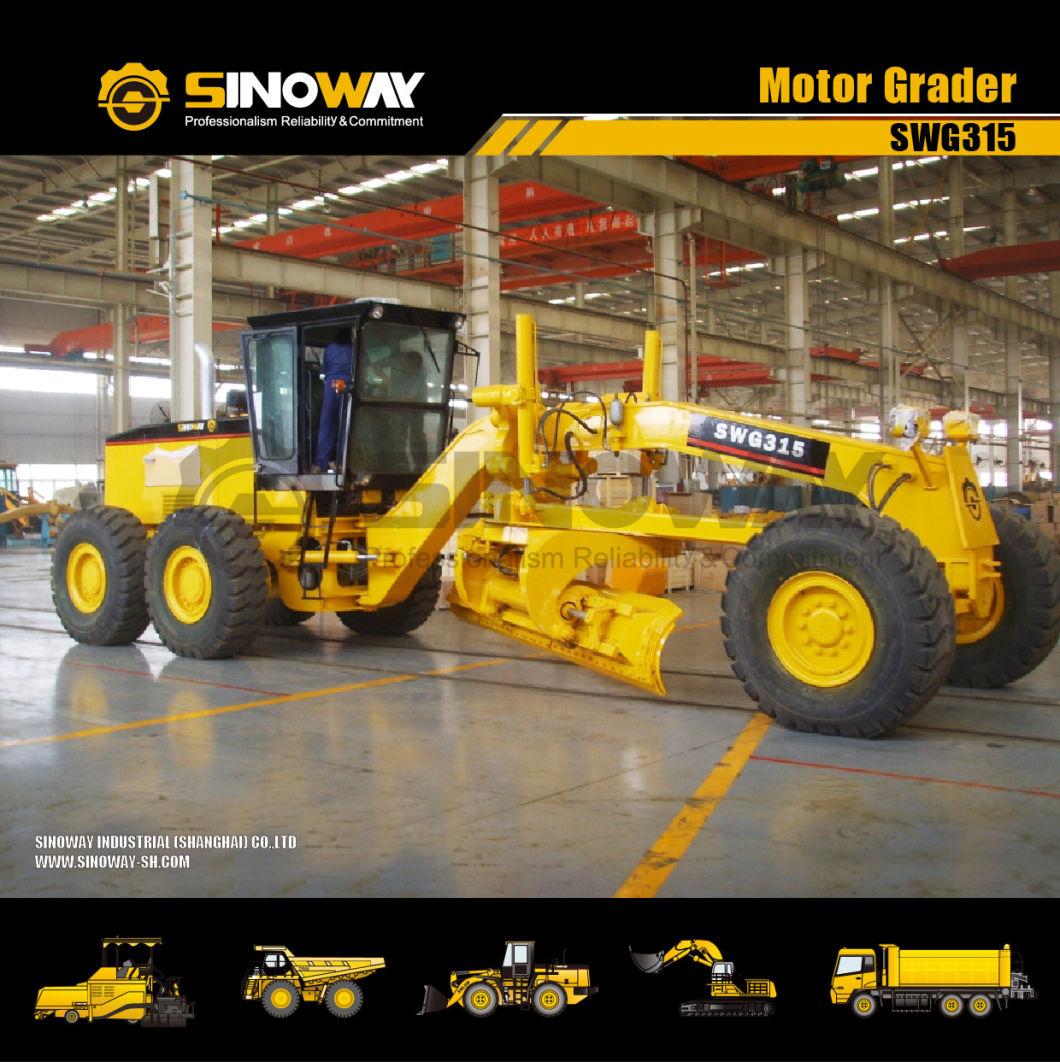

Production Show





Specifications

Engine
Model	CUMMINS
Type	Six-cylinder,water-cooled,turbocharged,electronic injection,tier III
Rated power	228KW
Rated speed	2100rpm
Transmission System
Torque conveter type	3 elements, single stage
Torque ratio	2.8
Cooling type	Oil cooled, pressure circulation
Gearbox type	Power shift
Gear shifts(Forward/Reverse)Travelling speed(km/h)	F6/R3
Forward/Reverse I	5.2/5.2
Forward/Reverse II	8.1/12.5
Forward/Reverse III	12.5/27.1
Forward IV	19.1
Forward V	27.1
Forward VI	40
Steering System
Front wheel steering angle	50º(L/R)
Articulated steering angle	27º(L/R)
Drive type	Dual action cylinder
Axle
Drive type	Four wheel drive(6×4)
Front axle ground clearance	670mm
Front wheel lean	17º(L/R)
Oscillation	±15º
Drive axle	Imported No-SPIN differentia
Working Equipment
Control system	Hydrostatic drive system
Hydraulic pump	Gear pump
Control valve	Two sets, five pieces per set
Control pressure	25MPa
Hydraulic oil cylinder	Dual action cylinder
Max. tractive force	165KN
Ground penetration	470mm
Blade width	4920mm
Blade cycling	360º
Max. bank cutting angle	80º(L/R)
Operating weight	26000kg
Braking System
Service brake	Wet brake,actuate 4 rear wheels
Parking brake	Hand operated hoop brake
Dimensions
Overall length	10500mm
Overall width(wheel outside)	3140mm
Overall height	3650mm
Wheel base	7760mm
Front tread	2494mm
Rear tread	2494mm
Tyre size	18.00-25
Service Capacities
Fuel tank	380L
Engine crank case	30L
Hydraulic tank	130L
Gear box	45L
Rear axle	35L
Balance box	40L(each)
Worm gear case	6L
Tandem Drive
Type	Swing type with roller chain transmission
Speed ratio	18.03
