• Model NO.：SWG165
• Usage：Universal Type
• Engine Power：74~147kw
• Color：Yellow
• Scraper Type：Grader
• Warranty：1 Year
• Shipment：by Container
• Transport Package：Nude
• Specification：ISO2008
• Trademark：SINOWAY
• Origin：China
• HS Code：84294990
• Production Capacity：1000 Units Per Year

Basic Info.

Model NO. SWG165 Usage Universal Type Engine Power 74~147kw Color Yellow Scraper Type Grader Warranty 1 Year Shipment by Container Transport Package Nude Specification ISO2008 Trademark SINOWAY Origin China HS Code 84294990 Production Capacity 1000 Units Per Year

Product Description

Product Features

The engine is reliable in performance and high in power and this provides the product with stable and reliable power output under various working conditions; the throttle adopts coordinated control and it possesses easy, convenient and reliable operation.

The 6-speed gearbox with rational distribution of gear ratio provides the machine with 3 working speeds so that working reliability and flexibility are guaranteed.

The rear axle is 3-section drive axle with NO-SPIN self-locking differential.

Electric instruments and hydraulic components from internal famous manufacturers ensure the reliability of the vehicle.

The brake system adopts advanced hydraulic brake control technology in the world and safe and reliable brake application is guaranteed.

The articulated frame and the full-hydraulic front wheel steering provide the vehicle with small turning radius and flexible steering.

The luxury, full-field and fully sealed cab can be equipped with warm-and-cool air-conditioner.

The novel and chic appearance, streamline glass fiber reinforced plastic engine hood provide easy engine maintenance and good heat dissipation.

Special tires for grader driving are applied and general purpose tires can be supplied to customers when needed.

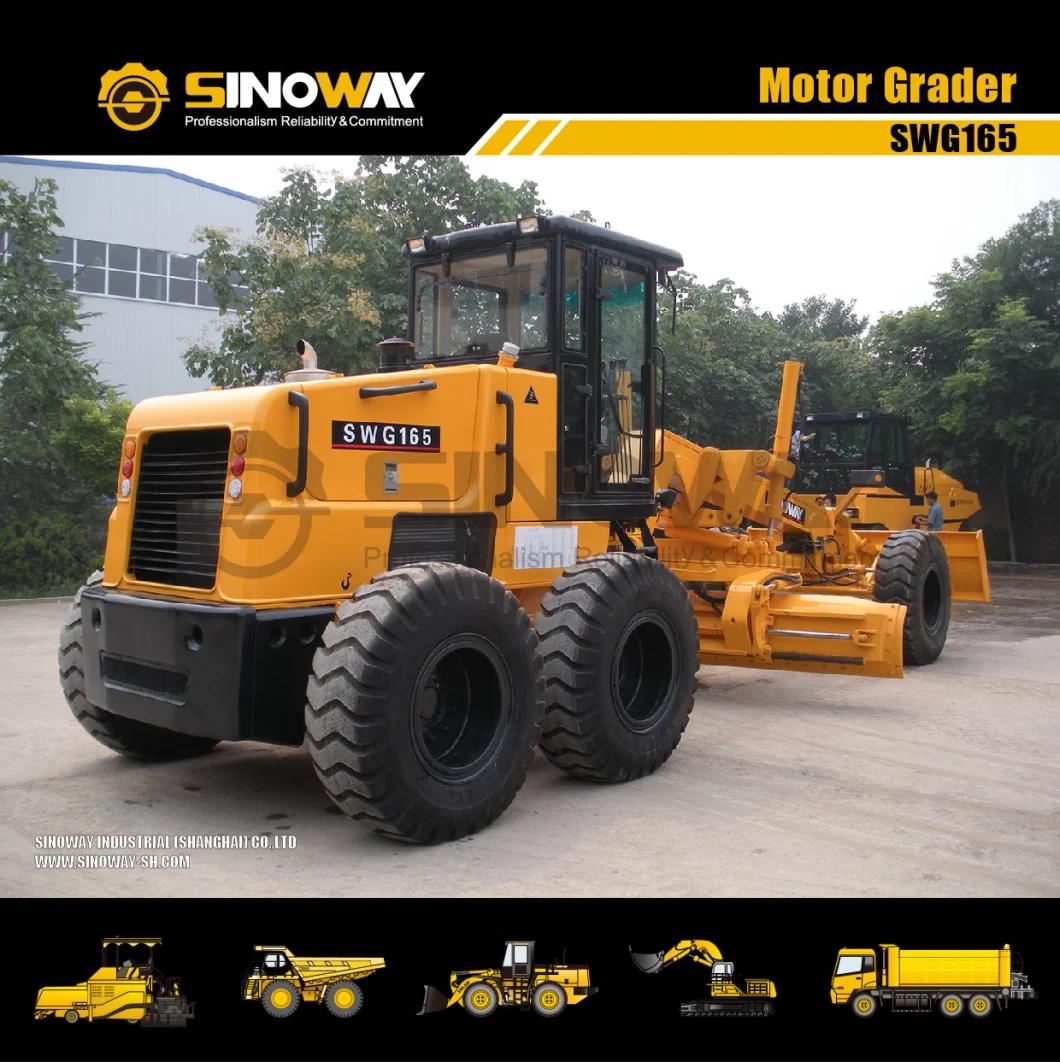

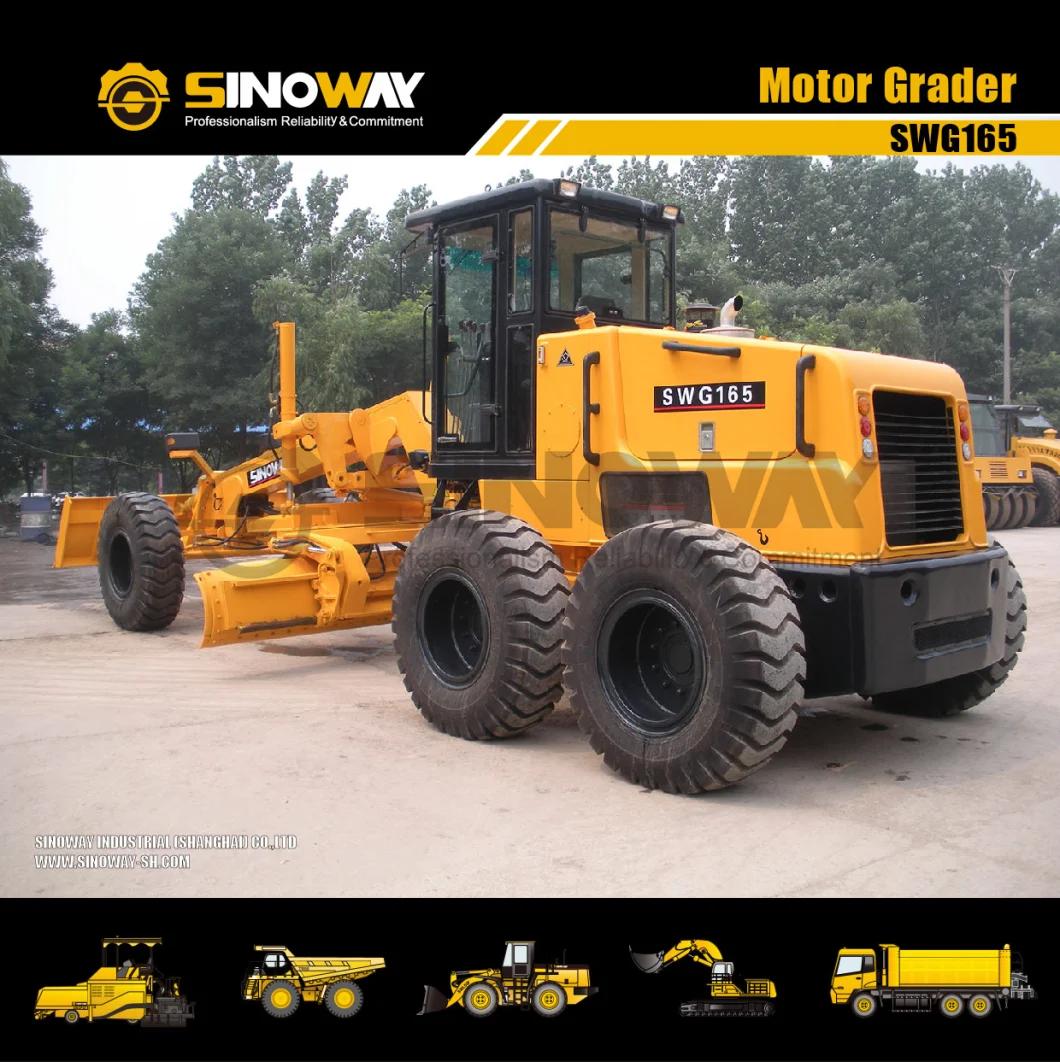

Product Show



Specifications

Engine
Model	Cummins 6BTA5.9
Type	Six-cylinder,water-cooled,turbocharged, aftercooled, mechanical injection
Rated power	125KW
Rated speed	2300rpm
Transmission System
Torque conveter type	3 elements, single stage
Torque ratio	1.5~3
Cooling type	Oil cooled, pressure circulation
Gearbox type	Power shift
Gear shifts(Forward/Reverse)Travelling speed(km/h)	F6/R3
Forward/Reverse I	5.31/5.31
Forward/Reverse II	8.21/13.33
Forward/Reverse III	13.33/30.55
Forward IV	20.47
Forward V	30.55
Forward VI	44.9
Steering System
Front wheel steering angle	45º(L/R)
Articulated steering angle	25º(L/R)
Drive type	Dual action cylinder
Axle
Drive type	Four wheel drive(6×4)
Front axle ground clearance	630mm
Front wheel lean	17º(L/R)
Oscillation	±15º
Drive axle	Three stages with No-SPIN differential
Working Equipment
Control system	Hydraulic drive system
Hydraulic pump	Gear pump
Control valve	Two sets, five pieces per set
Control pressure	18MPa
Hydraulic oil cylinder	Dual action cylinder
Max. tractive force	73.5KN
Max. lift above ground	450mm
Ground penetration	500mm
Blade width	3660mm
Blade cycling	360º
Max. bank cutting angle	90º(L/R)
Operating weight	14000kg
Braking System
Service brake	Hydraulic caliper disc brake actuate 4 rear wheels
Parking brake	Hand operated hoop brake
Dimensions
Overall length	8500mm
Overall width(wheel outside)	2600mm
Overall height	3500mm
Wheel base	6062mm
Front tread	2150mm
Rear tread	2340mm
Tyre size	17.5-25
Service Capacities
Fuel tank	228L
Engine crank case	19L
Hydraulic tank	130L
Gear box	21L
Rear axle	28L
Balance box	23L(each)
Worm gear case	2.5L
Tandem Drive
Type	Swing type with roller chain transmission
Speed ratio	18.03
