• Model NO.：SWG165
• Usage：Universal Type
• Engine Power：165HP
• Color：Yellow
• Brand：Sinoway
• Warranty：1 Year
• Shipment：by Container
• Transport Package：Nude
• Specification：ISO2008
• Trademark：SINOWAY
• Origin：China
• HS Code：84294990
• Production Capacity：1000 Units Per Year

Basic Info.

Model NO. SWG165 Usage Universal Type Engine Power 165HP Color Yellow Brand Sinoway Warranty 1 Year Shipment by Container Transport Package Nude Specification ISO2008 Trademark SINOWAY Origin China HS Code 84294990 Production Capacity 1000 Units Per Year

Product Description

Highlights of SINOWAY SWG165 Motor Grader

1. The frame adopts overall hot pressing and numerical control welding.
2. Cummins engine is specially used for construction machinery. Good power, stable quality, all over the country service outlets, easy maintenance. It has the characteristics of low noise and energy saving.
3. The three-stage drive axle is equipped with our patent "nospin non slip differential", which enables the grader to output full load power under various working conditions.
4. The operation hydraulic system adopts double pump and double circuit system, equipped with American control valve, with simple structure, which can realize synchronous speed of left and right lifting oil cylinders and simplify driver's operation.
5. Adopt full hydraulic brake system, equipped with original imported brake valve and pressure limiting valve. Make the brake safe and reliable.
6. The full hydraulic front wheel steering system is equipped with a road sense full hydraulic steering gear. The steering operation is light and responsive, which improves the driver's driving safety. And equipped with the hydraulic steering control frame, so that the turning radius is small, flexible.
7. The operation device is equipped with the company's patented structure of "gear ring of hobbing plate", which is maintenance free and improves the leveling accuracy.

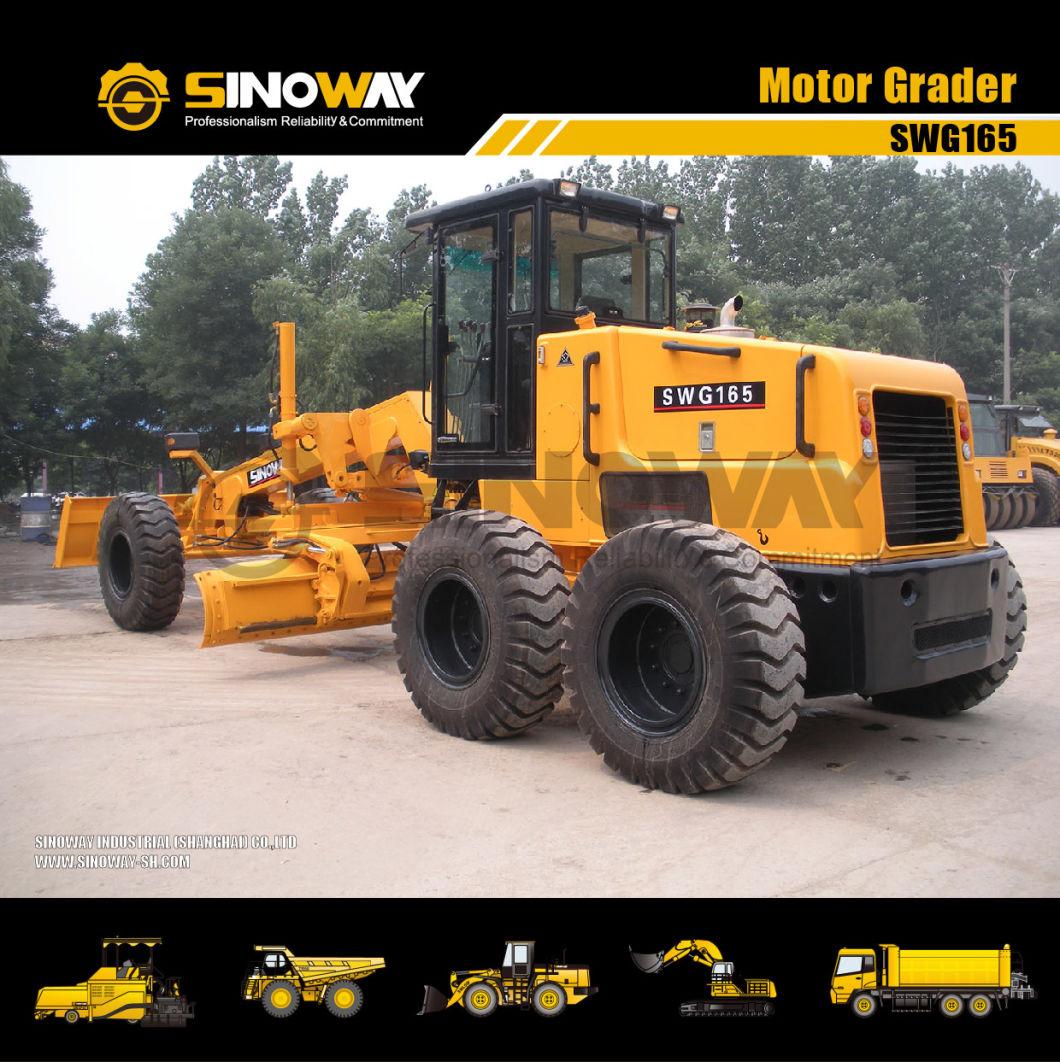

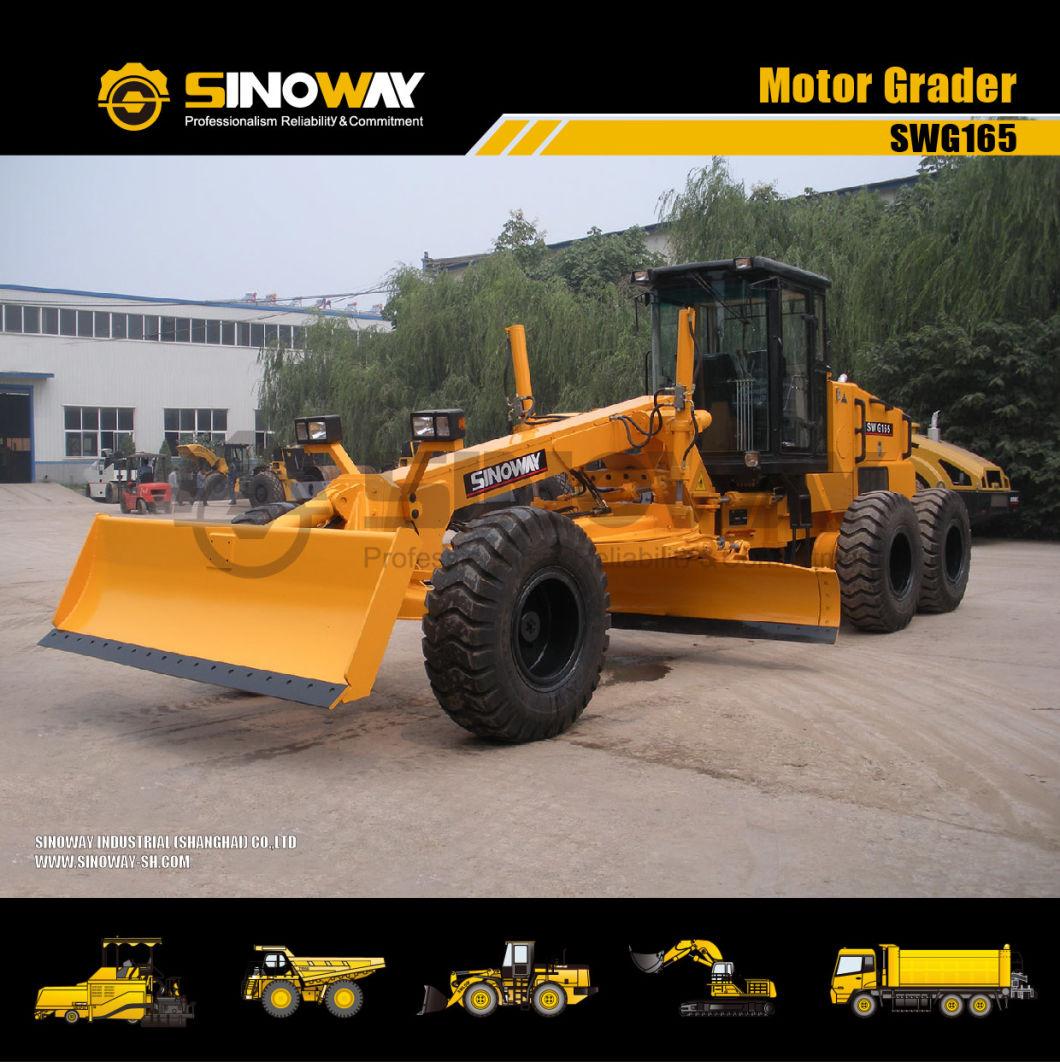

Product Show




Specifications


Engine
Model	Cummins 6BTA5.9
Type	Six-cylinder,water-cooled,turbocharged, aftercooled, mechanical injection
Rated power	125KW
Rated speed	2300rpm
Transmission System
Torque conveter type	3 elements, single stage
Torque ratio	1.5~3
Cooling type	Oil cooled, pressure circulation
Gearbox type	Power shift
Gear shifts(Forward/Reverse)Travelling speed(km/h)	F6/R3
Forward/Reverse I	5.31/5.31
Forward/Reverse II	8.21/13.33
Forward/Reverse III	13.33/30.55
Forward IV	20.47
Forward V	30.55
Forward VI	44.9
Steering System
Front wheel steering angle	45º(L/R)
Articulated steering angle	25º(L/R)
Drive type	Dual action cylinder
Axle
Drive type	Four wheel drive(6×4)
Front axle ground clearance	630mm
Front wheel lean	17º(L/R)
Oscillation	±15º
Drive axle	Three stages with No-SPIN differential
Working Equipment
Control system	Hydraulic drive system
Hydraulic pump	Gear pump
Control valve	Two sets, five pieces per set
Control pressure	18MPa
Hydraulic oil cylinder	Dual action cylinder
Max. tractive force	73.5KN
Max. lift above ground	450mm
Ground penetration	500mm
Blade width	3660mm
Blade cycling	360º
Max. bank cutting angle	90º(L/R)
Operating weight	14000kg
Braking System
Service brake	Hydraulic caliper disc brake actuate 4 rear wheels
Parking brake	Hand operated hoop brake
Dimensions
Overall length	8500mm
Overall width(wheel outside)	2600mm
Overall height	3500mm
Wheel base	6062mm
Front tread	2150mm
Rear tread	2340mm
Tyre size	17.5-25
Service Capacities
Fuel tank	228L
Engine crank case	19L
Hydraulic tank	130L
Gear box	21L
Rear axle	28L
Balance box	23L(each)
Worm gear case	2.5L
Tandem Drive
Type	Swing type with roller chain transmission
Speed ratio	18.03
