Track Type Material Handler Excavator with Scarp Matel Grabbing and Handling

Sinoway Industrial (Shanghai) Co., Ltd.
  • Type：Crawler Excavator
  • Usage：Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
  • Bucket：Grab Shovel
  • Transmission：Hydraulic Transmission
  • Drive Type：Internal Combustion Drive
  • Bucket Capacity：1.0~1.5m³

Base Info

  • Model NO.：SWCMH420
  • Size：Medium-Sized
  • Certification：ISO9001: 2000, ISO14001
  • Condition：New
  • Max. Lifting Height：12 M
  • Max. Working Radius：10.5 M
  • Max. Lifting Monent：300 Kn.M
  • Max. Travel Speed：5.0 Km,H
  • Warranty：1 Year
  • Operating Weight：42 Ton
  • Transport Package：Nude
  • Specification：iso
  • Trademark：SINOWAY
  • Origin：China
  • HS Code：84314990
  • Production Capacity：100 PCS , Year

Description

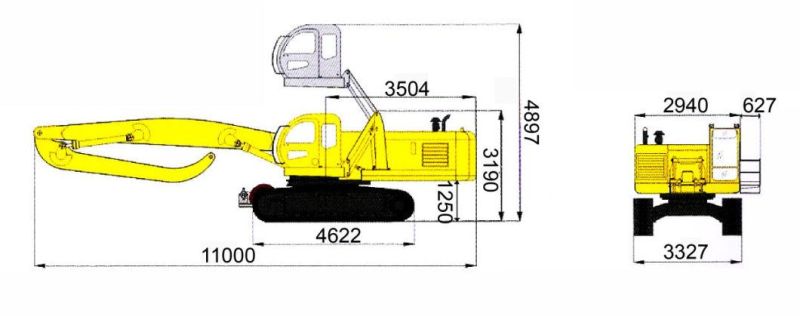

Dimensions  Machine length11000mMachine height3190mmMachine width  3327mmTrack length4622mmMaximum lift height of the cab4897mmTail turning radius 3504mmTurntable height off the ground1251mmTurntable width2940mmWidth of walking platform627mmTransportation dimensions exclude width of the walking platform.The cap is optional:Fixed cab / heightened cab / lift-able cab
Working Scope
Lifting Performance Parameters3.54.56.07.59.010.5HeightMax. height      12      10.5 7.0 5.0  9  6.05.0  7.5  5.94.94.0 6.0 7.05.84.73.9 4.510.06.85.74.63.8 3.09.86.55.54.43.73.01.5 6.35.44.23.42.80 6.05.24.13.2 -1.5  5.04.03.0 Max. depth
Length of the boom is optional, and the optimum proportion can be obtained according to the actual demand of the work.
 Technical Parameters   PowerEngine154kwElectric motor110kwFuel tank  440LWalking SystemWalking speed  3.6/5.2km/hMax. traction force160KNGrade ability  25%Hydraulic SystemMax. flow2 x 214L/minMax. working pressure31MPaHydraulic oil tank440LPilot pressure3.8MPaMain Performance ParametersTotal weight42tMax. lifting moment50t.mMax. swing speed8r/min (Single power type )Max. swing torque90KN.mTrack Type Material Handler Excavator with Scarp Matel Grabbing and Handling
