25ton Good Condition Port Material Handler One Wheel with Good Price

Sinoway Industrial (Shanghai) Co., Ltd.
  • Type：Wheel Excavator
  • Usage：Special Excavator, Marine Excavator, GM Excavator
  • Bucket：Grab Shovel
  • Transmission：Hydraulic Transmission
  • Drive Type：Internal Combustion Drive
  • Bucket Capacity：1.0~1.5m³

Base Info

  • Model NO.：swmj2500l
  • Size：Medium-Sized
  • Certification：ISO9001: 2000, ISO14001
  • Condition：New
  • Working Radius：10.2 M
  • Max. Lifting Height：11.3 M
  • Engine Power：260HP
  • Operating Weight：25ton
  • Warranty：One Year
  • Color：Yellow
  • Transport Package：Nude
  • Specification：ISO
  • Trademark：SINOWAY
  • Origin：China
  • HS Code：84314990
  • Production Capacity：200 PCS Per Year

Description

Basic Info.

Model NO. swmj2500l Size Medium-Sized Certification ISO9001: 2000, ISO14001 Condition New Working Radius 10.2 M Max. Lifting Height 11.3 M Engine Power 260HP Operating Weight 25ton Warranty One Year Color Yellow Transport Package Nude Specification ISO Trademark SINOWAY Origin China HS Code 84314990 Production Capacity 200 PCS Per Year

Product Description

The main Feature of SINOWAY Material Handlers
1-Dual engine ( Electric motor + Diesel engine) more environmental protection;
2-Electric operation has over-current and heat leakage protection device;
3-Utomatic identification of phase sequence to prevent reverse rotation of oil pump;
4-Hydraulic system power-off, oil self-locking protection device;
5-Multiple compound movements during operation to improve efficiency;
6-The hydraulic system is equipped with air-cooled radiator;
7-The gripper can rotate and change direction automatically 360 degrees;
8-When electric operation is carried out in the upper control room, there is a dual-purpose air conditioner for heating and cooling;
9- Hydraulic Cabin elevatied.

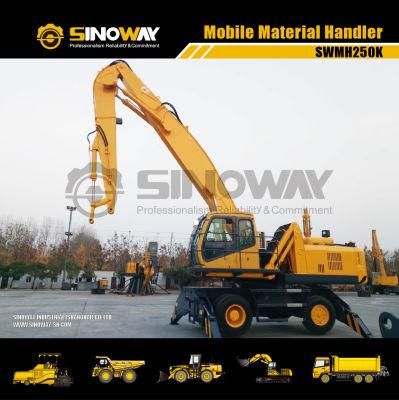

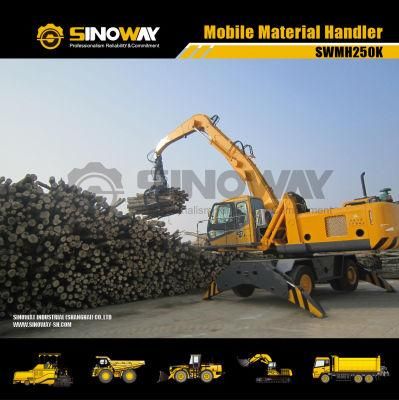

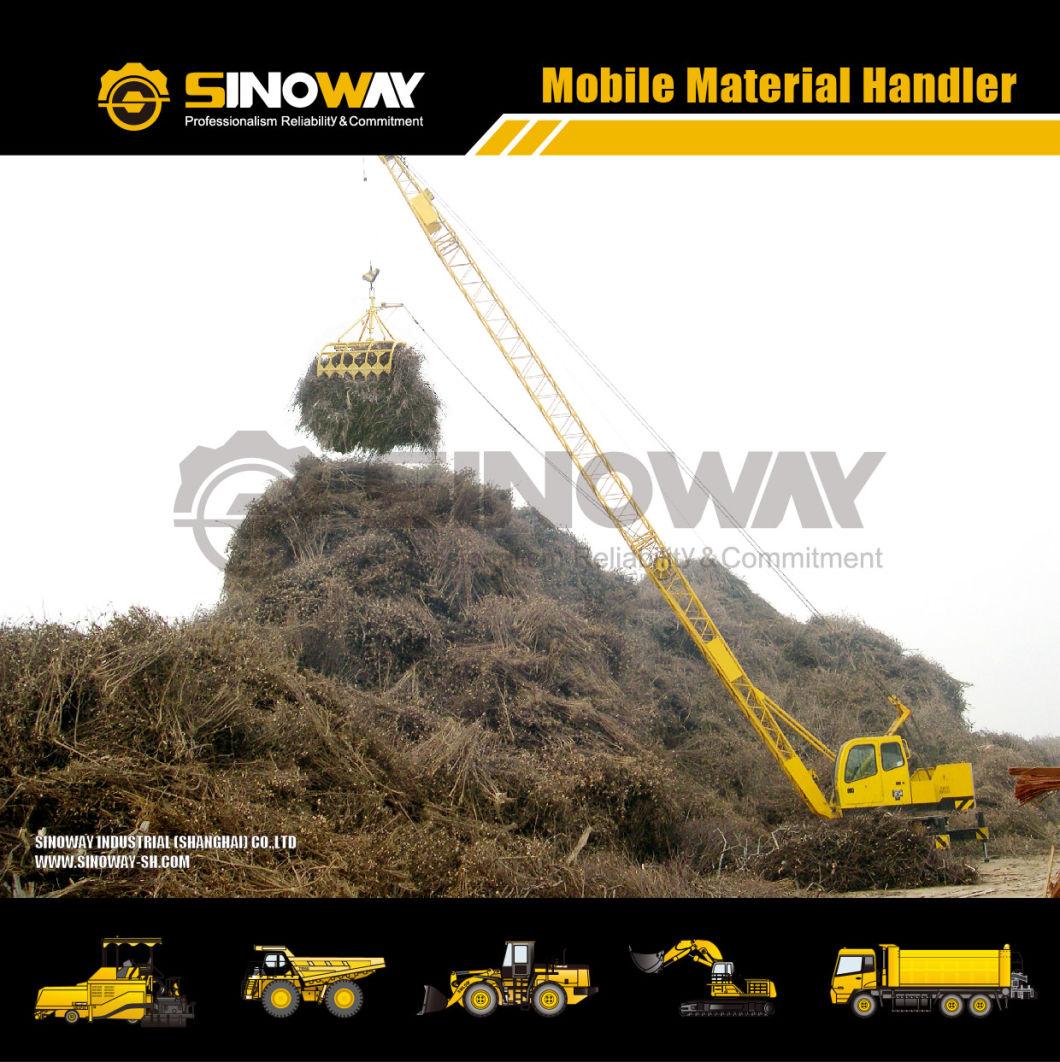

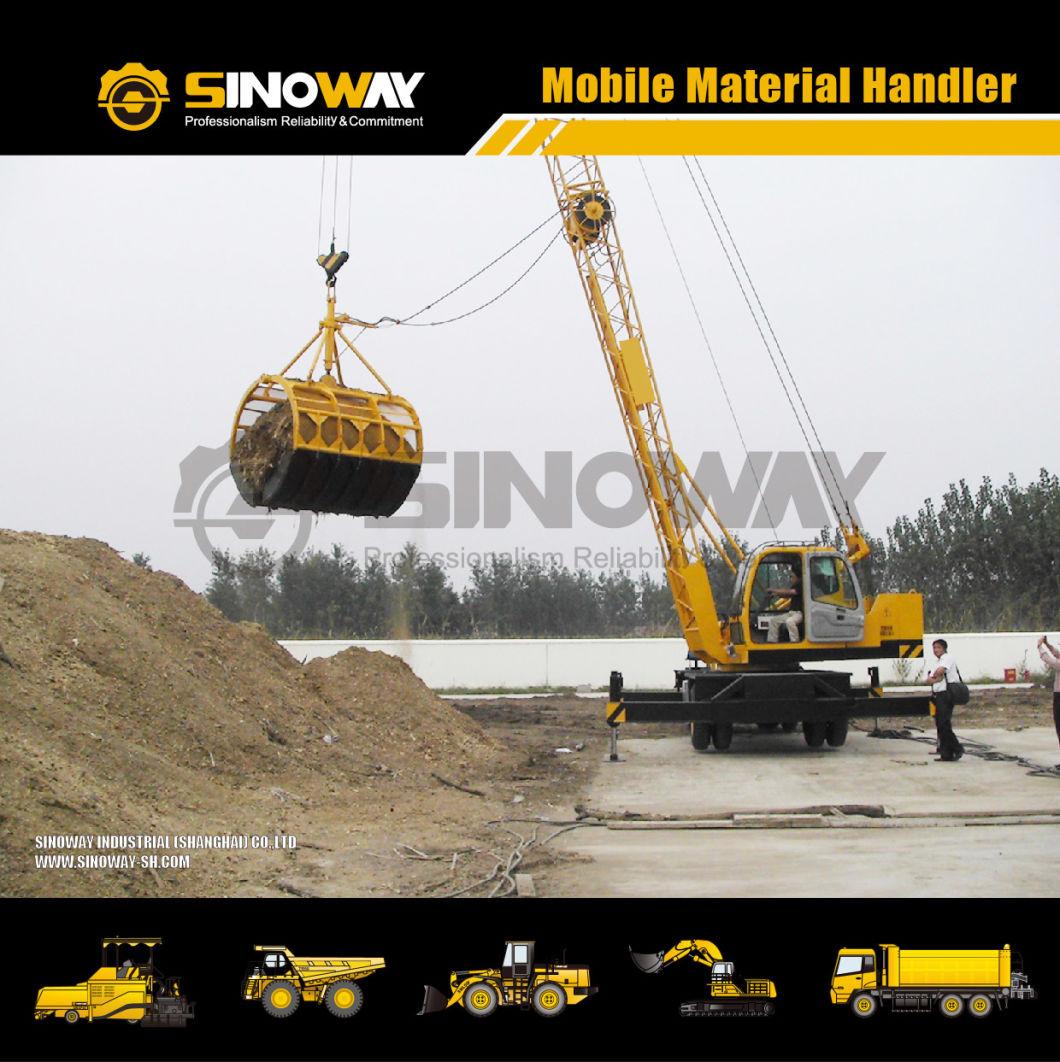

Product Show

25ton Good Condition Port Material Handler One Wheel with Good Price25ton Good Condition Port Material Handler One Wheel with Good Price
Dimensions
Overall length15350mm
Overall height3620mm
Overall width3260mm
Wheelbase3200mm
The maximum lifting height of driving cab5320mm
Tail slewing radius4122mm
Gap between rotary table and ground1519mm
Width of platform627mm
Power
Engine132kw
Electric Motor75kw
Fuel tank295L
Walking System
Walking speed15km/h
Max.tranction force110KN
Gradeability15%
Hydraulic System
Max.flow2*160L/min
Max.working pressure28Mpa
Hydraulic oil tank420L
Pilot pressure3.6Mpa
Main Performance Parameters
Total weight35t
Max.Lifting moment100t.m
Max.swing speed3.6r/min
Max.swing torque51KN.m
