Mobile Concrete Pump Movable Diesel Trailer with Mixer
Linyi Raytone Machinery Imp&Exp Co., Ltd.- Type：Concrete Pump
- Shotcrete Type：Wet
- Machining Process：Vacuum
- Structure：Spiral Type
- Productivity：35m²,h
- Feeding Height：1100mm
Base Info
- Model NO.：JBTS40-13-85R
- Vibrating Amplitude：1.0mm
- Certification：ISO9001: 2000
- Condition：New
- Color：Yellow
- Dimension：4700*2300*2800mm
- Weight：5300kg
- Speed：2300r,Min
- Max Concrete Outlet Pressure：13MPa
- Concrete Slump：120-230mm
- Main Motor：85kw
- Transport Package：Suitable for Sea Transportation
- Specification：4700*2300*2800mm
- Trademark：Raytone Machinery
- Origin：Shandong, China(Mainland)
- HS Code：8413400000
- Production Capacity：50 Sets Per Month
Description
Basic Info.
Model NO. JBTS40-13-85R Vibrating Amplitude 1.0mm Certification ISO9001: 2000 Condition New Color Yellow Dimension 4700*2300*2800mm Weight 5300kg Speed 2300r/Min Max Concrete Outlet Pressure 13MPa Concrete Slump 120-230mm Main Motor 85kw Transport Package Suitable for Sea Transportation Specification 4700*2300*2800mm Trademark Raytone Machinery Origin Shandong, China(Mainland) HS Code 8413400000 Production Capacity 50 Sets Per MonthProduct Description
Mobile Concrete Pump With Mixer Movable Trailer
Brief Introduction:
the diesel movable concrete pump has been widely used in water conservancy, electricity, railway, highway, tunnel, mine, national defense, etc. the capacity covers from 15m3 to 90 m3 per hour, vertical distance can reach up to 70 meters high, horizontal distance can ga as far as 250 meters.
Main Technical Parameters:
| Item | Unit | Drum mixer pump | |
| Max Theoretical Concrete Output Capacity | m³/h | 40 | |
| Max Concrete outlet pressure | Mpa | 13 | |
| Concrete slump | mm | 120-230 | |
| Aggregate Size | mm | breakstone≤40 | |
| Main pump | South Korea Kwasaki112 | ||
| Distribution valve | S valve | ||
| Hydraulic valve | Beijing Huade | ||
| Main motor | KW | Yuchai85 | |
| Mixer model | JVC450 | ||
| Power of mixing motor | KW | ||
| Mixer winch motor | KW | ||
| Mixer water motor | KW | ||
| Speed | r/min | 2300 | |
| Concrete cylinder diameter/stroke | mm | φ180/1000 | |
| Pumping oil cyliner diameter/stroke | mm | φ100/1000 | |
| High/low pressure switch | NO | ||
| Capacity of oil tank | L | 400 | |
| Hopper capacity | m³ | 0.6 | |
| Feeding height | mm | 1100 | |
| The theoretical maximum delivery distance vertical/horizontal | m | 70/150 | |
| Washing way of pipeline | Washing | ||
| Overall dimensions(L*W*H) | m | 4700*2300*2800 | |
| Total weight | Kg | 5000 | |
| Chassis model | Trail | ||
| Support model | The fixed support leg | ||
| Hydraulic oil cooling model | The air cooling radiator |

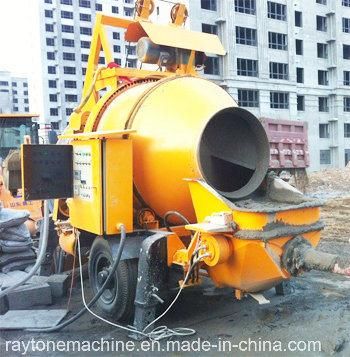

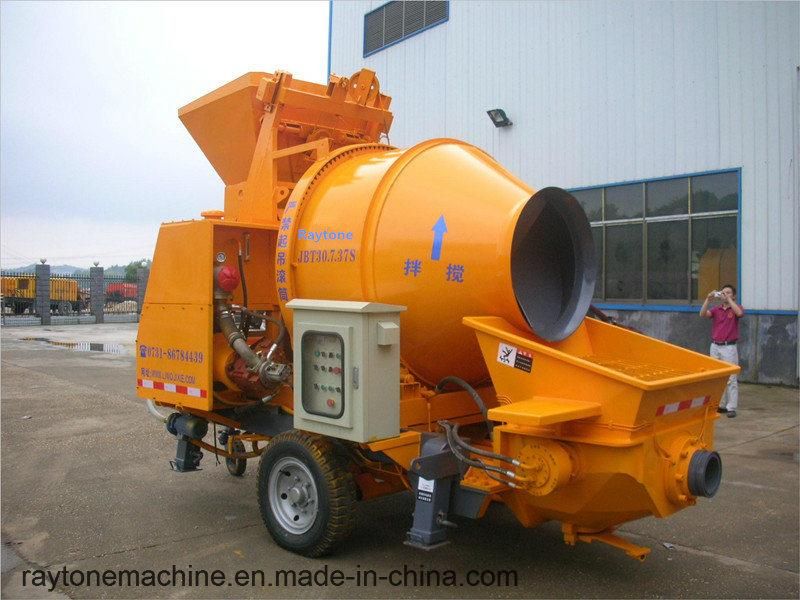

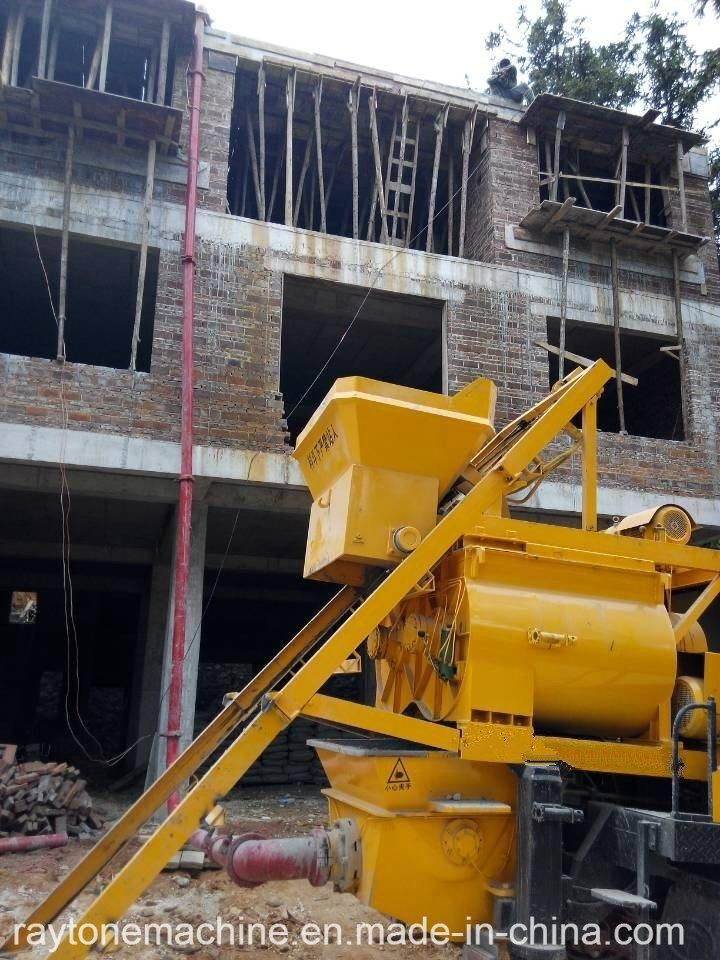

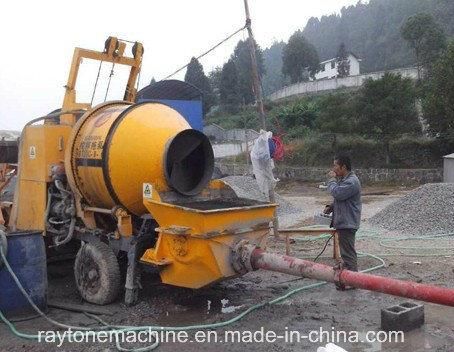

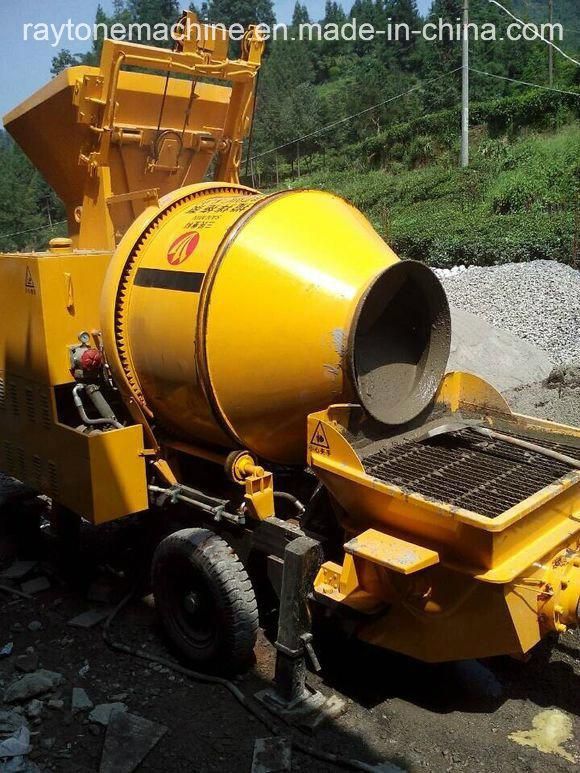

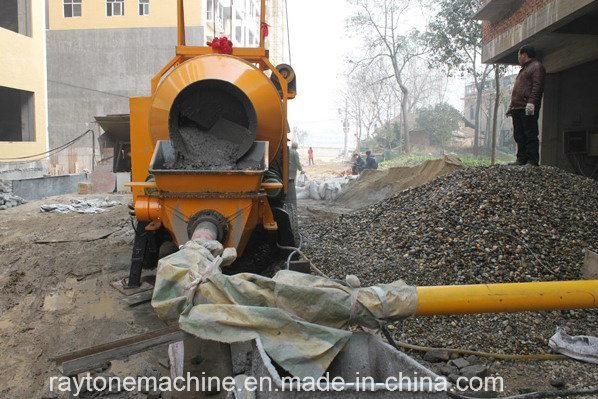

Products Pictures:
