• Model NO.：SWE08
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Color：Blue
• Function：Earthmoving
• Operating Weight(Kg)：910kg
• Standard Bucket Capacity(M3)：0.022cbm
• Bucket Digging Force：8.5 Kn
• Engine Model：Yanmar 2tnv70
• Engine Type：2-Cycle Water-Cooled, Direct Injection
• Engine Displacement：0.57L
• Engine Max Power/Rpm：7.2kw,2400rpm
• Engine Fuel Tankengine Fuel Tank：10L
• Transport Package：Bulk
• Specification：CE
• Trademark：kudat
• Origin：China
• Production Capacity：500PCS,Year

Basic Info.

Model NO. SWE08 Size Small-Scale Certification CE, ISO9001: 2000 Condition New Color Blue Function Earthmoving Operating Weight(Kg) 910kg Standard Bucket Capacity(M3) 0.022cbm Bucket Digging Force 8.5 Kn Engine Model Yanmar 2tnv70 Engine Type 2-Cycle Water-Cooled, Direct Injection Engine Displacement 0.57L Engine Max Power/Rpm 7.2kw/2400rpm Engine Fuel Tankengine Fuel Tank 10L Transport Package Bulk Specification CE Trademark kudat Origin China Production Capacity 500PCS/Year

Product Description

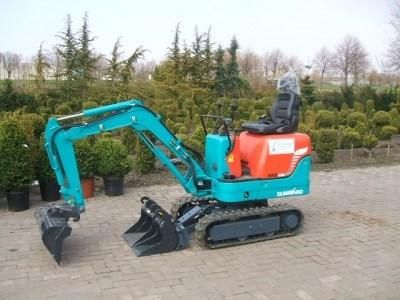

SWE08 MINI EXCAVATOR SPECIFICATION

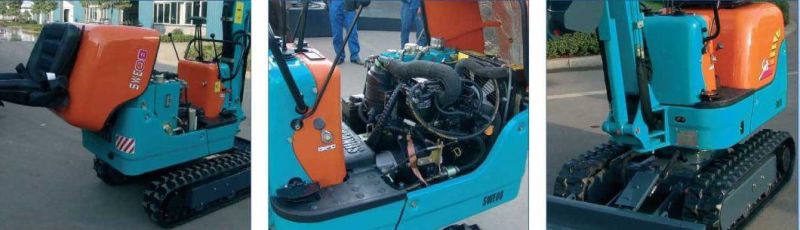

Mini, flexible machine, with super performance, Special design of travel pressure discharge
The specially designed travel pressure discharge function of mechanical pilot operation ensures the safety and operability of the machine, Full open engine hood Outstanding  accessibility to maintenance area. Operator-oriented design. The SWE08 offers the operator a comfortable environment despite the small size. Travel in high and low speed, Separate control for working equipment and travel, Extendable Chassis, It assures the machine of both easy-to-pass confined area and working stability

Main Spec.

Operating weight	910kg
Standard bucket capacity	0.022m3
Bucket digging force	8.5 KN
Engine Model	YANMAR 2TNV70
Engine Type	2-cycle water-cooled, direct injection
Engine Displacement	0.57L
Engine Max power/rpm	7.2kw/2400rpm
Engine Fuel tank	10L
Traveling speed of undercarriage & swing	3.6/1.8 km/h
Max Gradeability of undercarriage & swing	30°
Swing speed of undercarriage & swing	9.9rpm
Type of hydraulic system
Main Pumps of hydraulic system	2 Gear Pump
Max .Pump Flow of hydraulic system	2*11 L/min
Max operating pressure of hydraulic system	16Mpa
Hydraulic oil tank of hydraulic system	9.5L
Track base	900mm
Crawler length	1224mm
Ground clearance of platform	417 mm
Tail swing radius	790mm
Overall width	700/ 900mm
Standard width of crawler	180mm
Min. ground clearance	141mm
Max. ground clearance of crawler	330mm
Overall length	2740mm
Overall height	1650mm
Overall width	700mm
Max. digging height of working range	2690mm
Max. dumping height of working range	1965mm
Max. digging depth of working range	1510mm
Max. vertical digging depth of working range	1108mm
Max. digging radius of working range	2800mm
Max. reaching level at ground of working range	2684mm
Max. lifting height of blade of working range	190mm
Max. digging depth of blade of working range	190mm
Min. swing radius of working range	1179mm
Width & height of blade of working range	700mm & 180mm

 After-sales Service
Warranty
Kudat grants our clients a twelve-month-period or 1500-hours warranty for any machine purchased from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation. The defective part will be repaired or replaced free of charge at our discretion.

Spare Parts
Kudat is dedicated to provide our clients with genuine spare parts with the highest quality, exact fitness and appropriate function. With our global distributor network, you are guaranteed with fast deliveries and services, wherever you are. Please submit your spare parts request to us, and list products name, model, equipment serial number, description of required parts. We guarantee that your request will be handled quickly and appropriately.

Installation & Maintenance
Kudat is able to provide you with the overall installation of complicated machinery and equipment, for example--crawler crane,concrete batching plant, crushing machines etc.,allowing you to start the normal operation of cranes immediately. After installation, we will make inspection of the whole machine, operate equipment, and provide you with testing data reports of installation and operation.

Training
Kudat offer perfect facilities and comfortable environment and can provide training service to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other trainings, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.

Technical Advice
Kudat can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advices, your machine service life can be significantly prolonged and sustained with high capacity.
