• Model NO.：mini auger
• Type：Small Loader
• Loading Capacity：850kg
• Engine Model：Xinchang 498
• Engine Power：60HP(45kw)
• Operating Weight：3150kg
• Attachment：Mini Auger
• Attachment1：Sweeper
• Attachment2：Breaker
• Attachment3：Trencher
• Attachment4：Planer
• Attachment5：Snow Blower
• Attachment6：Mixer
• Attachment7：Drum Scraper
• Attachment8：Vibratory Roller
• Attachment9：Bulldozer
• Attachment10：Fork
• Transport Package：by Sea Required
• Specification：60HP
• Trademark：Kudat
• Origin：China
• HS Code：8429590000
• Production Capacity：500sets,Month

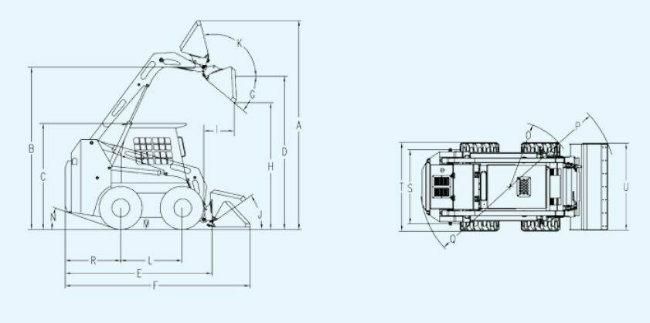

EngineEngine model Xingchang 498Bore x stroke (mm) 98x105Rated power (Kw) 45Rotary speed(rpm)2500Number of cylinders 4Max. torque (N.m) 193Displacement (L) 3.168PerformanceMax.Speed (km/h) 12Tire model12-16.5Loading Capacity (kg) 850Bucket capacity(m³)0.5Rated flow(L/min) 75Fuel tank capacity(L)60Weight with bucket(kg)3150DimensionA Height at Maximum Extension (mm) 3690B Hinge Pin Height (mm) 2920C Total Height (mm) 2080D Height to bottom of bucket(mm) 2783E Overall length without bucket(mm)2640F overall length with bucket(mm) 3440G Dumping angle at maximum height(°)40H Dumping height(mm) 2380I Dumping reach(mm)750J Rollback at ground position(° ) 30K Rollback fully raised at max height(° )104L Wheelbase(mm) 991M Ground clearance(mm) 185N Angle of departure(° ) 20O Front turning radius without bucket(mm)1198P Front tuning radius(mm) 1958Q Rear tuning radius(mm) 1728R Rear length (mm) 1208S Track width( mm) 1500T Width (mm) 1880U Bucket width (mm) 1880Dimension Diagram

3.Simple Configuration1.Chinese xinchang brand diesel engine model 4982.Usa Sauer/Italy BP brand hydraulic pump3.Usa Eaton brand hydraulic motor4 mechanical control system5.open cabin6.mechanical self-leveling system7.bobcat type quick coupler
