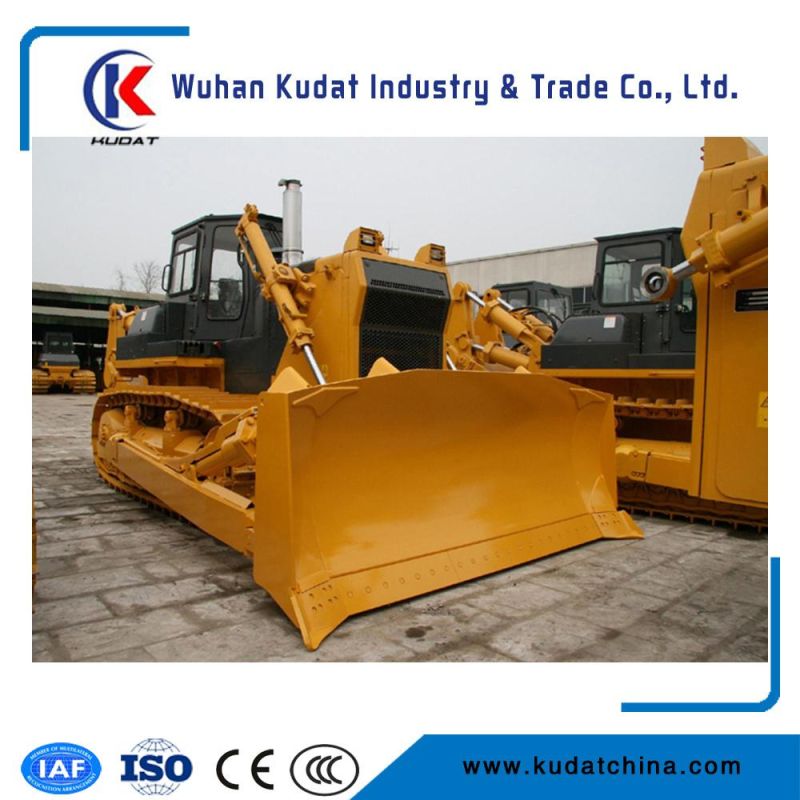

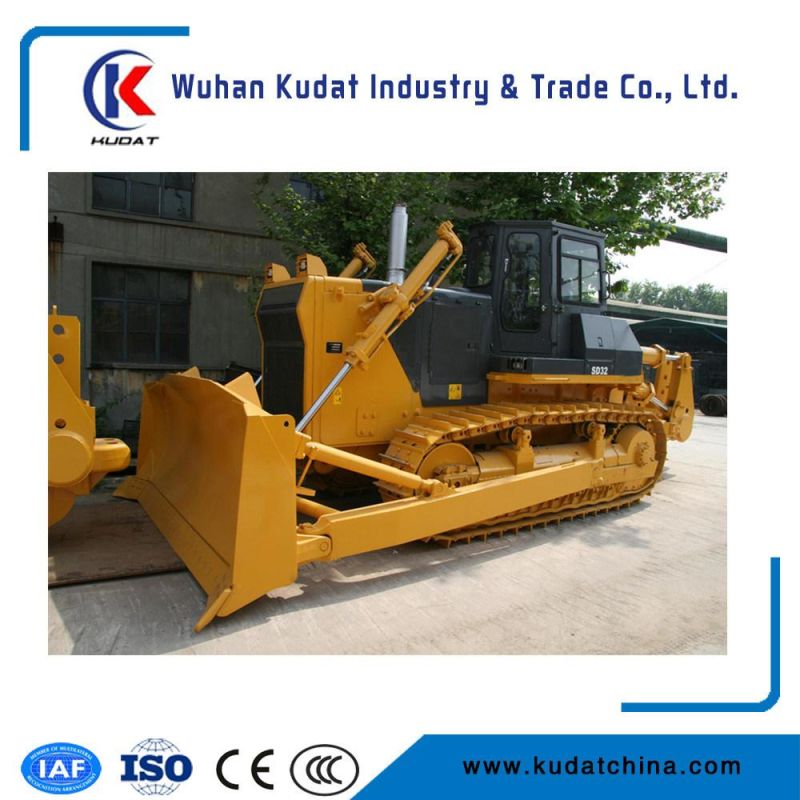

• Model NO.：SD32
• Certification：ISO9001: 2000
• Condition：New
• Color：Yellow
• Operation Weight：36800kg
• Ground Pressure：93kpa
• Track Gauge：2083kg
• Min. Ground Clearance：556mm
• Gradient：30,25
• Dozing Capacity：11.24m3
• Blade Width：3940mm
• Max.Digging Depth：582mm
• Overall Dimensions：7751X3940X3549mm
• Transport Package：Bulk
• Specification：SGS
• Trademark：kudat
• Origin：China
• Production Capacity：500PCS,Year

SpecificationDozer Tilt Operation weightkg36800with ridge busterGround pressurekpa93 Track gaugemm2083 Min. Ground clearancemm556 Gradientº30/25 Dozing capacitym311.24 Blade widthmm3940 Max.digging depthmm582 Overall dimensionsmm7751X3940X3549    EngineType  NTA855-C360S10Rated revolutionrpm2100Reted powerKW235Torque storage coefficientN.m/rpm20%   Undercarriage systemType The track is triangle shape. The sprocket is elevated.Number of track rollers (each side) 8Pitchmm216Width of shoemm560   Implement hydraulic systemMax. system pressureMpa20Pump type high pressure gears pumpSystem outputL/min220   Driving systemToque converterTorque converter is power separating hydraulic-mechanic type.TransmissionPlanetary, power shift transmission with three speeds forward and three speeds reverse. Speed and direction can be quickly shifted.Steering clutchThe steering clutch is hydraulic pressed, non-constant engaged clutch.Steering brakeThe braking clutch is hydraulic pressed by spring, separated hydraulic, constant meshed type.Final driveThe final drive is two-stage planetary reduction gear mechanism, splash lubrication.




After-sales Service
Warranty
Kudat grants our clients a twelve-month-period or 1500-hours warranty for any machine purchased from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation. The defective part will be repaired or replaced free of charge at our discretion.

Spare Parts
Kudat is dedicated to provide our clients with genuine spare parts with the highest quality, exact fitness and appropriate function. With our global distributor network, you are guaranteed with fast deliveries and services, wherever you are. Please submit your spare parts request to us, and list products name, model, equipment serial number, description of required parts. We guarantee that your request will be handled quickly and appropriately.

Installation & Maintenance
Kudat is able to provide you with the overall installation of complicated machinery and equipment, for example--crawler crane,concrete batching plant, crushing machines etc.,allowing you to start the normal operation of cranes immediately. After installation, we will make inspection of the whole machine, operate equipment, and provide you with testing data reports of installation and operation.

Training
Kudat offer perfect facilities and comfortable environment and can provide training service to different users. The training sessions include product training, operation training, maintenance know-how, technical know-how training, standards, laws and regulations training and other trainings, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the client's site.

Technical Advice
Kudat can also help clients coordinate with trained service personnel to provide you detailed and extensive knowledge about your specific machine. With our technical advices, your machine service life can be significantly prolonged and sustained with high capacity.
