• Model NO.：G08K
• Color：White
• Geometric Volume：13.6cbm
• Drum Length：4820mm
• Max.Diameter of Drum：2280mm
• Weight：14000kg
• Power：274 Kw
• Volume of Water Tank：450L
• Transport Package：Comply with Export Packaging Requirements
• Specification：8935*2500*3890mm
• Trademark：XCMG
• Origin：Xuzhou, Jiangsu, China
• HS Code：87054000
• Production Capacity：1000,Year

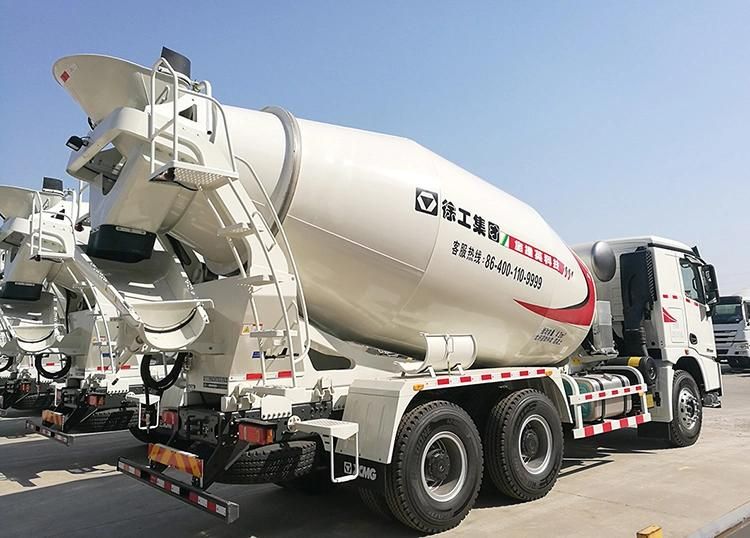

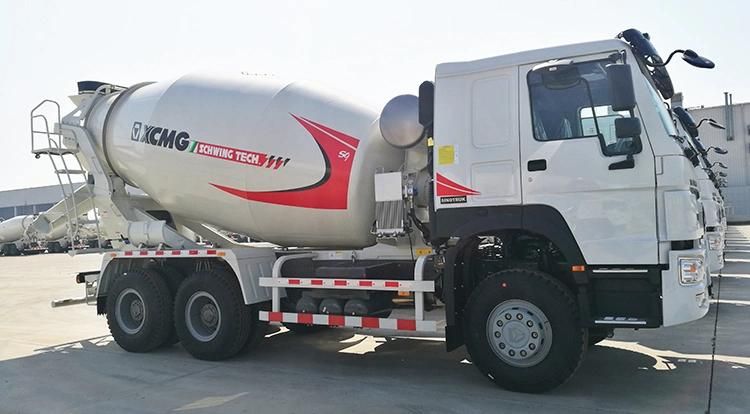

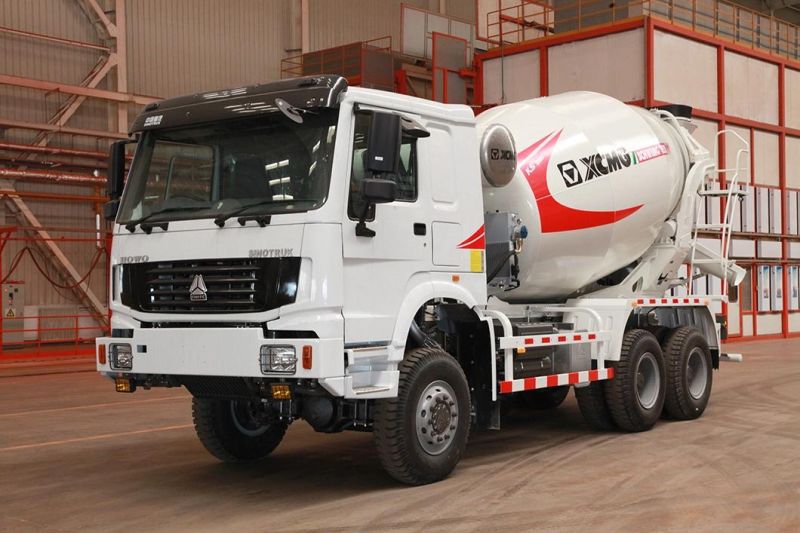

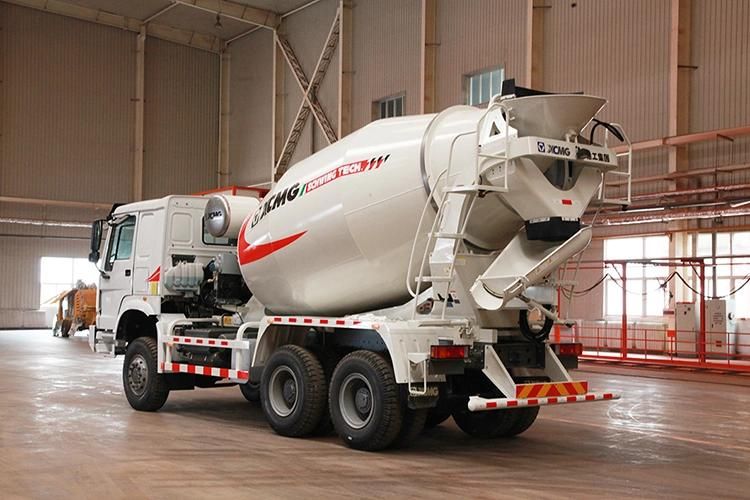

Overview Product ParametersCatagoryItemUnitParameterOverall ParameterModel G08KCurb weightkg14000Max.total weightkg25000Outline dimension (L×W×H)mm8935×2500×3890ChassisChassis brand SinotrukChassis model ZZ1257N3641WSteering position LHDDriving type 6×4Wheel basemm3625+1350Tire 10.00R20Power take-off FlywheelEngineModel WD615.69Max.powerkW247DisplacementL9.726Emission standard  Euro IIDrum systemGeometric volumem³13.6Agitating volumem³8Max.diameter of drummm2280Mixing drum lengthmm4795Slanting angle°15Rotating speedr/min0~14Feeding speedm³/min≥3Discharge speedm³/min≥2Discharge residual rate%< 0.4Slump scopemm50~210Product Show






Company Profile

FAQ

1: What kind terms of payment can be accepted?

A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?
A: 30 days after receiving the deposit.

4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
