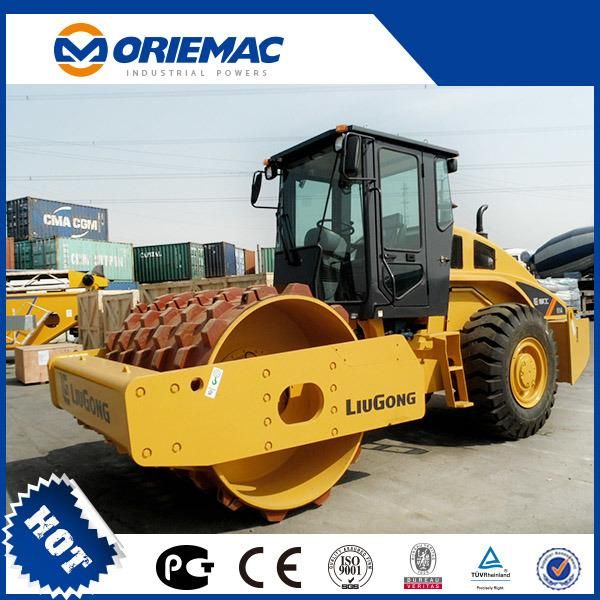

Liugong Mechanical Vibratory Roller Clg618
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Type：Road Roller
- Working Method：Vibration
- Axle：Biaxial Three-Wheel
- Grinding Wheel Type：Light Grind
- Compaction Depth：30cm
- Engine Type：Diesel Engine
Base Info
- Model NO.：CLG618
- Travel Speed：40cm,s
- Centrifugal Force：27KN
- Certification：EPA
- Condition：New
- Transport Package：Nude Package
- Specification：6200*2230*3040 mm
- Trademark：Liugong
- Origin：China
- HS Code：84294019
- Production Capacity：5000
Description
Feasures
1. Operator Comfort: Foot and hand throttle both available for us; Vibration absorption units produced by Zhuzhou Times provide excellent performance and safe comfortable operation; Sound reducing cab with LiuGong patented roll over safety features; Clear 360 degree view
2. Reliability: Advanced reliable Shangchai engine; World-class parts used increases reliability and performance; Engine cover designed for providing noise reduction, clear rear view and easy maintenance; Sauer plunger pump and hydraulic motor provides world-class performance and reliability Parts and service you can count on; LiuGong loader axle installed with low failure rate, easy repair and operate, widely used fitting and reliable
3. Ease of Maintenance: Easy engine access and lots of maintenance space; Front wheel bump cover is easy to change based on working conditions.
4. Built for Efficiency: Dual-frequency technology improves compaction in various conditions; High compaction force and great excitation force; Attractive useful vibration paramenters. 40mm thick steel drum with powerful compaction; Large 285L gas tank ensures over 16 hours nonstop operation; High heat dispersion radiator with parallel design wing structure; Designed for powerful efficient soil compaction; Meets EU stage II/EPA tier 2 emission requirements
| Engine | Emission Regulation | Tier 2 / Stage II |
| Make | Shangchai | |
| Gross Power | 128 kW (172 hp) @ 2,000 rpm | |
| Net Power | 115 kW (156 hp) @ 2,000 rpm | |
| Peak Torque | 720 N@m | |
| Number of Cylinders | 6 | |
| Aspiration | turbocharged | |
| Cooling Type | water | |
| Performance | Static Linear Front Drum Load | 437 kg-mm |
| Working Width | 2,130 mm | |
| Overall dimension (L×W×H) | 6200*2230*3040 mm | |
| Number of Vibrating Drum | 1 | |
| Nominal Amplitude Range | 1.9 / 0.9 mm | |
| Vibration Frequency Range | 32 / 30 Hz | |
| Centrifugal Force Range | 360 / 180 kN | |
| Number of Amplitude Settings | 1 | |
| Operating Weights | Operating Weight with Ballast | 18,000 kg |
| Weight on Front Drum | 9,500 kg | |
| Weight on Tires | 8,500 kg | |
| Electrical Syetem | System Voltage | 24 V |
| Drive Train | Theoretical Gradeability, without / with Vibration | 30% |
| Transmission Type | synchronous shift | |
| Maximum Speed, fwd | 11 km/h | |
| Inside Turning Radius | < 4,370 mm | |
| Outside Turning Radius | < 6,500 mm | |
| Hydraulic System | Main Pump Type piston | piston pump |
| Main Relief Pressure | 35 MPa | |
| Tires | Tire Size | 20.5 - 25 - 16 PR |
| Service Capacities | Fuel Tank | 285 L |
| Engine Oil | 19 L | |
| Cooling System 28 L | 32 L | |
| Transmission and Torque Converter | 14.5 L | |
| Axles | Steering System | hydraulic |
| Steering Method | articulation | |
| Steering Angle ±35° | ±35° | |
| Steering Relief Pressure | 16 MPa |
Picture Show

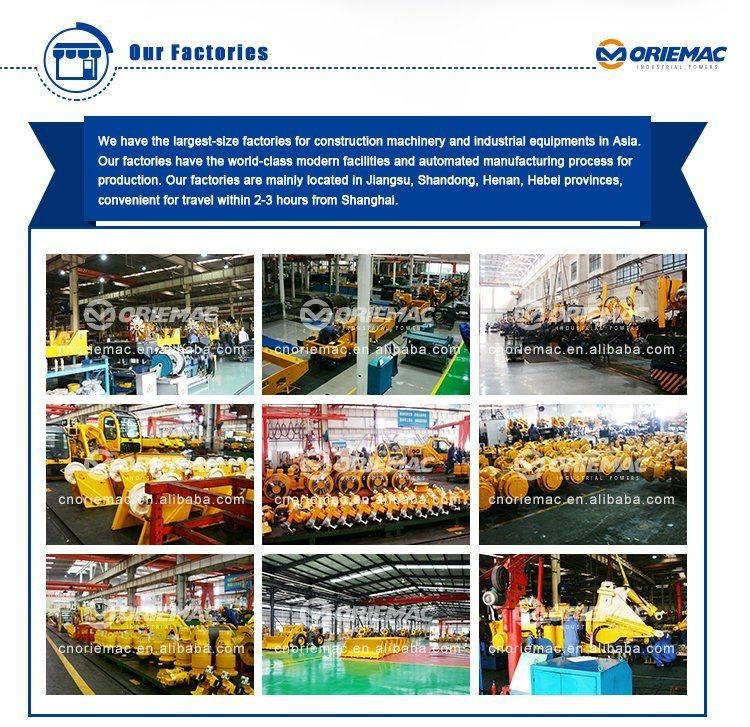

About Company
