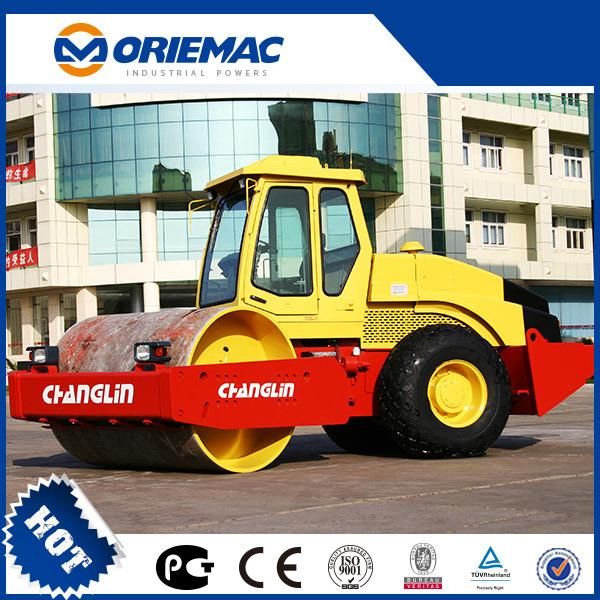

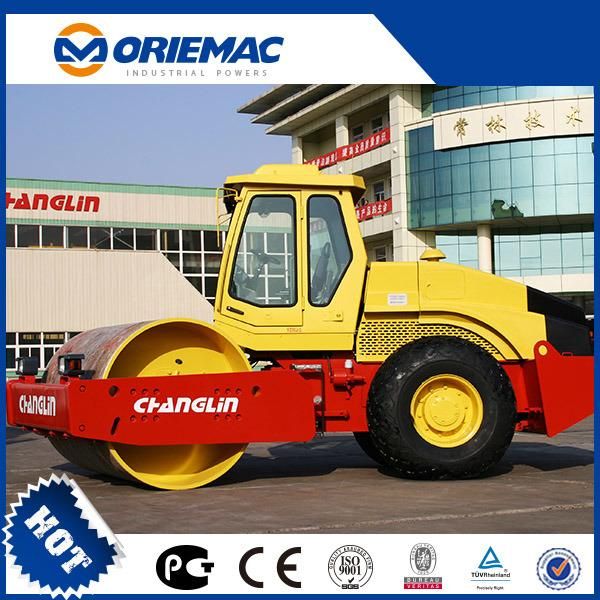

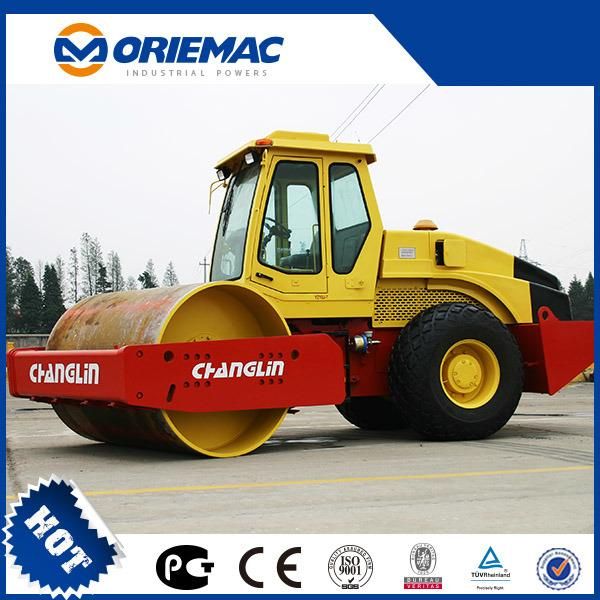

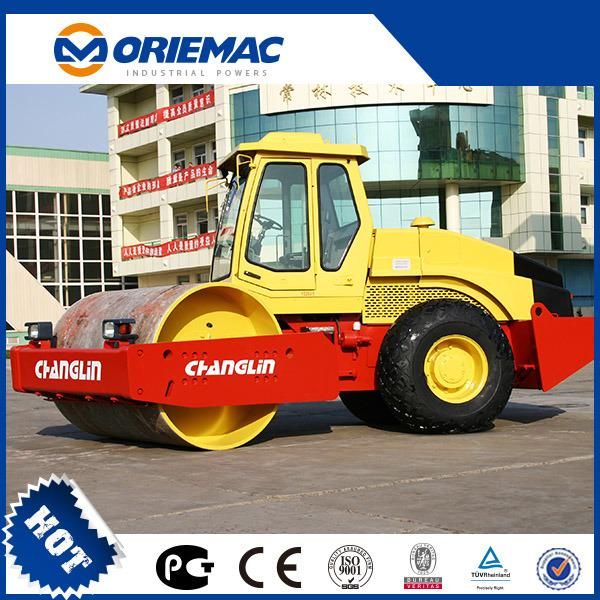

China Road Machine Sinomach Changlin 20 Ton Hydraulic Single Drum Compactor Ltd620h Road Roller
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Type：Road Roller
- Working Method：Vibration
- Axle：Uniaxial Monowheel
- Grinding Wheel Type：Light Grind
- Compaction Depth：40cm
- Engine Type：Diesel Engine
Base Info
- Model NO.：LTD620H
- Travel Speed：0-10.5km,H
- Centrifugal Force：30.5KN
- Certification：EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Color：Yellow
- Static Linear Pressure：600n,Cm
- Dimension(L*W*H)：6410X2350X3090 mm
- Wheel Base：3380 mm
- Operating Weight：20000 Kg
- Engine Model：6BTA5.9
- Min. Ground Clearance：472 mm
- Power(W)：132 Kw
- Frequency：28,35
- Transport Package：Nude, Suitable for Shiping
- Specification：ISO
- Trademark：Lutong
- Origin：Jiangsu, China
- Production Capacity：100 Sets,Month
Description
| Main Technical Parameters | ||||
| MODEL | LTD626H | LTD620H | LTD618H | |
| Operating mass | Kg | 26000 | 20000 | 18000 |
| Stactic linear load | N/cm | 796 | 600 | 540 |
| Vibrating amplitude | mm | 2.0/1.0 | 1.9/0.95 | 1.9/0.95 |
| Vibrating frequency | Hz | 28/35 | 28/35 | 28/35 |
| Centrifugal force | kN | 420/340 | 410/300 | 390/280 |
| Travel speed | km/h | 11 | 11 | 11 |
| Grade ability | % | 35 | 35 | 35 |
| Turning radius | mm | 7500 | 7500 | 7500 |
| Overall dimension | mm | 6540x2392x3048 | 6410x2350x3090 | 6410x2350 x3090 |
| Vibration round width | mm | 2100 | 2100 | 2100 |
| Wheelbase | mm | 3500 | 3380 | 3380 |
| Diesel model | 6CTA8.3 | 6BTA5.9 | 6BTA5.9 | |
| Diesel power | kW | 160 | 132 | 132 |
| Our products will be continuously improved with the progressing of the technique ,so please indic ate the difference between the listed param eters in the sample sheet and structure features,and take material object as the standard, | ||||
