• Model NO.：XS142J
• Travel Speed：35cm,s
• Centrifugal Force：30.5KN
• Certification：ISO 9001:2000, ISO 9001:2008
• Color：Yellow
• Static Linear Pressure：250~480kpa
• Dimension(L*W*H)：6222*2300*3200 mm
• Vibration Frequency：35 Hz
• Operating Weight：14000 Kg
• Engine Model：6btaa5.9-C170
• Wheelbase：3040 mm
• Power(W)：125 Kw
• Min. Ground Clearance：466 mm
• Transport Package：Nude, Suitable for Shiping
• Specification：ISO
• Trademark：XG
• Origin：Jiangsu, China
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. XS142J Travel Speed 35cm/s Centrifugal Force 30.5KN Certification ISO 9001:2000, ISO 9001:2008 Color Yellow Static Linear Pressure 250~480kpa Dimension(L*W*H) 6222*2300*3200 mm Vibration Frequency 35 Hz Operating Weight 14000 Kg Engine Model 6btaa5.9-C170 Wheelbase 3040 mm Power(W) 125 Kw Min. Ground Clearance 466 mm Transport Package Nude, Suitable for Shiping Specification ISO Trademark XG Origin Jiangsu, China Production Capacity 100 Sets/Month

Product Description

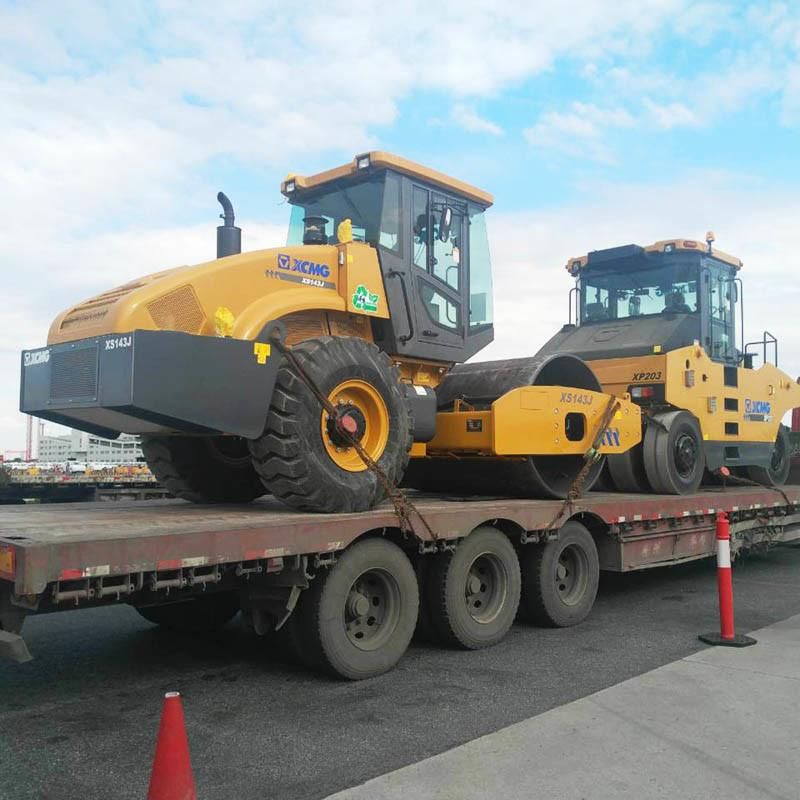

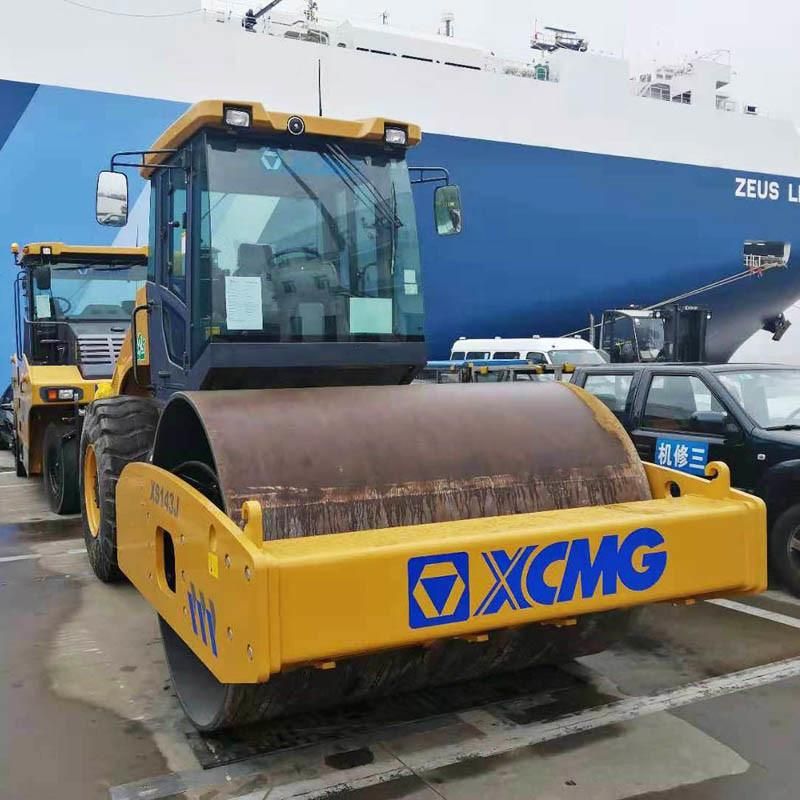

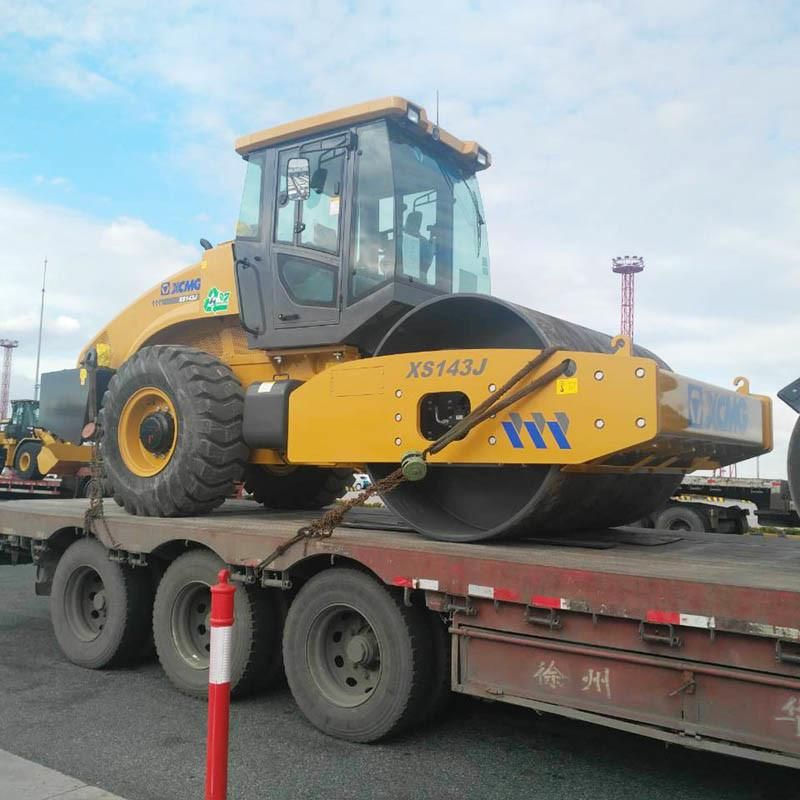

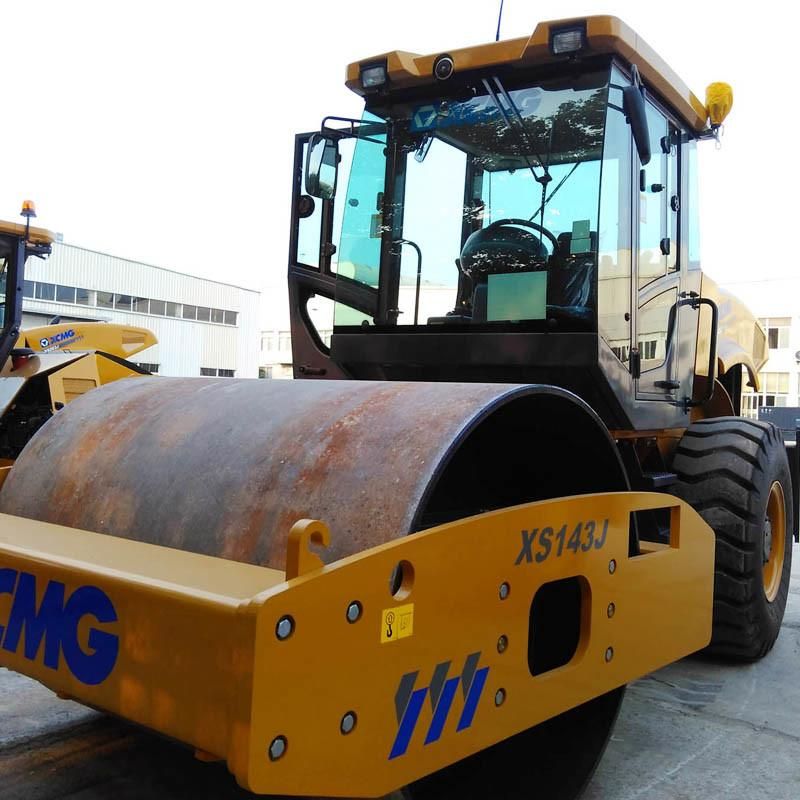

14 Ton Single Drum Road Roller XS143J for Sale

Features:
Oriemac construction machinery covers an astonishing range of equipment, including cranes, earth-moving machinery, road machinery, excavators, concrete machinery, mining machinery, piling machinery, lumber machinery, fire-fighting machinery, heavy trucks, sanitation machinery, agricultural machinery, and more. We have the world's most comprehensive product line, and offer customers complete solutions for construction equipment.  Our other businesses include finance, leasing, and remanufacturing.
Roller features:

Comfortable driving
ROPS driving cab is equipped with an air conditioner, radio and suspended chair. It has a bigger space and broad view inside.
Unique structure
Unique cylindrical drum structure features high rigidity and intensity. Short cylindrical bearing with high limited rotation speed provides high load - carrying capacity. The symmetrical arrangement of the right and left vibration chambers avoids the polarization of the vibratory drums.
Easy operation
According to the ergonomics theory, all meters, indicators and buttons are centered on the operation panel. The throttle handle and FWD/REV handle are put on the right side to improve the sense of comfort.
The failure diagnosis screen with alarms can avoid any unnecessary downtime.
The simple and easy lubrication mode ensures an extremely low failure rate of the lubricating system.
Oriemac is the first manufacturer to adopt the central engine for effortless maintenance.
Leading compacting performance
The unique hydraulic driving system design and heavy vibratory wheel weight make the Oriemac's roller highly advanced in compaction ability.
Heavy loaded drive axle and nonskid differential mechanism can furthest transfer the output power as well as the tractive force of engines.
Outstanding configuration
The key components are provided by international suppliers (hydraulic pump, motor, drive axle, vibratory bearing and rotating alarm lamp), it also has several engine models for selection to meet different working conditions and customer's needs.
Multiple functions
The split convex block drum (below 16t) and integral convex block drum (18-20t) can be selected according to the customer's requirement.
Easy maintenance
The aural and visual alarm device can timely provide the maintenance message to avoid the machine faults and to shorten the down time.
The self-opening engine shield makes the engine and hydraulic pump easy to access t
