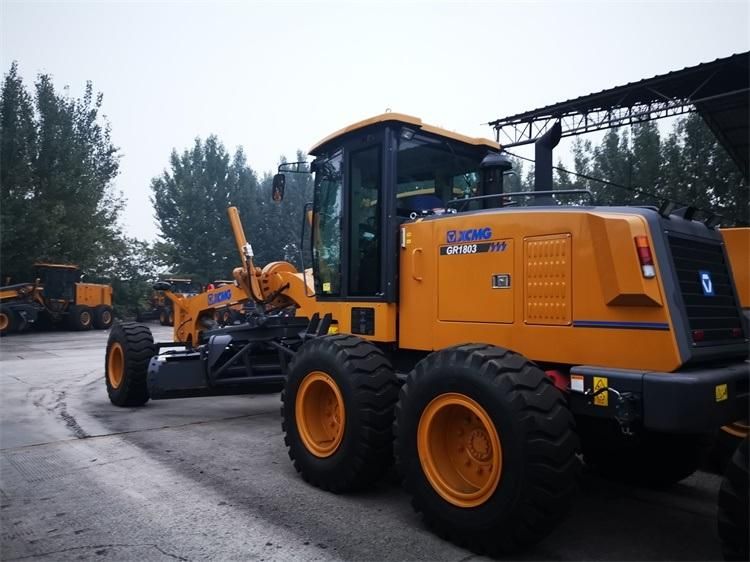

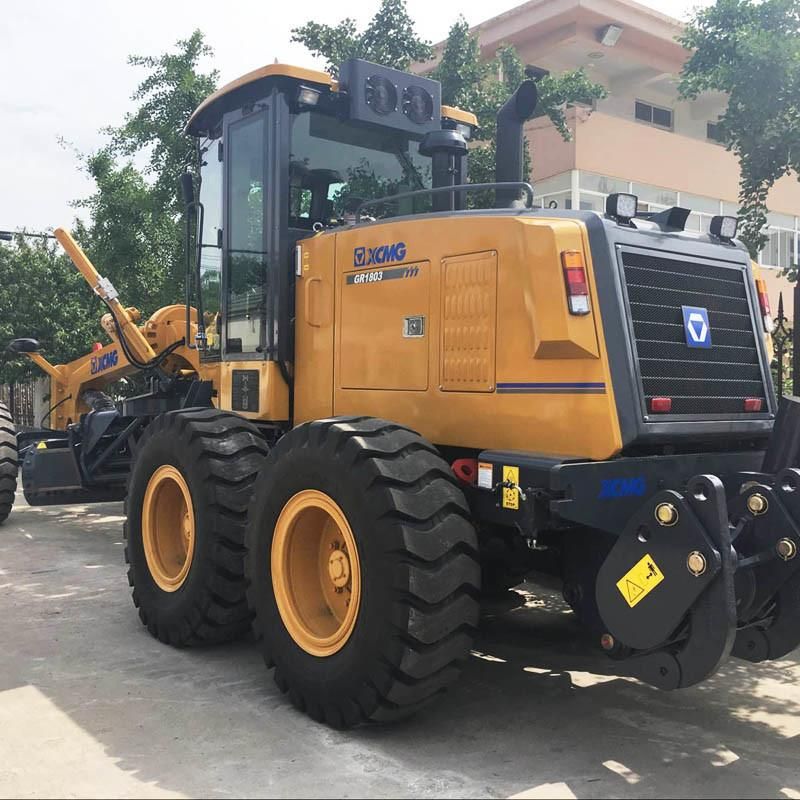

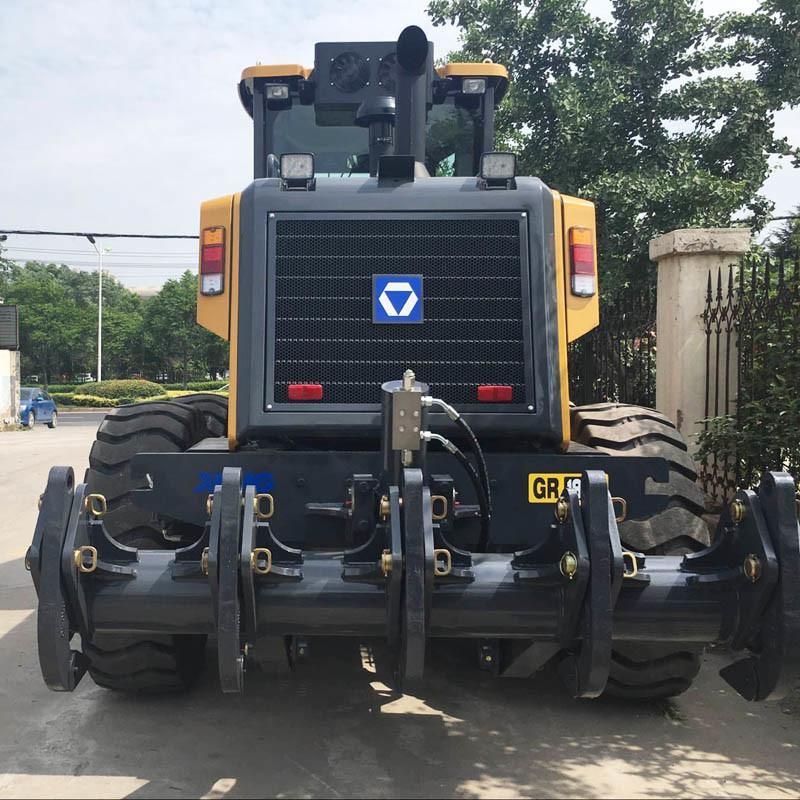

• Model NO.：GR1803
• Engine Model：6bt5.9
• Rated Power/Speed：100,2200kw,Rpm
• Dimension：8015*2380*3050mm
• Operating Weight(Standard)：11000kg
• Max. Gradeability：20%
• Travelling Speed ,Forward：5 8 13 20 30 42km,H
• Travelling Speed ,Reverse：5 13 30km,H
• Tractive Force(F=0.75)：61.3kn
• Transmission Pressure：1.3~1.8MPa
• Transport Package：Nude Packing
• Specification：CE, ISO
• Trademark：Oriemac
• Origin：Xuzhou, China
• HS Code：84292090
• Production Capacity：100 Units,Month

GR180

Engine rated power/rev

140kW/2200rpm

motor grader Dimension

8900×2625×3470mm

motor grader Weight

15400kg

Distribution weight of front wheel

4620kg

Distribution weight of rear wheel

10780kg

motor grader Min. clearance

430mm

Front and rear axle clearance

6219 mm

Front and rear axle clearance

1639mm

Max. steering angle of front wheel

±50°

Max. inclination angle of front wheel

±17°

Max. swing angle

±15°

Frame steering angle

±27°

Min. turning radius

7.3m

motor grader Traction

≥79kN

motor grader Gradeability

20%

motor grader Forward speed

5,8,11,19,23,38 km/h

motor grader Reverse speed

5,11,23 km/h

Blade

Max. lifting height

460mm

Max. Digging Depth

500mm

Max.inclination angle

90°

motor grader Cutting angle

28°-70°

Rotating angle

360°

Blade length × arc height

3965×610mm

Driving wheel no.
