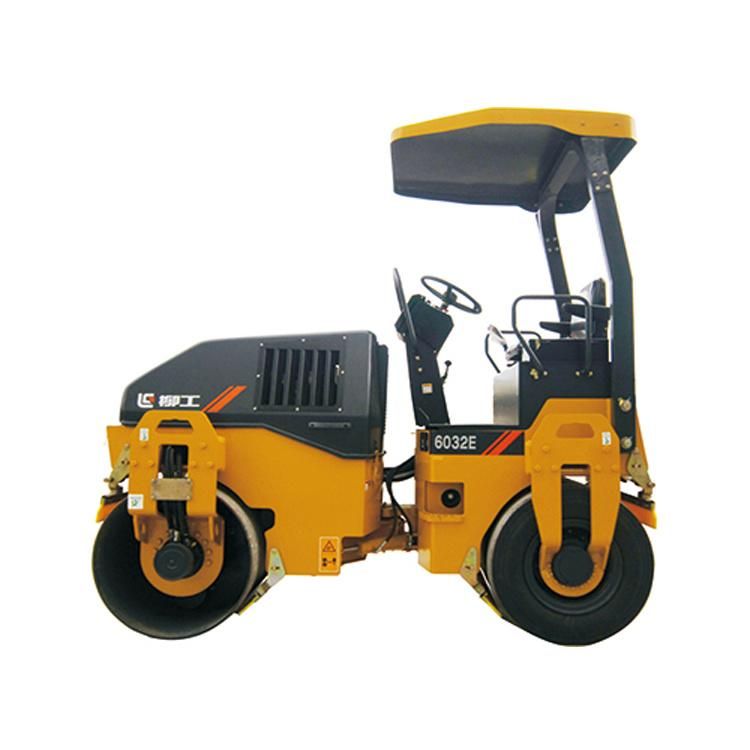

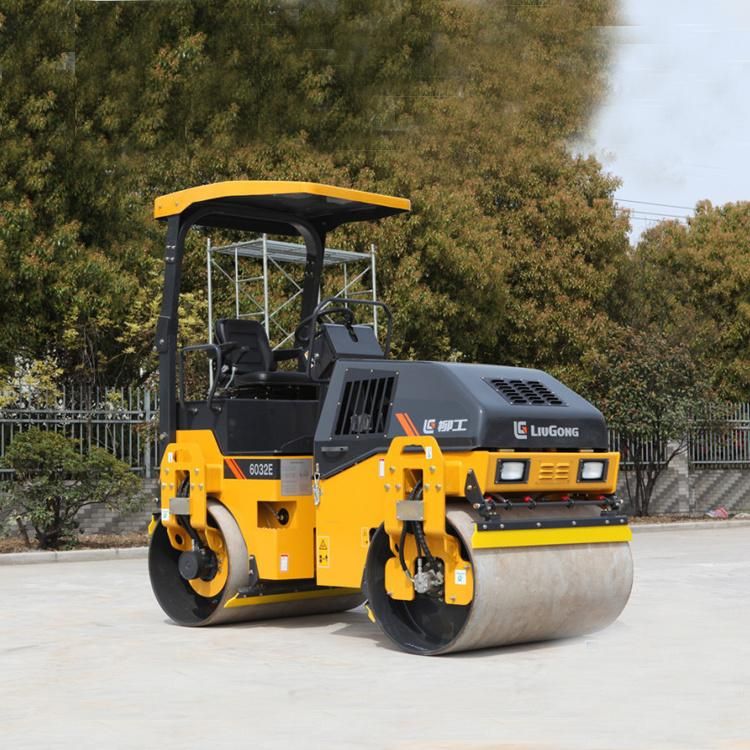

Famous Factoroy Liugong 3 Ton Double Road Roller

Maxizm Construction Machinery (Qingdao) Co., Ltd.

After-sales Service：1 Year
Warranty：1 Year
Type：Road Roller
Object：Cement Concrete Pavement
Moving Type：Mobile
Mixing Method：Intermittent Compulsory

Base Info

Model NO.：6032E
Automatic Grade：Automatic
Product Capacity：>400t,h
Certification：ISO9001: 2000, CE
Condition：New
Front Drum Static Linear Load：135 N,Cm
Rear Drum Static Linear Load：145 N,Cm
Rated Power：27.3 Kw (37 HP) @ 2600 Rpm
Vibration Frequency：60 Hz
Nominal Amplitude：0.45 mm
Centrifugal Force：33.5 Kn
Drum Diameter：750 mm
Drum Width：1200mm
Min. Ground Clearance：265 mm
Wheelbase：1860 mm
Min. Outside Turning Radius：4050mm
Transport Package：Nude
Specification：2610 mm*1310mm*2645mm
Trademark：Shantui
Origin：China
Production Capacity：5000

Description

Operating Mass3360 kgMass On Front Drum1620 kgMass On Rear Axle1740 kgFront Drum Static Linear Load135 N/cmRear Drum Static Linear Load145 N/cmModelPekins 403D-15TEmission RegulationStage IIIRated Power27.3 kW (37 hp) @ 2600 rpmVibration Frequency60 HzNominal Amplitude0.45 mmCentrifugal Force33.5 kNDrum Diameter750 mmDrum Width1200 mmN Maximum Speed fwd10 km/hTheoretical Gradeability30%Min. Ground Clearance265 mmWheelbase1860 mmMin. Outside Turning Radius4050 mmOverall Length2610 mmOverall Width1310 mmOverall Height2645 mm
