• Model NO.：L36-B3
• Load and Unload Mode：Front Discharge
• Walking Mode：Wheeled
• Type：Small Loader
• Transport Package：Nude
• Specification：As below
• Trademark：Shantui
• Origin：Hunan
• HS Code：842951000
• Production Capacity：1000 Pieces,Month

Basic Info.

Model NO. L36-B3 Load and Unload Mode Front Discharge Walking Mode Wheeled Type Small Loader Transport Package Nude Specification As below Trademark Shantui Origin Hunan HS Code 842951000 Production Capacity 1000 Pieces/Month

Product Description

Various brands and prices available, just send me inquiry, product list will be offered!!!

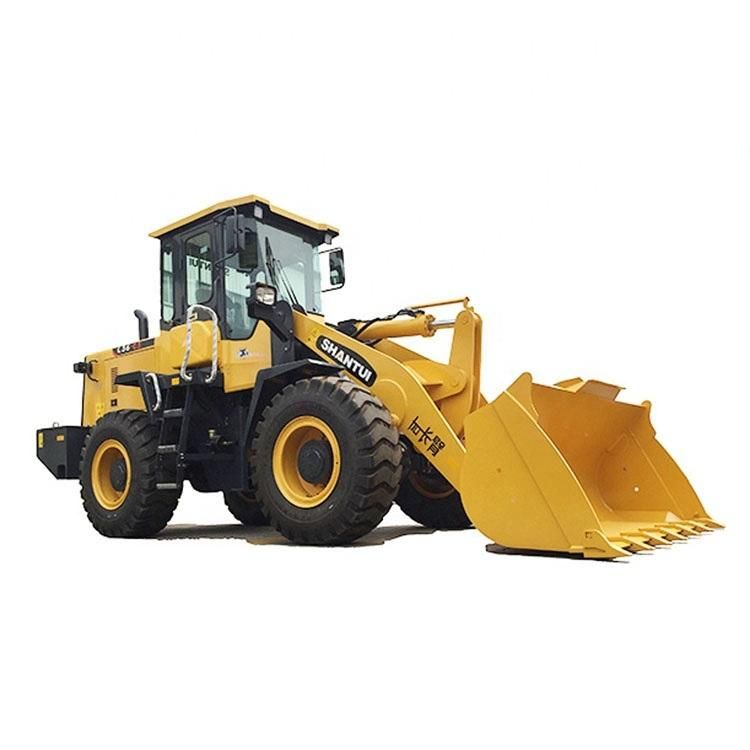

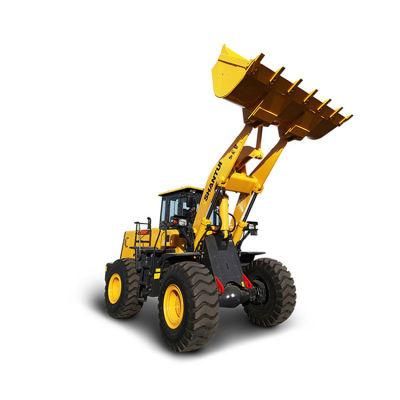

Ce/Iso Approved Mini Wheel Loader With Good Quality For Sale Power System

The drivetrain system of Weichai low-speed energy-saving engine + Shantui low-speed high-capacity torque converter + fixed shaft transmission features low fuel consumption, low malfunction rate, and high energy-saving and efficiency.

Parameter name	L36-B3 SG (Sandstone version)	L36-B3 CH (Coal version)	L36-B3 MH (Ore version)
Performance parameters
Operating weight (Kg)	10500	10500	10500
Maximum dumping height (mm)	3057 (Extended boom)3200 (Long boom)	3055 (Long boom)	3040 (Extended boom)
Dumping reach (mm)	906 (Extended boom)886 (Long boom)	1057 (Long boom)	936 (Extended boom)
Maximum breakout force (kN)	≥105	≥100	≥105
Total cycle time (s)	9	9	9
Engine
Engine model	WP6	WP6	WP6
Rated power/rated speed (kW/rpm)	92/2000	92/2000	92/2000
Overall dimensions
Overall dimensions of machine (mm)	7170*2484*3235	7350*2450*3235	7265*2490*3235
Driving performance
Forward speed (km/h)	F1:0-7, F2:0-12, F3:0-23, F4:0-37	F1:0-7, F2:0-12, F3:0-23, F4:0-37	F1:0-7, F2:0-12, F3:0-23, F4:0-37
Reversing speed (km/h)	R1:0-8.3, R2:0-28	R1:0-8.3, R2:0-28	R1:0-8.3, R2:0-28
Chassis System
Wheelbase (mm)	2700	2700	2700
Tank capacity
Fuel tank (L)	150	150	150
Working device
Rated bucket capacity (m³)	1.7	2.2	1.7
Rated loading capacity (t)	3	3	3
