• Model NO.：STR13
• Engine Power：74~147kw
• Certification：CE
• Condition：New
• Color：Yellow
• Transport Package：Nude
• Specification：As below
• Trademark：Shantui
• Origin：Hunan
• HS Code：8429119000
• Production Capacity：1000 Pieces,Month

Basic Info.

Model NO. STR13 Engine Power 74~147kw Certification CE Condition New Color Yellow Transport Package Nude Specification As below Trademark Shantui Origin Hunan HS Code 8429119000 Production Capacity 1000 Pieces/Month

Product Description

Various brands and prices available, just send me inquiry, product list will be offered!!!

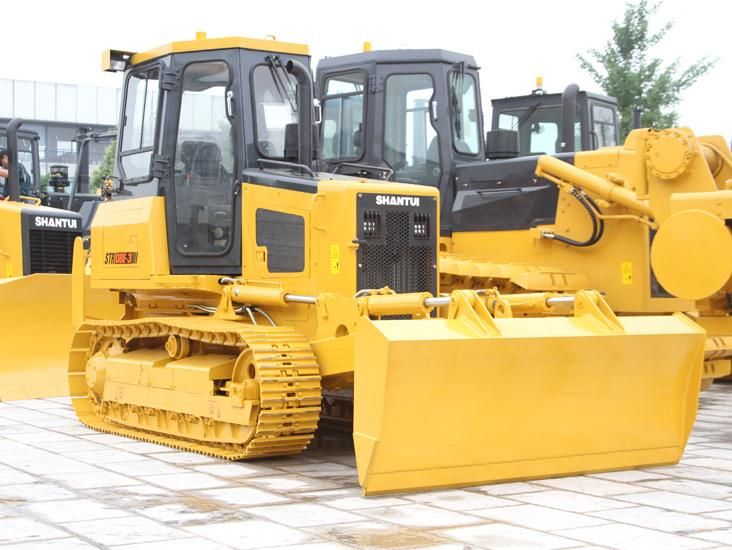

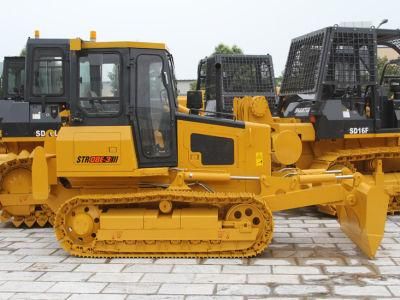

SHANTUI Trimming Bulldozer with 3 Shanks Ripper (STR13)Power System

The installed SC8DK electronically controlled engine conforms to the China-III non-road machinery emission regulation, featuring strong power, high efficiency and energy-saving, and low maintenance cost.

The rated power reaches 105kW, featuring high torque reserve coefficient.

The improved air filter and intake and exhaust system guarantee up to 99% filtration accuracy to effectively prolong the engine life.



Parameter name	STR13(Trimming bulldozer, ore version)
Performance parameters
Operating weight (Kg)	14500
Ground pressure (kPa)	56.9
Engine
Engine model	SC8DK
Rated power/rated speed (kW/rpm)	105/1900
Overall dimensions
Overall dimensions of machine (mm)	5470
Driving performance
Forward speed (km/h)	F1:0-3.2 F2:0-5.9 F3:0-9.8
Reversing speed (km/h)	R1:0-3.9 R2:0-7.1 R3:0-11.9
Chassis System
Center distance of track (mm)	1880
Width of track shoes (mm)	460
Ground length(mm)	2365
Tank capacity
Fuel tank (L)	300
Working device
Blade type	Trimming blade
Digging depth (mm)	710
Ripper type	-
Ripping depth (mm)	-



Construction Case Picture
