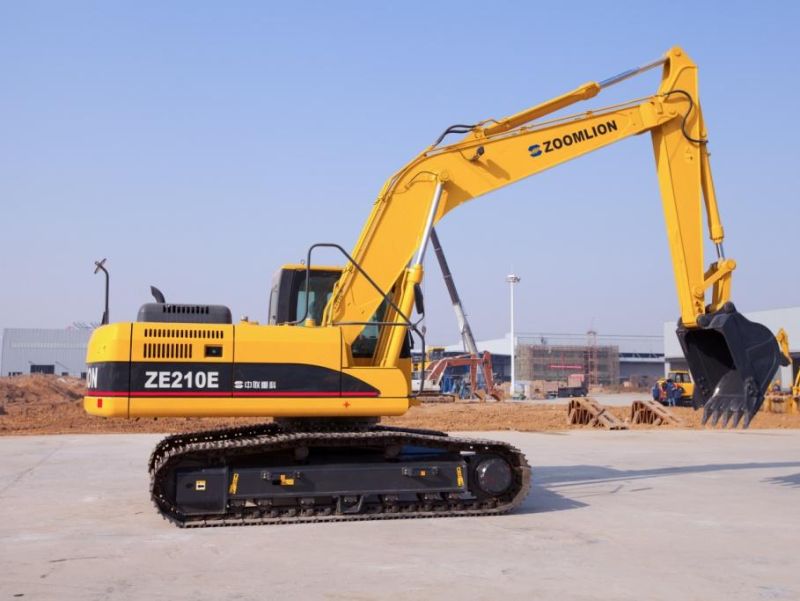

• Model NO.：ZE210E,ZE215E
• Drive Type：Electric Drive
• Bucket Capacity：0.5~1.0m³
• Size：Medium-Sized
• Certification：CE
• Condition：New
• Transport Package：Nude
• Specification：As below
• Trademark：Zoomlion
• Origin：Hunan
• HS Code：8429521200
• Production Capacity：1000 Pieces,Month

 ItemUnitZE215EKey    ParameterWorking masskg21800Rated powerkw/rpm112/1950Standard bucket capacity(SAE)m31.0System    flow
   (Max. pressure/ Max. flow)-

34.3/37.3 Mpa

2×206 L/min

Engine model-Cummins
   B5.9-C(150hp)Max. torqueN.m/rpm614/1500Traveling speed (low/high)km/h3.3/5.5Slewing speedrpm11.5Gradeability°°35°Max.  drawbar pullkN192Digging force of bucket (ISO)kN157Digging force of stick (ISO)kN110Basic    ParameterSlewing radius of tailmm2840Tail lengthmm2800Counterweight ground clearancemm1050Min. ground clearancemm440Ground contact lengthmm3380Track lengthmm4180Track gaugemm2200Track widthmm2800Track shoe widthmm500~800Height of cab(mm)mm2990Slewing table widthmm2720Operating    RangeMax. excavating radiusmm9830Max. excavating distancemm9650Max. excavating heightmm9615Max. discharging heightmm6785Max. excavating depthmm6610Max. vertical excavating depthmm5760Min. slewing radius of frontmm3290





Construction Case Picture
