• Model NO.：DH13-K2
• Engine Power：74~147kw
• Certification：CE
• Condition：New
• Color：Yellow
• Transport Package：Nude
• Specification：As below
• Trademark：Shantui
• Origin：Hunan
• HS Code：8429119000
• Production Capacity：1000 Pieces,Month

Basic Info.

Model NO. DH13-K2 Engine Power 74~147kw Certification CE Condition New Color Yellow Transport Package Nude Specification As below Trademark Shantui Origin Hunan HS Code 8429119000 Production Capacity 1000 Pieces/Month

Product Description

Various brands and prices available, just send me inquiry, product list will be offered!!!

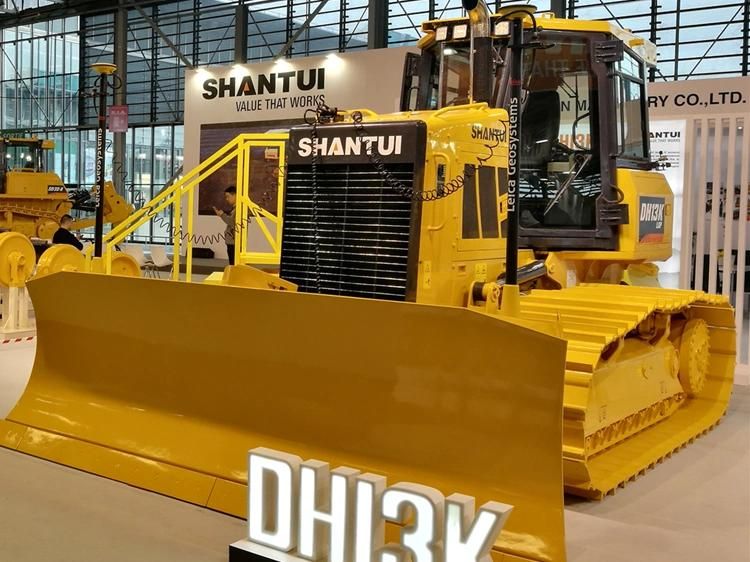

Hot Sale Shantui New Crawler Bulldozer (DH13-K2)Power System

The installed N67 electronic control engine conforms to the EPA Tier4final/EU Stage IV emission regulation, featuring stronger power and higher energy-saving and environmental-friendliness. The after-treatment system adopts FPT's unique HI-eSCR technology, requiring no external EGR. The 600h oil maintenance interval reduces the maintenance costs.

The Shantui's innovative hydrostatic drive optimization technology is applied to achieve higher efficiency and energy-saving. The multiple operating modes are at the user's choice depending on the load of actual working condition to realize the reasonable match among power, efficiency, and energy consumption.

Standard mode - It can provide strong power performance and excellent operating control performance for the operator.

Power mode - It can provide stronger power performance to meet your higher needs for heavy-load condition.

Economic mode - Under medium-load/light-load condition, it can run the engine at relatively low speed to thus remarkably reduce the fuel consumption. Meanwhile, in event of power need, it can quickly increase the speed to save the fuel by 5%~20%. The specific condition depends on the application condition.

The air suction type temperature controlled fan incorporates the reverse self-cleaning function, featuring high efficiency and energy-saving.

Parameter name	DH13-K2 XL (Extended version)	DH13-K2 LGP(Super-wetland version)
Performance parameters
Operating weight (Kg)	14200kg/31306lb (With traction frame)	14800kg/32628lb (With traction frame)
Ground pressure (kPa)	48	36.9
Engine
Engine model	N67	N67
Rated power/rated speed (kW/rpm)	118/2200	118/2200
Overall dimensions
Overall dimensions of machine (mm)	5010*3380*3110	5010*3680*3110
Driving performance
Forward speed (km/h)	0~10km/h(6.2mph)	0~10km/h(6.2mph)
Reversing speed (km/h)	0~10km/h(6.2mph)	0~10km/h(6.2mph)
Chassis System
Center distance of track (mm)	1930	2150
Width of track shoes (mm)	560	760
Ground length(mm)	2640	2640
Tank capacity
Fuel tank (L)	263	263
Working device
Blade type	Angle Blade	Angle Blade
Digging depth (mm)	460	460
Ripper type	Three-tooth ripper	Three-tooth ripper
Ripping depth (mm)	500	500



Construction Case Picture
