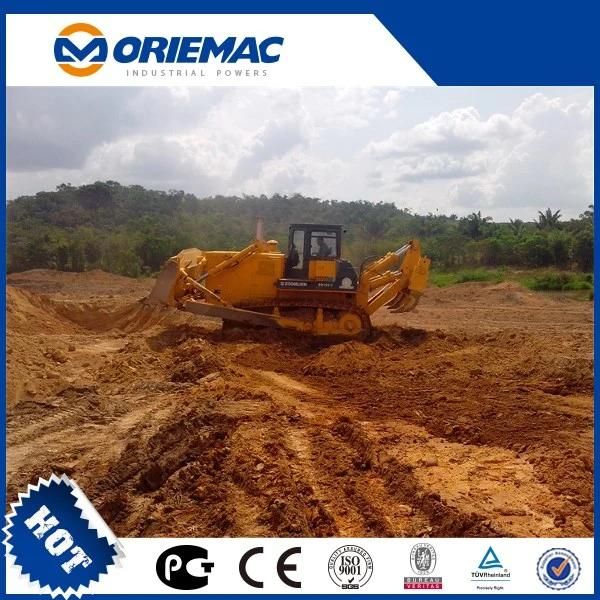

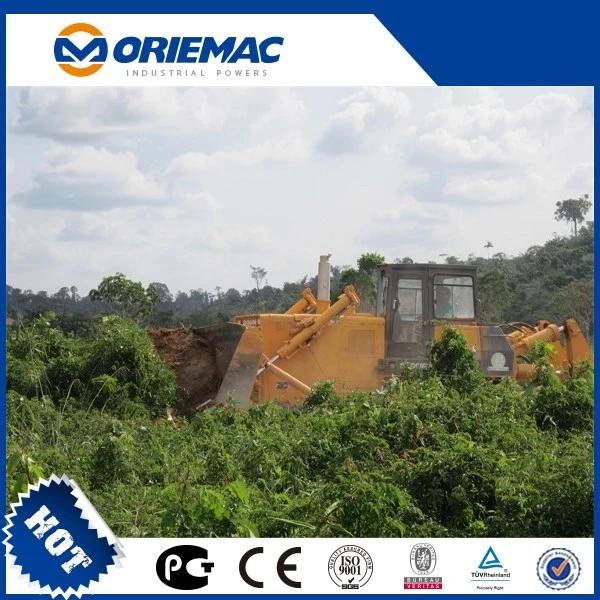

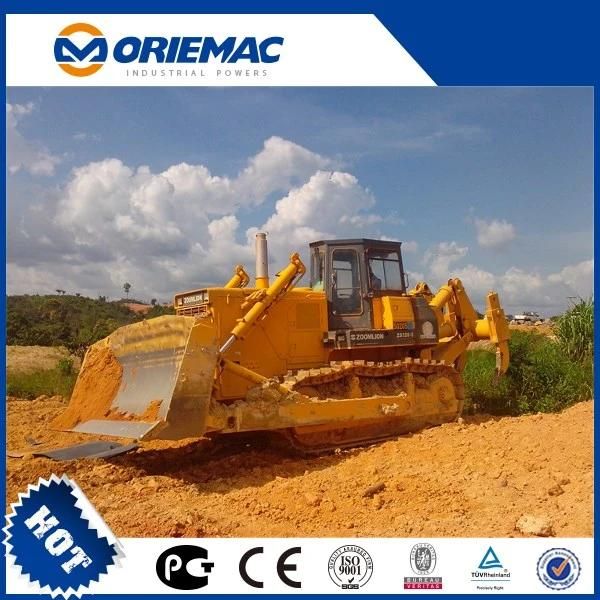

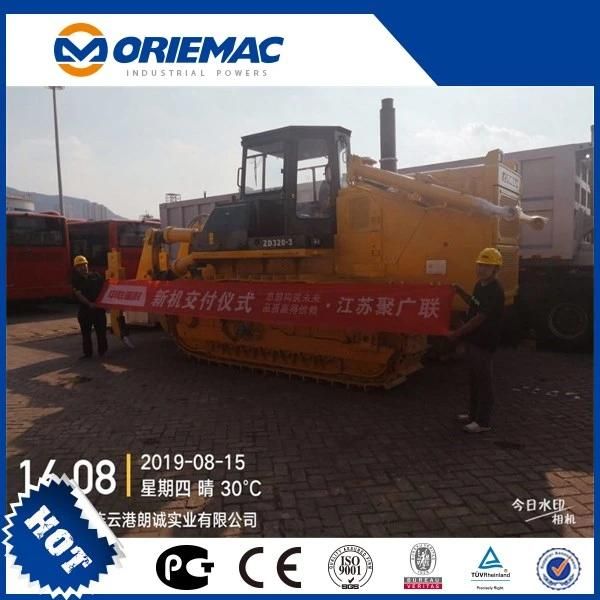

New Zoomlion 320HP Zd320-3 Bulldozer with 3 Shank Rippers

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • After-sales Service：Oversea
  • Warranty：1 Year
  • Type：Universal Type
  • Transmission：Hydraulic Transmission
  • Walking Mode：Crawler
  • Load and Unload Method：Front Discharge

Base Info

  • Model NO.：ZD320-3
  • Engine Power：147~515kw
  • Certification：ISO9001: 2000
  • Condition：New
  • Color：Blue
  • Blade Type：Tilt Blade
  • Engine Model：Wd10g178e25;131kw
  • Track Shoe Width：510mm
  • Transport Package：Nude Packing
  • Specification：9570*2800*3140mm
  • Trademark：ZOOMLION
  • Origin：China
  • HS Code：87051092
  • Production Capacity：100 Units,Month

Description

Key    Technical ParameterBlade type-Semi-U BladeWorking masskg35044Blade capacitym311.6Engine model-NTA855-C360Rated power/Slewing speedkW/rpm257Max. torqueN.m/rpm1509/1400Min. fuel consumptiong/kW.h242Max. Drawbar pullKn302Ground pressurekPa106Gradeability°°30Traveling speed of forwardkm/h3.6/6.6/11.5Traveling speed of Reversekm/h4.4/7.8/13.5Basic    Technical ParameterHeight of cabmm3600Height of ROPSmm3687Ground contact lengthmm3150Height of blademm1705Track center distancemm2140Height of grousermm80Track shoe widthmm560Operating    RangeMax. lift height of dozermm1560Max. drop depthmm560Max. lift height of rippermmsingle-shank 960
   multi-shank 890Max. ripping depth of rippermmsingle-shank 1235
   multi-shank835Max. tiltmm1000New Zoomlion 320HP Zd320-3 Bulldozer with 3 Shank Rippers
New Zoomlion 320HP Zd320-3 Bulldozer with 3 Shank Rippers
New Zoomlion 320HP Zd320-3 Bulldozer with 3 Shank Rippers
New Zoomlion 320HP Zd320-3 Bulldozer with 3 Shank Rippers
